| size | 10" Chuck | 10" Chuck |
| Swing | 30" | 762 mm |
| Machining Length | 32" | 812.8 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 17" | 431.8 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

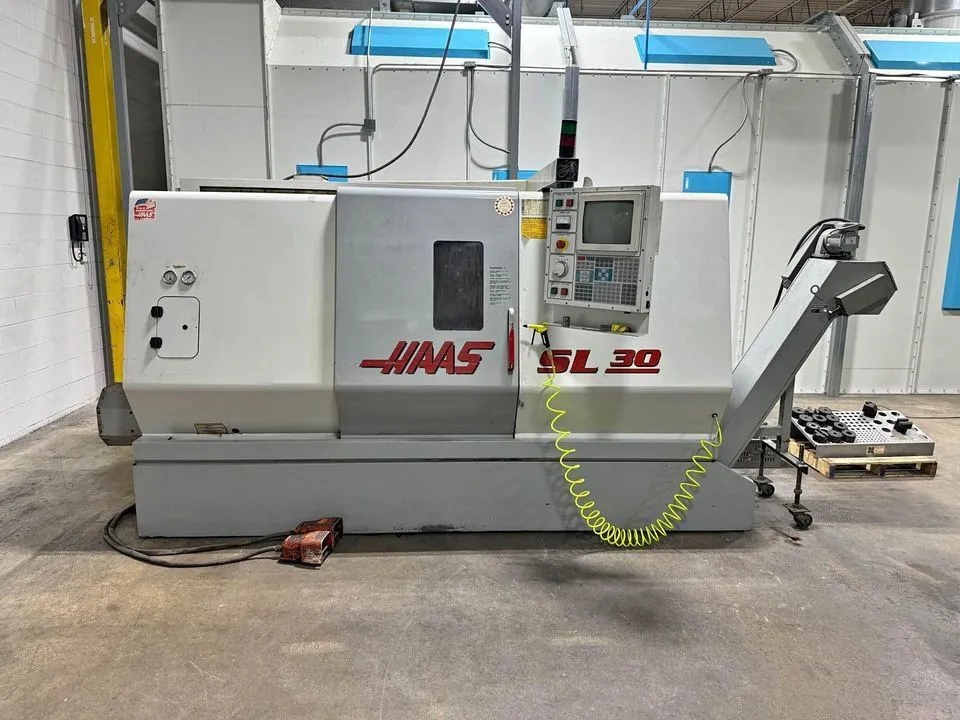

Haas SL30T CNC Lathe
Chuck: 10"
thru hole: 3"
Chuck Size 10″ Hydraulic Chuck 3-Jaw
Maximum Swing Over Apron: 30"
Maximum Swing Over Cross Slide: 14.5"
Maximum Cutting Diameter: 17"
Maximum Turning Length: 34"
Distance Between Centers: 39"
X-Axis Travel: 11.3"
Z-Axis Travel: 34"
Spindle Speed: 3,400 RPM
Spindle Motor: 30HP
Turret Type: 12 Positions Bolt on Type
Tailstock Travel: 33.5"
Rapid Traverse Rates: 710-IPM
Electrical: 208/230V, 3ph
Machine Dimensions: 161" x 77" x 74"
Approximate machine Weight: 13,900Lbs
