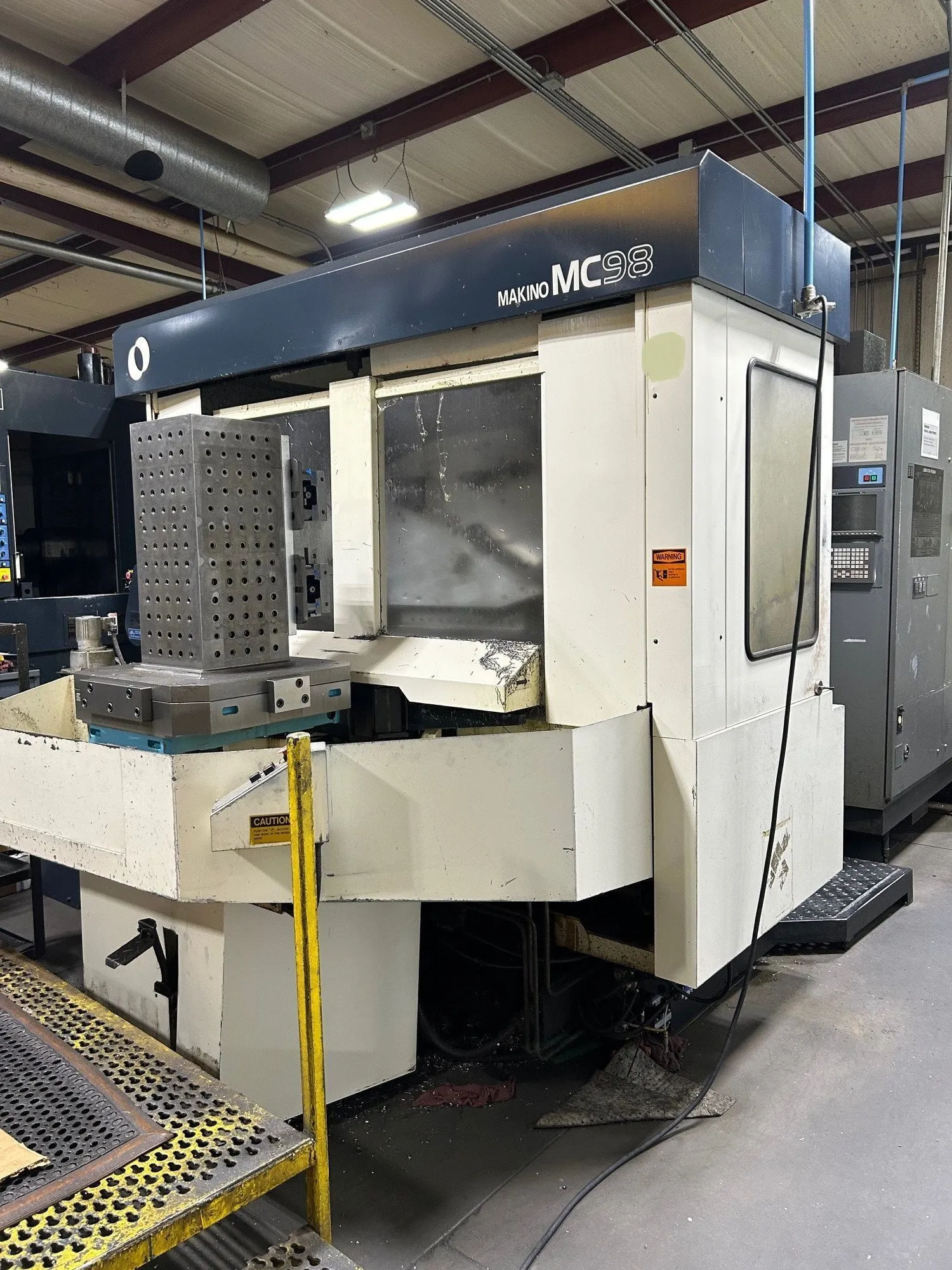

2001 Makino MC98-A60 Horizontal Machining Center with Pro 3 Control, Full 4th Axis, 60 ATC, and 4,000 RPM, CAT-50 Spindle.
| X | 36" | 914.4 mm |
| Y | 32" | 812.8 mm |
| Z | 29.5" | 749.3 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| # ATC | 60 | 60 |
| Taper | 50 | 50 |
| Pallet-W | 24.8" | 629.92 mm |
| Pallet-L | 24.8" | 629.92 mm |
| # Axis | 4 | 4 |
| Control | CNC (Makino Professional 3 (Fanuc 16iM) Control) | CNC (Makino Professional 3 (Fanuc 16iM) Control) |
| Dimensions | 207" x 160" x 119" | 207" x 160" x 119" |
| Weight | 32,000 LBS | 32,000 LBS |
Pallet Size.................24.8" X 24.8"
Maximum Pallet Load.........2860 LBS
X-Axis Travel...............36"
Y-Axis Travel...............31.9"
Z-Axis Travel...............29.5"
B-Axis Indexing.............0.001"
Spindle Motor...............25 HP
Spindle Taper...............CAT-50
Spindle Speed...............4,000 RPM
Number of Tools.............60 ATC
Feed Range..................0.04 - 160 IPM
Rapid Traverse..............600 IPM
Machine Dimensions..........207" x 160" x 119"
Machine Weight..............32,000 LBS
Makino Pro 3 CNC Control w/Color CRT
4,000 RPM, CAT-50 Spindle
Full 4th Axis
60 Station ATC
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
