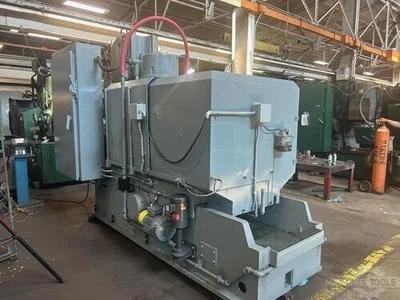

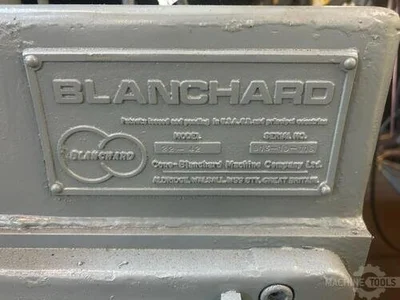

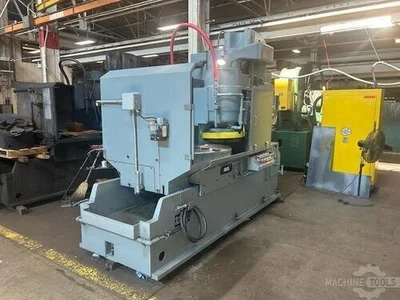

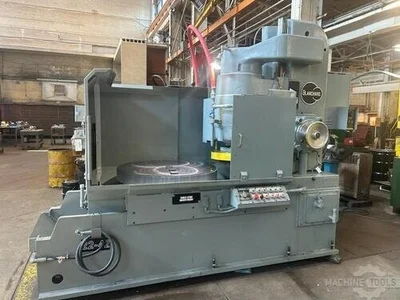

Partial Rebuilt Blanchard #22-42 Vertical Spindle Rotary Surface Grinder, Serial # B13-10-116
| Chuck Size | 42" | 1,066.8 mm |
| Horz/Vert | Vert | Vert |
| Power | 40 hp | 29.8 kW |
| Swing | 48" | 1,219.2 mm |
| Under Wheel | 24" | 609.6 mm |
| Grinding Wheel Width | 22" | 558.8 mm |
| Grinding Wheel Dia. | 22" | 558.8 mm |
Chuck Dia.: No Specs Attached inches
Spindle (Horz/Vert): No Specs Attached
Power: No Specs Attached horsepower
Swing: No Specs Attached inches
Under Wheel: No Specs Attached inches
Grinding Wheel Width: No Specs Attached inches
Grinding Wheel Dia.: No Specs Attached inches
CNC Control: No Specs Attached
Type of CNC Control: No Specs Attached
Dimensions: No Specs Attached
Weight: No Specs Attached ounces
Table Speeds: No Specs Attached
Table Motor Horsepower: No Specs Attached horsepower

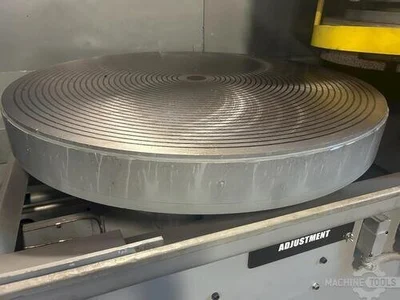

42" Magnetic Chuck Diameter, approx. 1/2" Chuck Life22" Diameter of Wheel Chuck, Segmented Style18" Vertical Travel(6) Ranges of Chuck Speeds 6, 9, 12, 18, 25, 33 RPMFeed .004 - .080 IPM50 HP - 3 Phase , 60 Cycle, 480VFloor Space: 129"L x 60"WHeight: 7'1" Min., 8'2" Approx. MaxAppr0x. 14,500 lbs. Scope of Work:
Installed New Grease Lune PumpUpgrade Electrical Panel for Lube SystemAdded Light to the HoodNew Load MeterReplaced Electrical ConduitUpgraded Electrical Boxes for ConduitAll New Lube LinesRebuilt Main Spindle CompleteRemove & Adjust Upper Feed BoxInspected and Cleaned Saddle TransmissionAll New Coolant Lines and Ross ValveNew Coolant PumpNew Lube Pump for SaddleNew Machine WaysHand Scrape Saddle to WaysHand Scrape Table to MagnetRebuilt Pinion & Bevel Gear Set for SaddleReworked & Replaced Some Water GuardsRepaired Dresser Arm AssemblyNew Leveling PadsCleaned & PaintTram Head to Table8 Hour Test RunGrind Flat Parts
