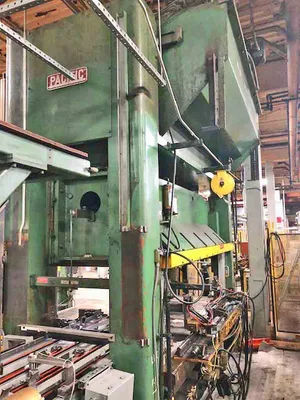

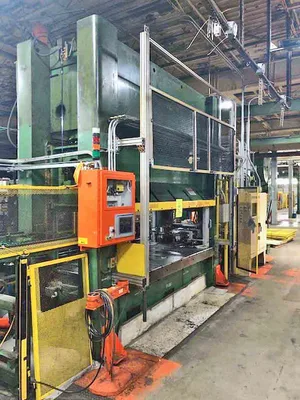

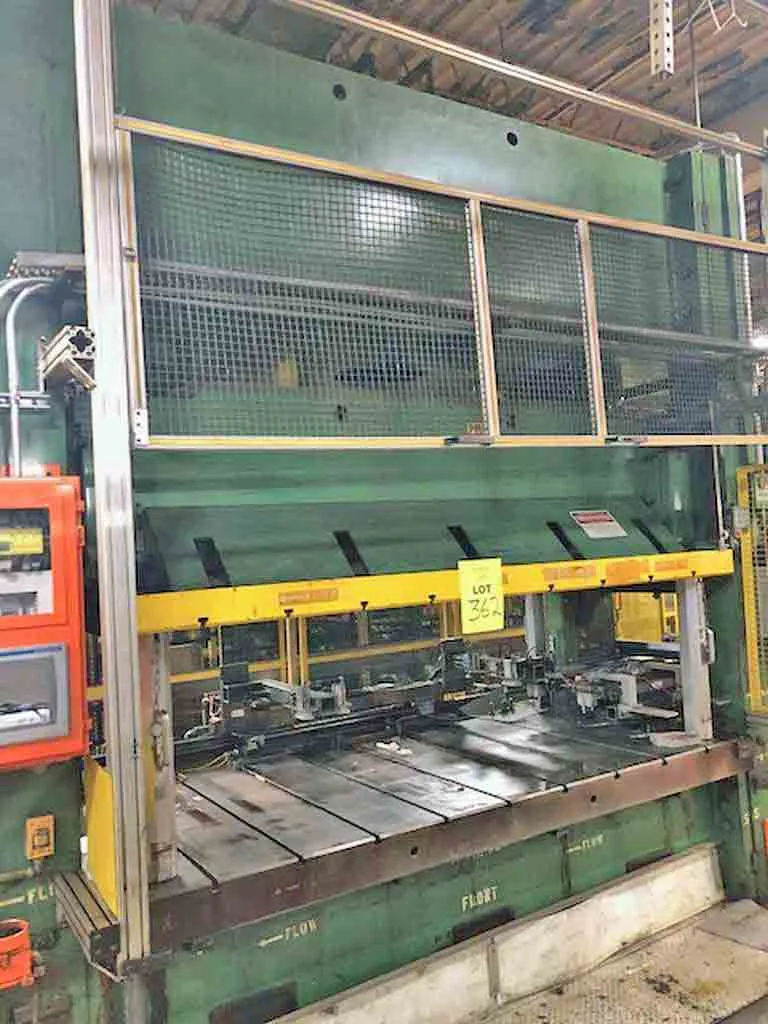

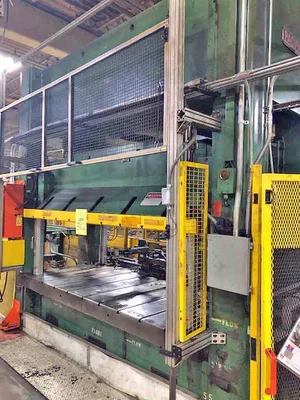

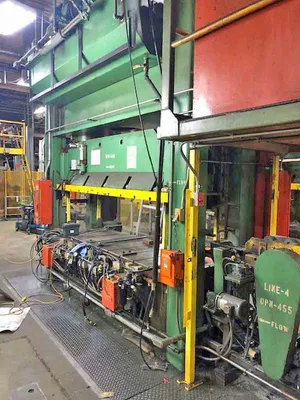

USED 1979 PACIFIC 300-D-10-60

YEAR: 1979
-Model: 300-D-10-60

300 Ton Pacific Downstroke Self Contained Hydraulic Press
Housing Type - Gib Guided - Dual Cylinder - "T-Slotted" Bed and Slide

Bed Area (Nominal): 123" L-R x 60" F-B (T-Slotted F-B)
Slide Area (Nominal): 123" L-R x 60" F-B (T-Slotted F-B)
Distance Between Housing: 28" L-R
Stroke of Gib Guided Slide: 0" - 18" Max.
Daylight Opening: 33" Max.
Speeds Approx.: 215 IPM Fast Closing
80 IPM Slow Close
25 IPM Pressing
48 IPM Show Return
132 IPM Fast Return
Power Unit (Top Rear): 40 HP 460 / 3 / 60 Motor Driving Hydraulic Unit

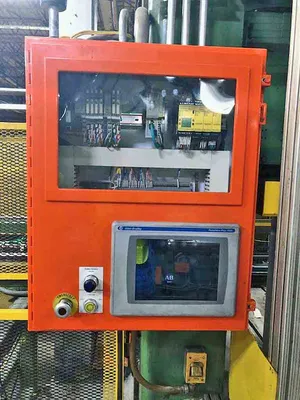

Controls: Push Button Operation with Stroke, Pressure and
Speed Control. Allen Bradley PLC added in 2000.
Light Curtains
Weight Approx.: 73,000 lbs.

-In Storage: Toledo, OH
