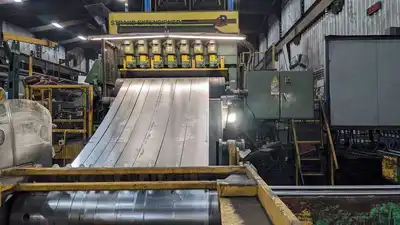

60" x 7.00" x 50,000# Cincinnati/Herr Voss Slitting Line

-Rated: Hot & Cold Galv. Steel
-Width: 60"
-Maximum Weight: 50,000 lbs.
-Input Coils:
Inside Diameter: 15" to 39"
Outside Diameter: 72" Maximum
-Material Thickness: 0.011" - 0.135"
-Line Speed: 570 FPM (Gear, Low)
970 FPM (Gear, High)
1600 FPM Max.
-Line Direction: Right to Left

Equipped with the following:

-Entry Coil Staging Platform
Capacity for (2) Coils

-Entry Coil Lift

-Cone Type Uncoiler
Capacity: 50,000 lbs.
40 HP AC Motor Feed-Up on each Head
Disc Brakes
Holddown Roll

-Peeler Table
Entry Pinch Rolls
Entry Side Guides
Entry Crop Shear

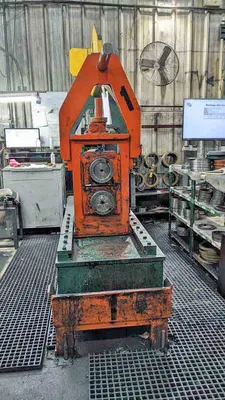

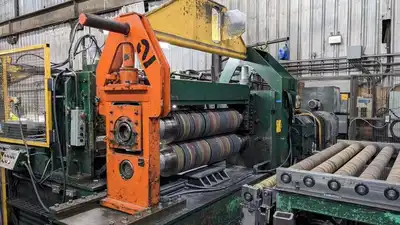

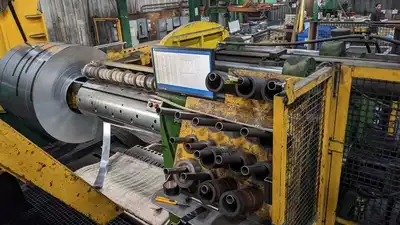

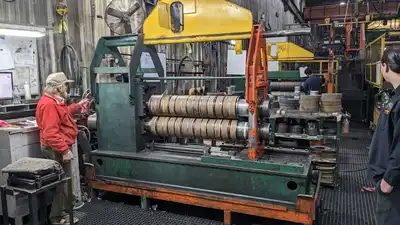

-(2) Slitter Heads: Cincinnati
Crane Type Removable Heads
7" Dia. Arbors
DC Drive Motor

-(2) Scrap Winders

-Looping Pit

-Drag Board Style Tension Stand

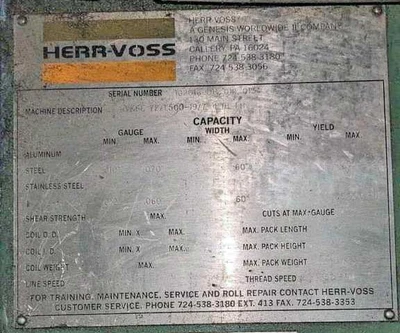

-Herr Voss Strand Extensioner
72/1.500-19/7 4 HI
Max Capacity in Mild Steel - 0.070" thick
1.50" Dia. x 72" face Rolls
19 Work Rolls
7 Flights of Motorized Backups
200 HP DC Motor, rebuilt 2019

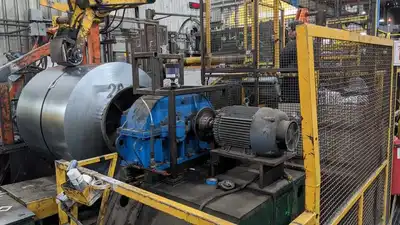

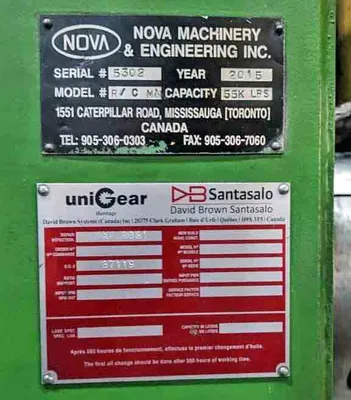

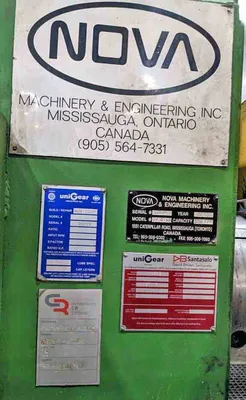

-Recoiler: Nova, New in 2015
Capacity: 55,000 lbs.
20" Dia. Drum
Hydraulic Grip and Expand
Hydraulic Push Off
2 Speed Reducer
200 HP DC Motor

-Free Standing Overarm Separator:

-Exit Coil Car:

-4 Arm Turnstile:
Powered Rotation
Pull Off Device

-Downlayer
In-Line Discharge

-Banding Table
Semi-Automatic Banding Head

-Automatic Stacker
O.D. Grab

-Lazy Susan Sort Table
(6) Stacking Positions
Powered Horizontal Rotation

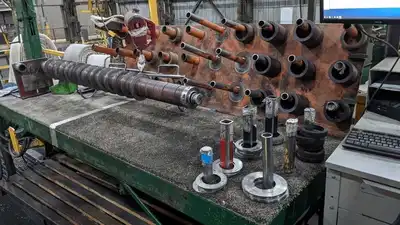

-Slitter Tooling Included

-Slitting Line is in operation.
