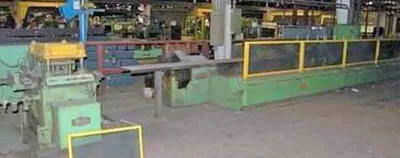

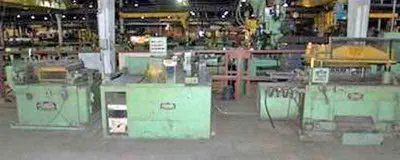

Yoder Cee Purlin Tooled, Gear Driven Rollforming Line
-Number of Stands: 9 (on 16 Stand Base)
-Roll Space: 24"
-Arbor Diameter: 3"
-Arbor Center to Center Distance: 17"
-Upper Arbor Adjustment: 5"
-Upper & Lower Power Driven Arbors
-75 HP Main Motor
-8" W x 3" Flange "Cee Purlin" Tooling
-9" W x 3" Flange "Cee Purlin" Tooling
Consisting of the following:

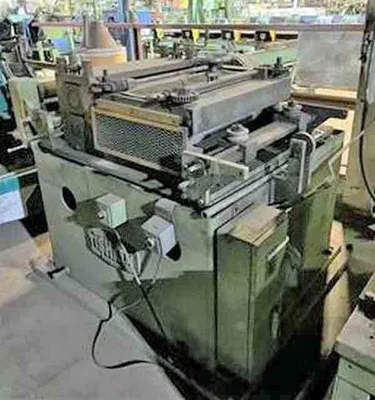

-Tishken 7R-24 Straightener:
Serial #17092-79
18" x 0.105" capacity
Number of Rolls: 7 (3 over 4)
Power Driven Pinch Rolls
Entry side guides

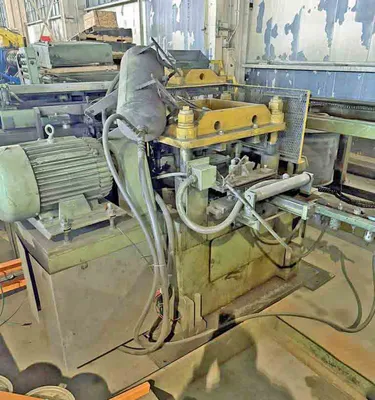

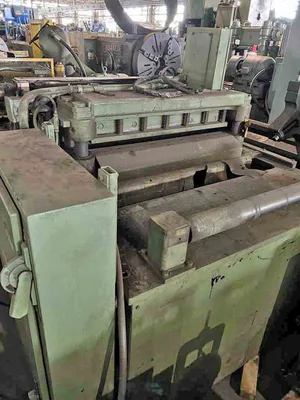

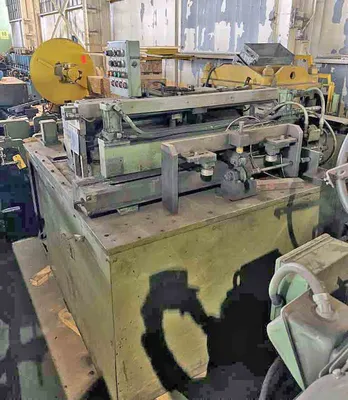

-Lee Shaffer Shear End Welder:
Model: H70F
36" max strip width
Hydraulic double cut crop shear
Hydraulic clamp and push
Auto weld cycle
-Tishken Measuring Roll Stand:

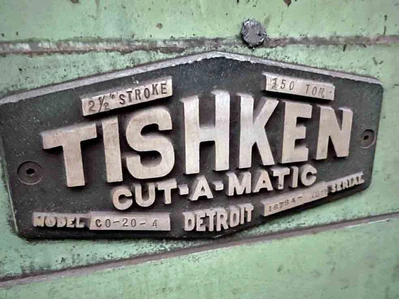

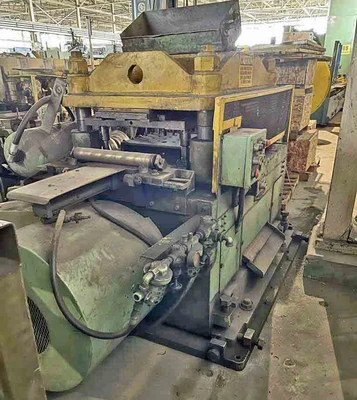

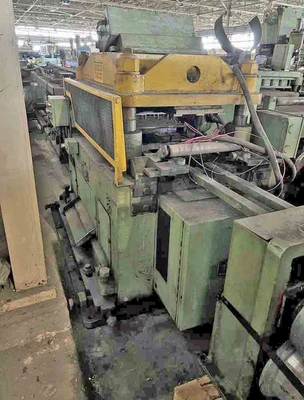

-Tishken Cut-A-Matic:
Capcity: 150 Tons
Model: CO-20-4
S/N: 16764-1179
4 Post Pre Punch and Notch Press
Adjustable locating holes in the die for punches and notches
Air Clutch
Adjustable mounting base

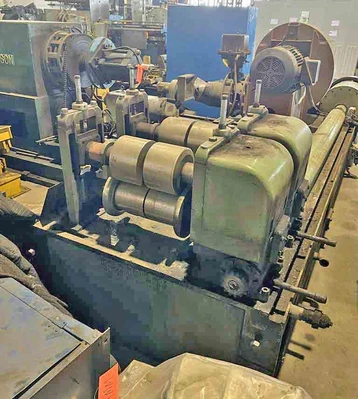

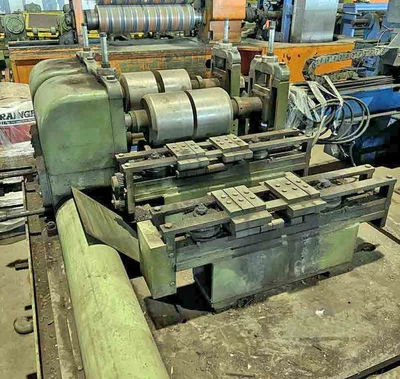

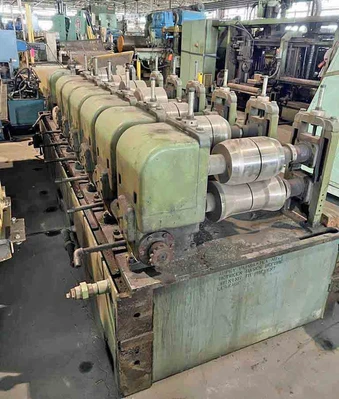

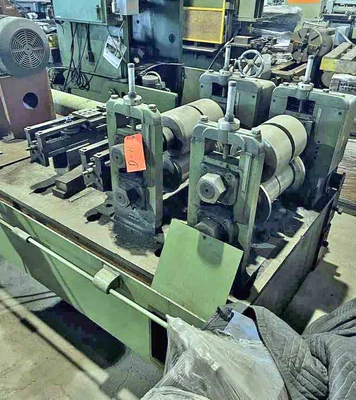

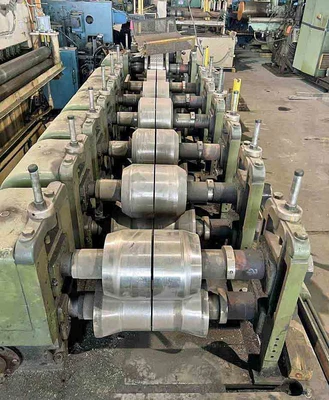

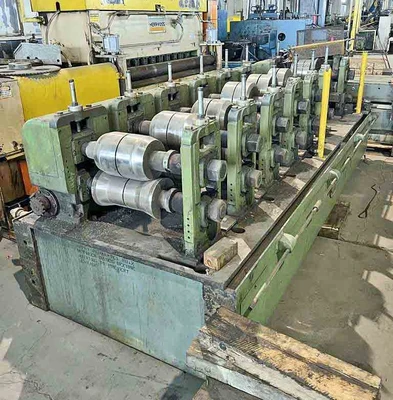

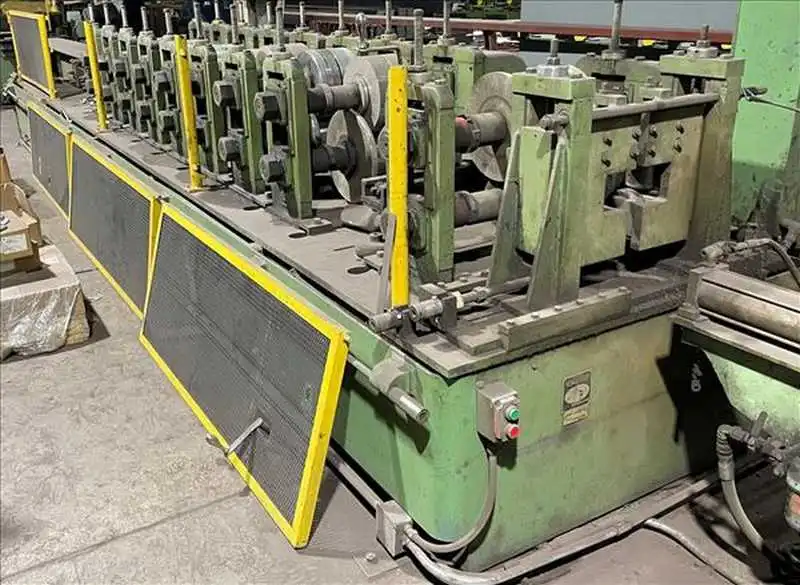

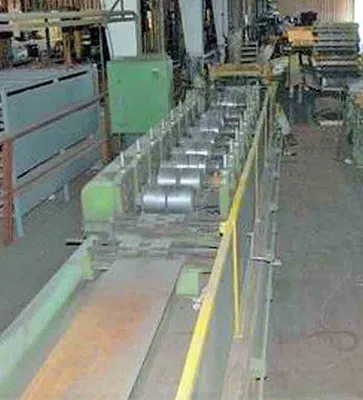

-Yoder Rollformer: M 2-1/2 S
9 stands on 2 separate bases
one 7 stand base with 2 stands, and 2 side guide stands
one 8 stand base with 7 stands, and exit straightening fixture
3" dia. tooling arbor
24" Roll Space
5.5" to 10" Vertical adjustment
18" Horizonal centers
8.5" base to CL of bottom shaft

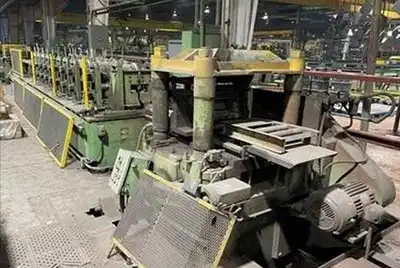

-Tishken Cut-A-Matic Cutoff Press:
Capacity: 60 Tons
Model: CO-20-18-60
S/N: 17230-1179
Stroke: 2.5"
AC Drive Motor
Air Clutch
Mounting Base
-Controls, and Operators Desk
-All tooling and spacers to produce C Purlins
-Drawings, manuals and tooling drawings
-Removed and in Storage; Toledo, OH.
