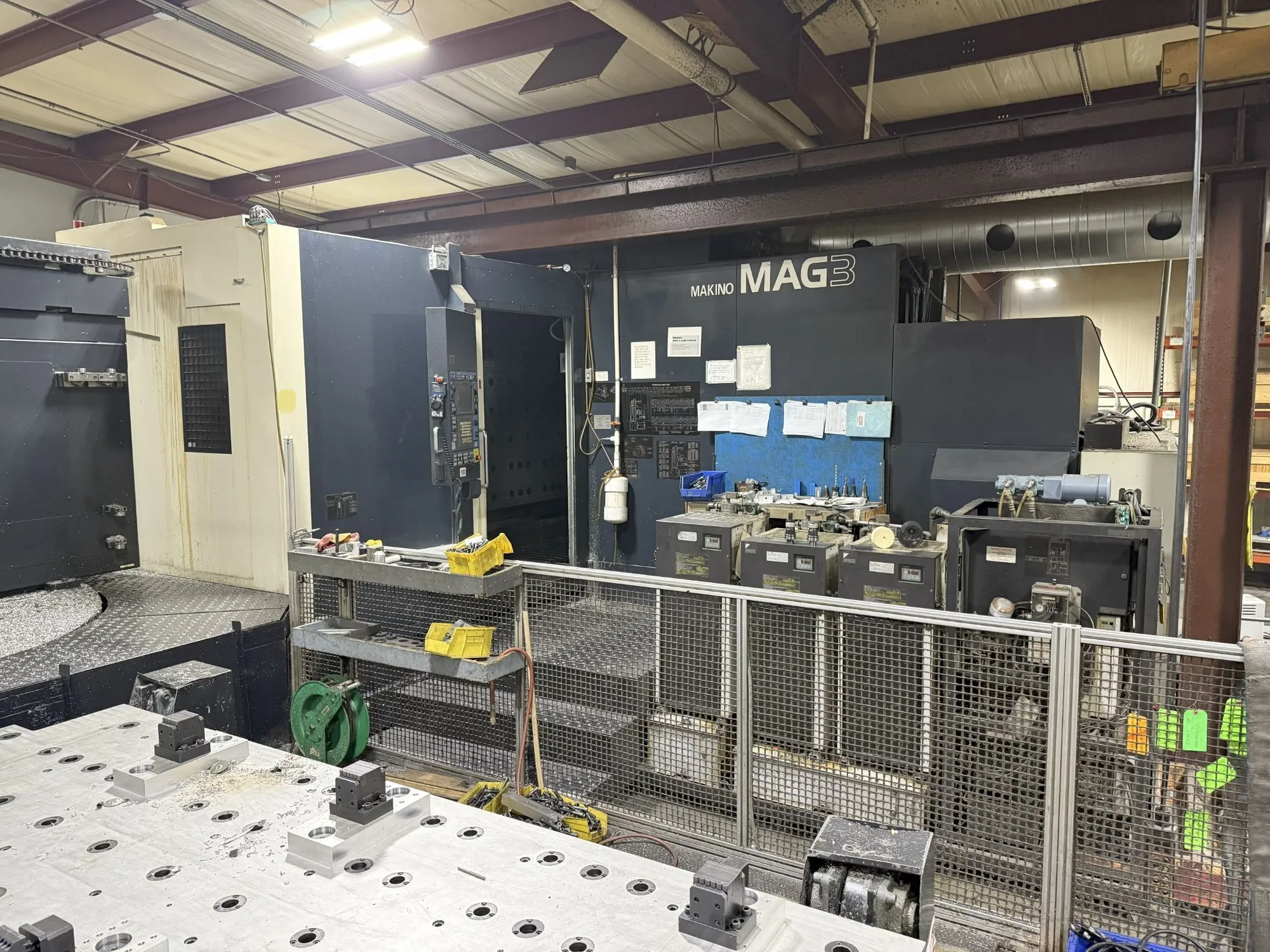

Makino MAG3 5-Axis Machining Center

Number of Pallets............................................2
Type of Table................................................Rectangular Pallet Type
Pallet Size..................................................118.1" x 59.1"
Work Area on Pallet..........................................118.1" x 78.7"
Maximum Workpiece Size.......................................118.1" x 59.1" x 19.7"
Pallet Load Capacity.........................................6,600 LBS
Spindle Nose to Pallet Surface...............................+1.96" to +41.33"
X-Axis Travel, Programmable..................................118.1"
Y-Axis Travel, Programmable..................................59.1"
Z-Axis Travel, Programmable..................................39.4"
A-Axis (Spindle Swing).......................................±110°
C-Axis (Spindle Rotate)......................................Infinite°
Type of Axis Drives..........................................AC Digital Servo Motors
Bed Construction.............................................Meehanite Cast Iron
Axis Design (X, Y & Z).......................................Linear Guide
Drive Concept for A and C-Axis...............................Gear Driven

X-Axis.......................................................Center of Stroke
Y-and Z Axes.................................................(+) End of Stroke
A-Axis.......................................................0 degree (Spindle in Horizontal)
C-Axis.......................................................0 degree (Spindle in Horizontal)
Origin Detection.............................................Grid Detecting System
Minimum Indexing Incremen Setting degree (A or C Axis).......0.001°
Linear Positioning Accuracy - Over Full Stroke:
(with proper foundation and environmental control):
X, Y & Z-Axes (Scales standard)..............................0.0002"
A and C Axes.................................................± 10 seconds of arc
Repeatability: Over Full Stroke:
X, Y & Z-Axes (Scales standard)..............................0.000080"
A and C Axes.................................................± 2 seconds of arc
Rapid Traverse Rates:
X, Y & Z Axes.................................................1,000 IPM
A & C Axes....................................................7,200°/min
Feed Rate - X, Y & Z Axes.....................................0.00004 to 1,000 IPM
A & C Axes....................................................0.001 to 7,200°/min
Jog Feed - X, Y & Z Axes......................................0.04 to 157 IPM
A & C Axes....................................................1 to 4,000°/min
Spindle Nose Taper............................................HSK-F80
Tool Clamping Force...........................................2,425 LBS
Spindle Drive Motor...........................................80 HP
Spindle Speed.................................................33,000 RPM
Spindle Speed Increment.......................................1 RPM
Number of Spindle Speed Ranges................................1
Number of Tools...............................................120 ATC
Max Tool Diameter.............................................3.5"
Max Tool Length...............................................12"
Max Tool Weight...............................................17.64 LBS
Tool Change Time Tool-to-Tool.................................110 Seconds
Tool Change Time Chip-to-Chip.................................22 Seconds
Air Supply for Use on Machine.................................72.5 ~ 128 PSI
Volume........................................................1,000 liter/min
kVA (Including Horizontal WSS)................................160
Machine Height................................................149.6"
Size of Required Floor Space (W x D)..........................484" x 292"
Machine Weight................................................94,800 LBS

Makino Pro 3 (Fanuc) CNC Control
2-Station Pallet Changer
120 Station ATC

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
