2 Axis- Barfeed - Chip Conveyor
| size | 8" Chuck | 8" Chuck |
| Swing | 24.02" | 610.11 mm |
| Machining Length | 21" | 533.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.99" | 75.946 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 13.78" | 350.01 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

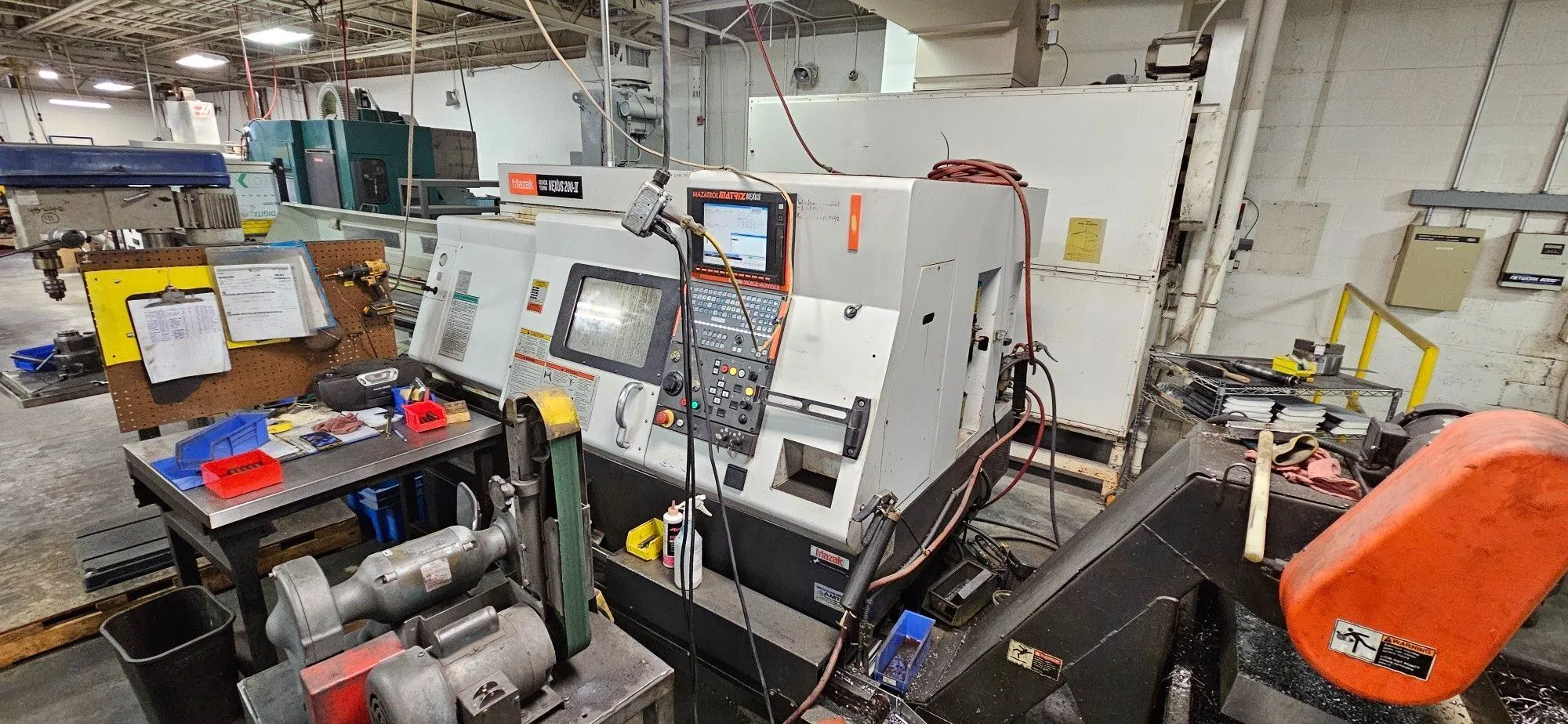

Mazak Quick Turn Nexus 200-II CNC Lathe (2007)
Maximum Swing: 24.02”
Swing Over Carriage: 13.78”
Maximum Machining Length: 13.78”
Spindle Bore/ Bar Work Capacity: 2.99”/ 2.56”
X - Axis Travel: 7.5”
Z - Axis Travel: 21.125”
Chuck Size: 8”
Spindle Speed: 5,000 RPM
Spindle Nose: A2-6
Turret: 12 Positions
Tailstock Stroke: 21.75”
Main Motor: 30/35 HP
Approximate Floor Space 104.3” X 70.1” X 72.4” High
Approximate Machine Weight: 11,000 LBS
