Dual Pallet changer, Mazatrol Matrix Control, Automatic Tool Length Measurement w/ Renishaw TS27R Probe, High Pressure Coolant Through Spindle, Flood Coolant, Chip Conveyor, 48 Station Side Mount Automatic Tool Changer, Rigid Tapping, Windows XP Operating System / (2) Ports USB Interface
LAN Port Interface / 3.5" Floppy Disk Drive Interface /RS-232 Port Interface
Dual Probe Kit OMP60/0TSSA w/ EIA Inspect Plus, Auto Pecking Cycle With Load Detection Synchronized Tapping, Mazacc-2D Software Shape Comp, ( 2 Identical Machines Available )
| size | 40" x 20" x 20" | 40" x 20" x 20" |
| X Travel | 40" | 1,016 mm |
| Y Travel | 20" | 508 mm |
| Z Travel | 20" | 508 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 48 | 48 |
| Taper | 40 | 40 |
| Table-W | 21" | 533.4 mm |
| Table-L | 51" | 1,295.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (Matrix CNC Control) | CNC (Matrix CNC Control) |
| Dimensions | 240"x144"x122" | 240"x144"x122" |
| Weight | 20000 | 20000 |

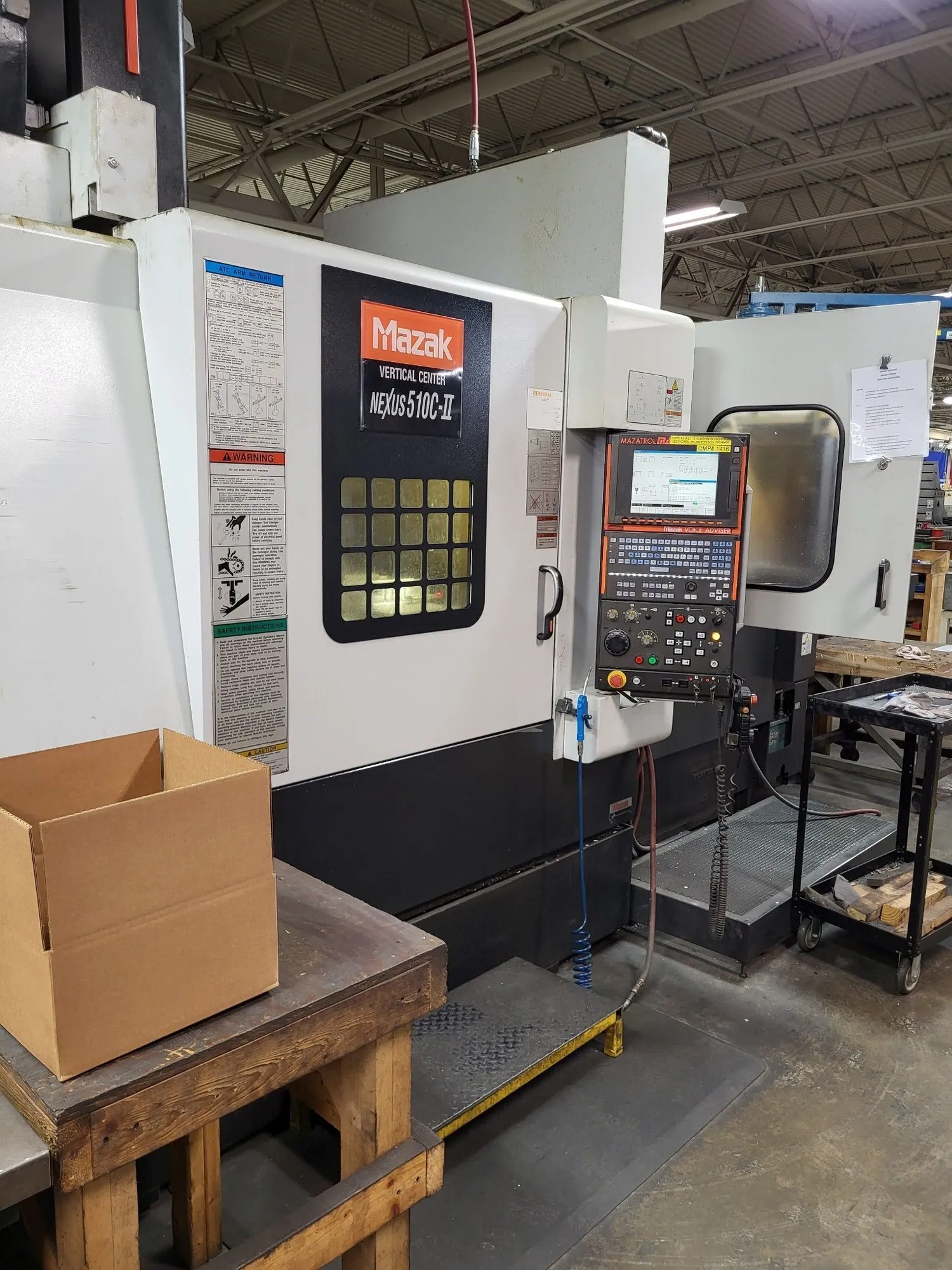

Mazak Nexus 510C-II Vertical Machining Center (2010)
Table Size 51.18" x 21.65"
Maximum Table Load 2,646 lbs.
X-Axis Travel 41.3"
Y-Axis Travel 20"
Z-Axis Travel 20"
Spindle Taper CAT #40
Spindle Speeds 12,000 RPM
Spindle Motor 25 HP
Distance Spindle Nose to Table Top 5.9" - 25.98"
Number of Tool Positions 48 Station Tool Changer - Side Mounted
Maximum Tool Diameter / Length / Weight 4.92" / 13.8" / 17 lbs.
Tool Change Time Tool to Tool 1.3 seconds
Rapid Traverse Rates 1,417 IPM
Machine Dimensions 240"x144"x122"
Machine Weight 20,700 lbs.
Electrics 480/3/60
Dual Pallet changer, Mazatrol Matrix Control, Automatic Tool Length Measurement w/ Renishaw TS27R Probe, High Pressure Coolant Through Spindle, Flood Coolant, Chip Conveyor, 48 Station Side Mount Automatic Tool Changer, Rigid Tapping, Windows XP Operating System / (2) Ports USB Interface
LAN Port Interface / 3.5" Floppy Disk Drive Interface /RS-232 Port Interface
Dual Probe Kit OMP60/0TSSA w/ EIA Inspect Plus, Auto Pecking Cycle With Load Detection Synchronized Tapping, Mazacc-2D Software Shape Comp, ( 2 Identical Machines Available )
