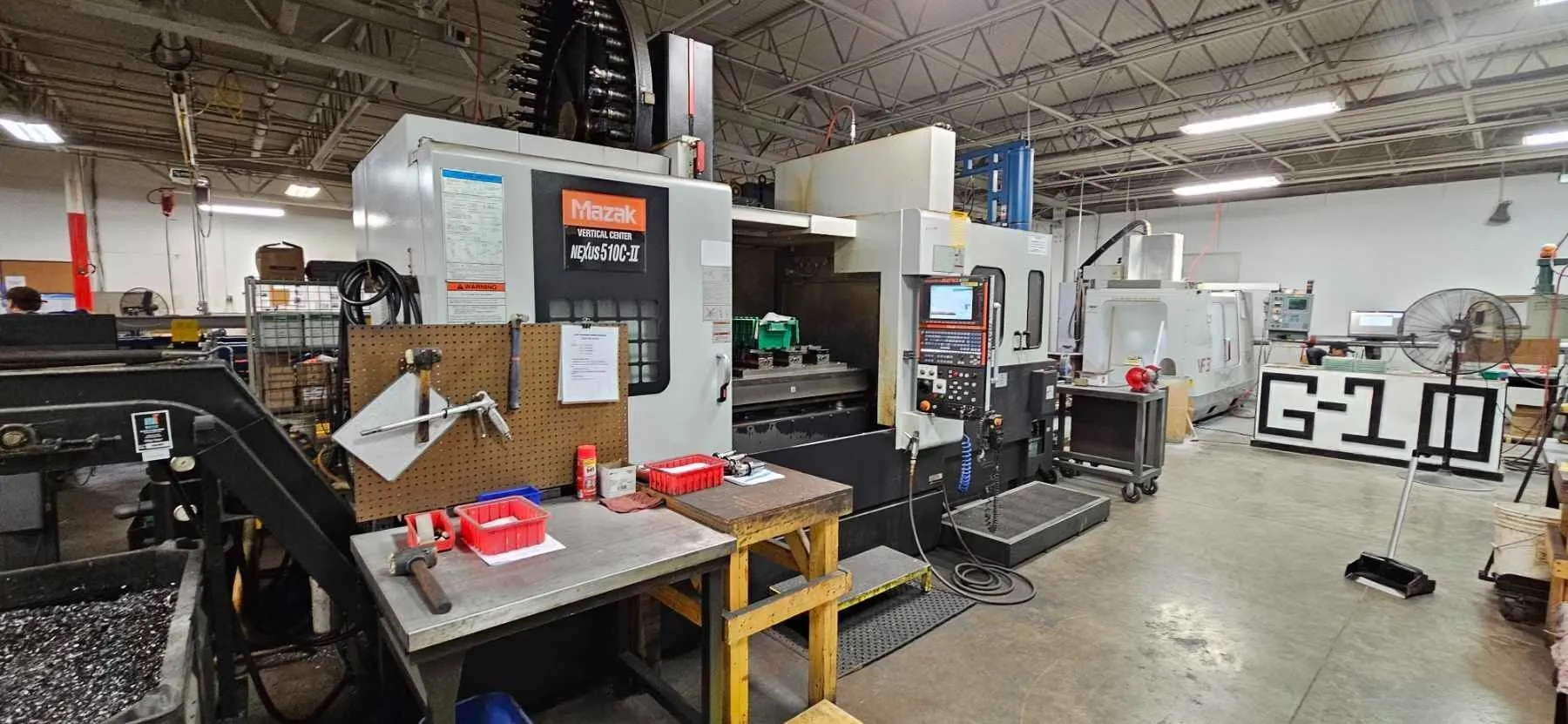

USED 2010 MAZAK NEXUS VCN 510C II
Overview
Description
48 ATC, Mazatrol Matrix Control, High Pressure Coolant Through Spindle, Flood Coolant, 40 Taper, 2 Pallet, Chip Conveyor, Dual Probe Kit OMP60/0TSSA w/ EIA Inspect Plus, Auto Pecking Cycle With Load Detection Synchronized Tapping, Mazacc-2D Software Shape Comp, ( 2 Identical Machines Available )
Specifications
| size | 41" x 21" x 20" | 41" x 21" x 20" |
|---|---|---|
| X Travel | 41" | 1,041.4 mm |
| Y Travel | 20" | 508 mm |
| Z Travel | 20" | 508 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 48 | 48 |
| Taper | 40 | 40 |
| Table-W | 21" | 533.4 mm |
| Table-L | 51" | 1,295.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mazatrol Matrix Control) | CNC (Mazatrol Matrix Control) |
Mazak Nexus VCN510C-II Vertical Machining Center (2010)
Table Size 51.18" x 21.65"
Maximum Table Load 2,646 lbs.
X-Axis Travel 41.3"
Y-Axis Travel 20"
Z-Axis Travel 20"
Spindle Taper CAT #40
Spindle Speeds 12,000 RPM
Spindle Motor 25 HP
Distance Spindle Nose to Table Top 5.9" - 25.98"
Number of Tool Positions 48 Station Tool Changer - Side Mounted
Maximum Tool Diameter / Length / Weight 4.92" / 13.8" / 17 lbs.
Tool Change Time Tool to Tool 1.3 seconds
Rapid Traverse Rates 1,417 IPM
Machine Dimensions 240"x144"x122"
Machine Weight 20,700 lbs.
Equipped With
Pallet changer
Mazatrol Matrix Control
Automatic Tool Length Measurement w/ Renishaw TS27R Probe
High Pressure Coolant Through Spindle, Flood Coolant
Chip Conveyor
48 Station Side Mount Automatic Tool Changer
Rigid Tapping
Windows XP Operating System / (2) Ports USB Interface
LAN Port Interface / 3.5" Floppy Disk Drive Interface /RS-232 Port Interface
Dual Probe Kit OMP60/0TSSA w/ EIA Inspect Plus, Auto Pecking Cycle With Load Detection Synchronized Tapping, Mazacc-2D Software Shape Comp, ( 2 Identical Machines Available )
