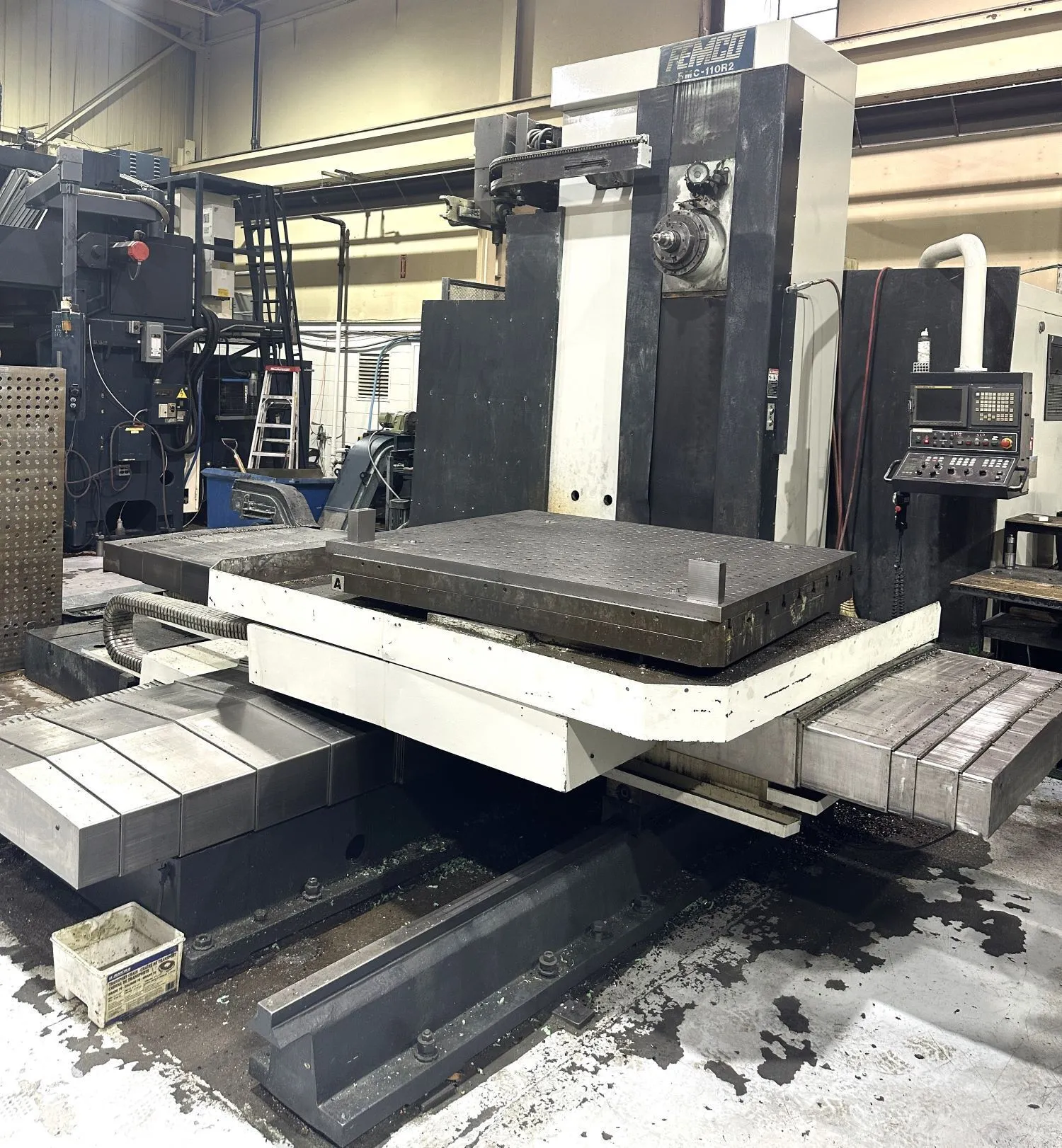

2006 FEMCO BMC-110R CNC TABLE TYPE BORING MILL
WITH FANUC 21iMB CNC CONTROL ALL INSTALLED OPTIONS
Main Specifications
Spindle Size: 4.3"
Spindle Taper: ISO #50
X-Travel: 78.7"
Y-Travel: 70.87"
Z-Travel: 64.96"
W-Axis Travel: 19.69"
Spindle RPM'S: 2500
Rotary Table width: 63"
Rotary Table Length: 56.5"
Main Power: 35 HP 2-Speed Geared Head stock
Equipped With:
Fanuc 21iMB CNC Control
Coolant Thru Spindle
Table Indexing (B axis): Full B Axis Rotary
Table max weight: 14000 Lbs.
60 Station Automatic Tool Changer
Rigid Tapping
Helical Interpolation
Chip Conveyor
Full Forth Axis Rotary table built in Table
Spindle Chiller Unit
Fully installed in Shop Under Power Midwest for Inspections.
Operational Videos Available
Special Machine Price:..$ Please Email Requests
Machine Local Prep & Rigging Available Good Rates on this Machine Neg. in Machine Pricing.
Sincerely,
Mark Murphy
| Spindle Size | 4.33" | 109.98 mm |
| X-Horiz Tvl of Table | 55.12" | 1,400 mm |
| Y-Vert Tvl of Head | 47.24" | 1,199.9 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 44.09" | 1,119.9 mm |
| Table-L | 49.21" | 1,249.9 mm |
| Spindle Tvl. | 43.31" | 1,100.1 mm |
