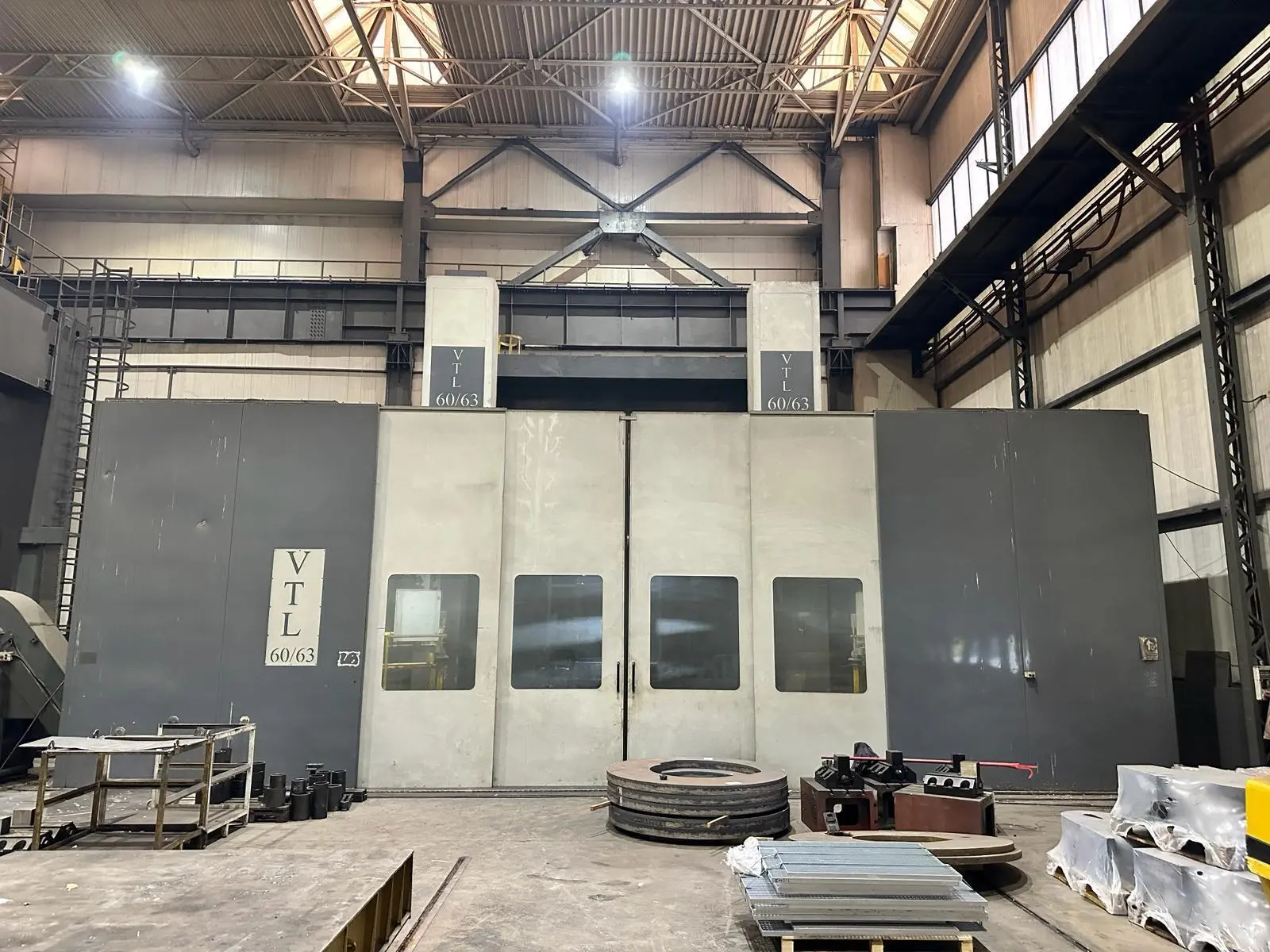

USED 2015 EMSIL VTL-60X63
Overview
Description
Dual Ram with Live Milling, 236" 8 Jaw Face Plate, FANUC 31i CNC, Heidenhain linear scales, Faceplate with 8 jaws, 1 piece, Operator platform, Centralized hydraulic and lubrication unit, Full enclosure without roof with 1 piece chain type chip conveyor
Specifications
| Chuck / Table Dia | 6,000 mm | 236.22" |
|---|---|---|
| Swing | 6,300 mm | 248.03" |
| Maximum Cutting Diameter | 6300 mm | 248.03" |
| Work Ht-U/R | 4,600 mm | 181.1" |
| Maximum Turning Length | 6300 mm | 248.03" |
| Vertical Travel X | 4600 in | |
| Horizontal Travel Z | 7200 mm | 283.46" |
| RPM | 30 RPM | 30 RPM |
| Power | 167 hp | 124.5 kW |
Emsil VTL-60X63 236" 6000 MM Vertical Boring Mill with Live Milling (2015)
Machining capacity
- Maximum workpiece diameter: 6300 mm
- Maximum height of workpiece to be machined: 4600 mm
- Maximum weight of workpiece: 150000 kg
Faceplate
- Faceplate diameter: 6000 mm
- Turning speed range: 30 rpm
- Main motor power: 125 kW
- C axis: 0-360°/min.
Cross rail
- Cross rail vertical travel: 3500 mm
- Feed of cross rail: 1000 mm/min.
- Motor power: 18.5 kW
Turning and Milling RAM, 1 piece
- Vertical RAM travel, Z1 axis: 2400 mm
- Horizontal RAM travel, X1 axis: 7200 mm
- RAM octagonal section: 310x310 mm
- Maximum milling speed: 3000 rpm
- Maximum milling power: 30 kW
- Maximum torque: 800 Nm
- Milling spindle taper: ISO-50 (DIN69871/DIN69872)
- X1/ Z1axes rapid feed: 6000 mm/min
Turning RAM, 1 piece
- Vertical RAM travel, Z2 axis: 2400 mm
- Horizontal RAM travel, X2 axis: 7200 mm
- RAM octagonal section: 310x310 mm
- X2/ Z2 axes rapid feed: 6000 mm/min
Equipped With
FANUC 31i CNC
Heidenhain linear scales
Faceplate with 8 jaws, 1 piece
Operator platform
Centralized hydraulic and lubrication unit
Full enclosure without roof with 1 piece chain type chip conveyor
