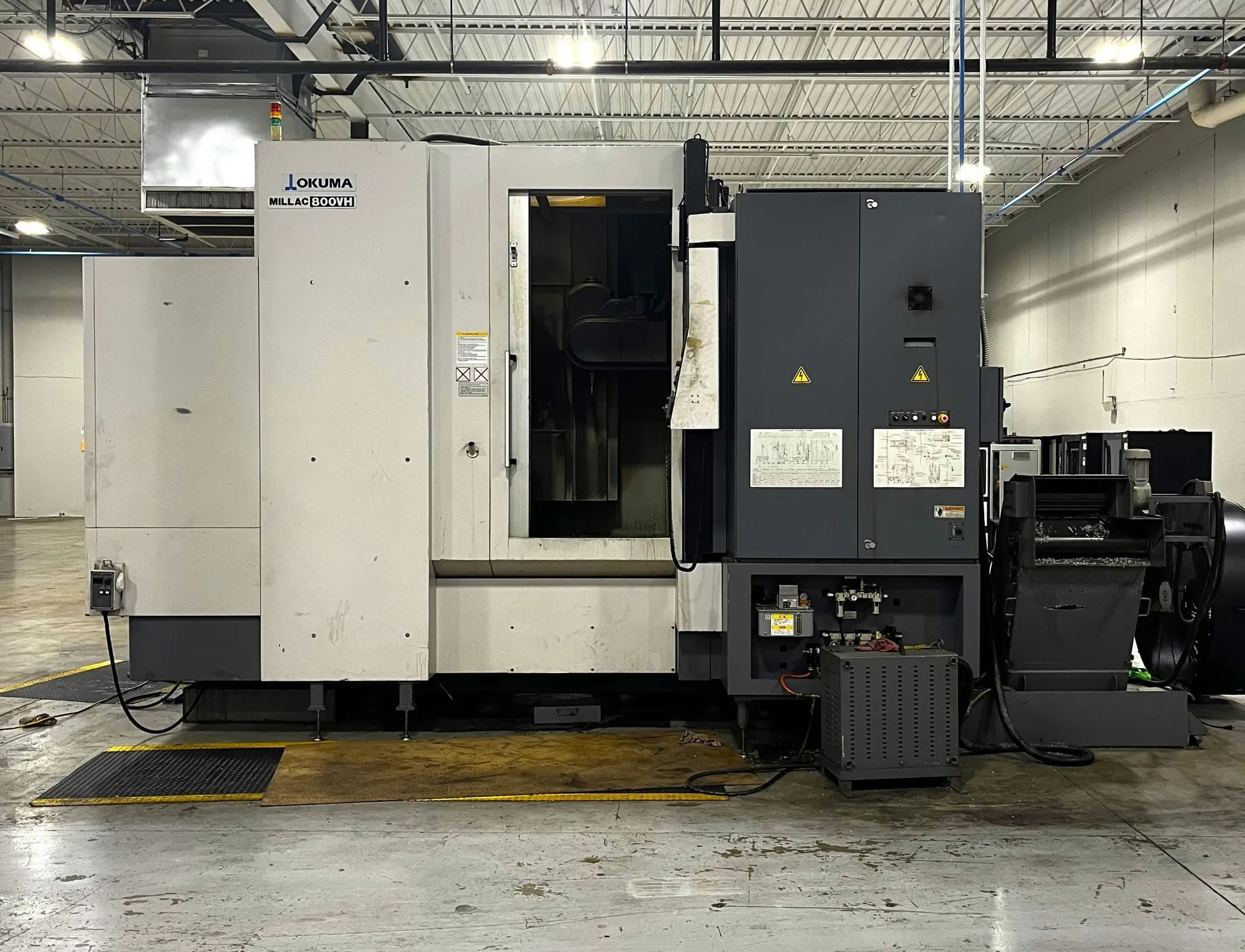

USED 2007 OKUMA MILLAC 800VH CNC
Overview
This 5-axis, multi-plane machining center combines high speed with high rigidity. A box-type bed and a rectangular/wide sliding surface provide the machine with its highly rigid structure. Our MILLAC 800VH employs large ball screws and highly rigid supports with pre-tension to ensure stability in accuracy. The multi-face machining capability allows for the machining of complex workpieces in one setup. This improves part accuracy by eliminating the setup errors inherent in re-fixturing the part. In addition, the rotary-type 2APC is a standard feature to reduce setup time and to increase productivity.
Learn more about 5-Axis Machining Centers.
Specs
Okuma Millac 800VH 5 Axis Machining Center
Travel X Axis Mm (In) Column Horizontal 1,020 (40.15)
Y Axis Mm (In) Pallet Front Back 1,020 (40.15)
Z Axis Mm (In) Spindledhead Vertical 1,020 (40.15)
Spindle Nose To Pallet Top (Vertical) Mm (In) -100 To 920 (-3.94 To 35.22)
Spindle Center To Pallet Center (Vertical) Mm (In) -50 To 970 (-1.97 To 38.19)
Spindle Center To Pallet Top (Horizontal) Mm (In) 150 To 1,170 (5.91 To 46.05)
Spindle Nose To Pallet Center (Horizontal) Mm (In) -300 To 720 (-11.81 To 28.35
Table Max Work Dimension Mm (In) 800 X 800 (31.49x31.49)
Max Load Capacity Kg (Lb) 1,000 (2,200)
Indexing Angle (Curvic Coupling Orientation) Deg 5
Indexing Angle (Any Nc Orientation) Deg 0.001
Floor To Pallet Top Mm (In) 1,230 (48.43)
Spindle Spindle Speed Min-1 100 To 10,000
Spindle Taper Hole No. 50
Spindle Swivel Angle Deg 150
Indexing Angle (Curvic Indexing) Deg
Indexing Angle (Nc Arbitrary Indexing) Deg 0.001
Axis Feed Rapid Traverse M/Min (Ipm) X-Y-Z 30(1,181)
Rapid Traverse Min-1 A-C;3,600
Cutting Feed Mm/Min (Ipm) X-Y-Z 1 To 12,000 (0.04 To 472)
Cutting Feed Deg/Min A-C 1 To 2,400
Motors Spindle Kw (Hp) 22/18.5 (30/25) (15min/Cont)
Feed Axis (X/Y &Z) Hw (Hp) Csp X;5.6 (7.5) Y 3.5 (4.7) Z 5.6 (7.5 (Fanuc) X-Y 7.0 99.3) Z 6.0 (8)
Spindle Swivel Servo Motor Kw (Hp) (Csp) 3.5 (4.7) (Fanuc) 3.0 (4)
Table Indexing Servo Motor Kw (Hp) (Csp) 3.5 (4.7) (Fanuc) 3.0 (4)
ATC Tool Shank Mas 403 Bt50
Pull Stud Mas 407 P50t
Tool Capacity Tool 80 (120)
Max Tool Dia (W/Adjacent Tool) Mm/(In) 125 (.4.92)
Max Tool Dia (W/Adjacent Tool) Mm/(In) 200 (7.87)
Max Tool Length/Weight Mm/Kg 400/20
Max Tool Moment N-M (Ft-Lbf0 14.7 (10.84)
Tool Selection Fixed Address
Tool Change Time (T-T) Sec 4.5
APC 2 Pallet Rotary-Shuttle Automatic Pallet Changer
Time Sec 20
Size Effective Width Between Column Mm(In)
Machine Height Mm(In) (Osp) 3,600 (41.73)
Machine Weight Width X Depth Mm(In) (Osp) 4,760x6,300 (187.40x248.03)
Weight Kg (Lb) 22,000 (48,400)
Power Capacity Kva 60
Equipped With
High Pressure Coolant Through Spindle with Integrated Chip Conveyor
Metrol Automatic Tool Setter, 80 Position Tool Changer
