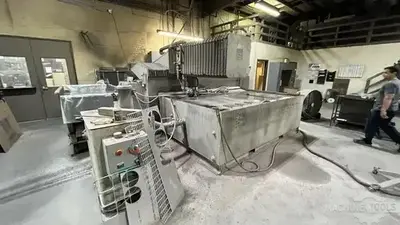

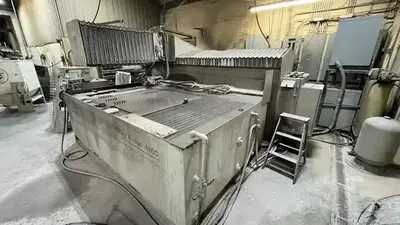

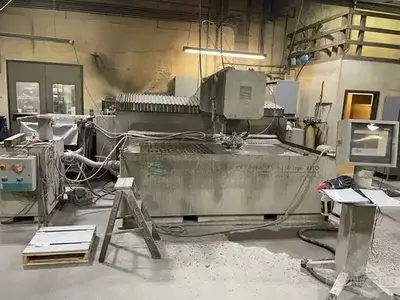

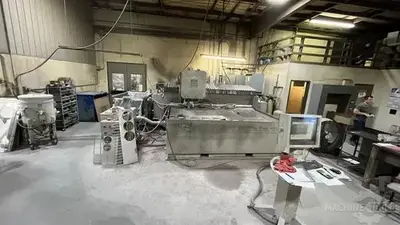

4' x 8' CNC Waterjet
| Pump Output | 55,000 PSI | 3,792.1 bar |
| Table Size-W | 48" | 1,219.2 mm |
| Table Size-L | 96" | 2,438.4 mm |
| Power | 50 hp | 37.3 kW |
Request a Quote
Add to Cart
Table Width: 4'
Table Length: 8'
Travels: 4’ x 8’ x 9’

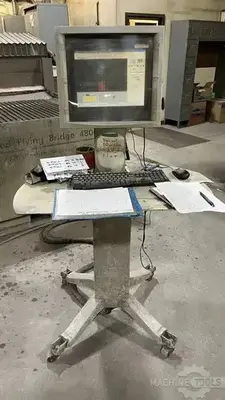

Control: Flowmaster

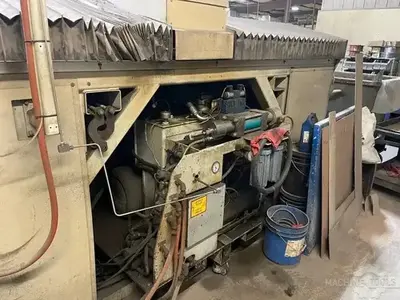

Pump: 50 HP
Max Cutting Pressure: 60,000 PSI
Power Requirement: 460-480/3/60
Speed Range: 500 IPM
Accuracy: +/- 0.0015”

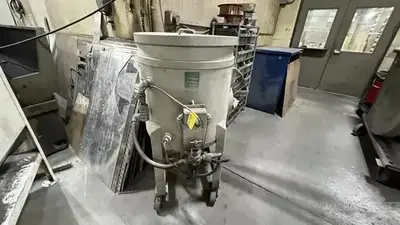

600lbs Abrasive Bulk Tank with Low/Out Sensor Tied into Controller: Dynamic Cutting Head for Taper Compensation
Waterveyour Garnet Remove System: FlowCUT Machine Interface with SmartStream Technology
FlowNEST - Optimizes Material Yield With Full Geometric Nesting: Flowpath CAD/CAM System
Hardened Ball Screw Linear Motion System: Roll Around Control For Easy Operation
Rigid Open Gantry Design: Simply Choose Material And Thickness And Software Does The Rest
Allows For Off-Line Time Studies And Creates Quotations: Built-in CAD Functions and Automatic Tool Path Generation
Easy To Load Catcher Tank With 3 Open Sides: Ethernet Network and USB Drive Compatible
Flying Bridge Design Easy Access on 3 Sides of the Tank: Full Wrap Around Bellows To Protect Drive Components
Heavy Duty Welded Steel Base And Catcher Tank
