| size | 160 Ton | 160 Ton |
| Tonnage | 160 T | 145.15 t |
| Type | HYD | HYD |
| Overall Length | 161" | 4.1 m |
| Between Housings | 124" | 3.1 m |
| Stroke | 9.8" | 248.92 mm |
| # Axis | -6 | -6 |
| Control | CNC (cybelec Eve 15T) | CNC (cybelec Eve 15T) |
| Weight | 28,200 | 28,200 |

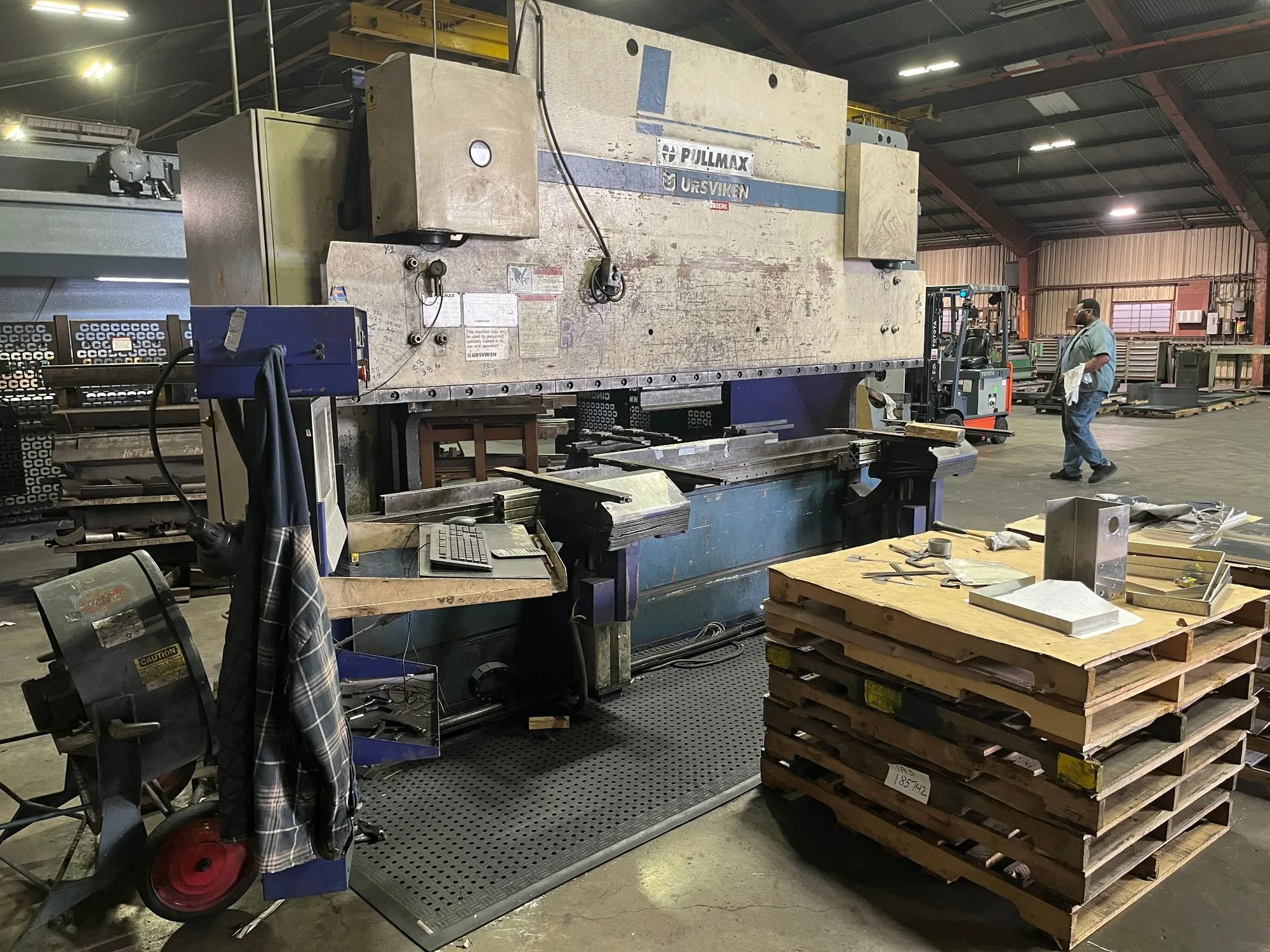

Pullmax Ursviken Optima 160 4.1/3.15 160 Ton 6-Axis Cnc Hydraulic Press Brake
Operating Length: 161"
Working Height: 37"
Table Width: 5.8"
Press Power: 175 sh.t. / 1570 KN
Distance Between Housings: 124"
Gap: 7.8"
Tool Space: 17.7"
Speeds: High Speed 240 Ipm
Press Speed 43 Ipm
Return 369 Ipm
Stroke Length: 9.8"
Hydraulic Pump Motor: 30 Hp
Weight, Approx. 28,200 Lbs.
Cybelec Mod. Eve 15T Cnc Control
6-Axis Back Gauge
Floor Pedestal Palm Button Stand
Lower Die Rail
Full Compliment of Upper Die Rail Holders
