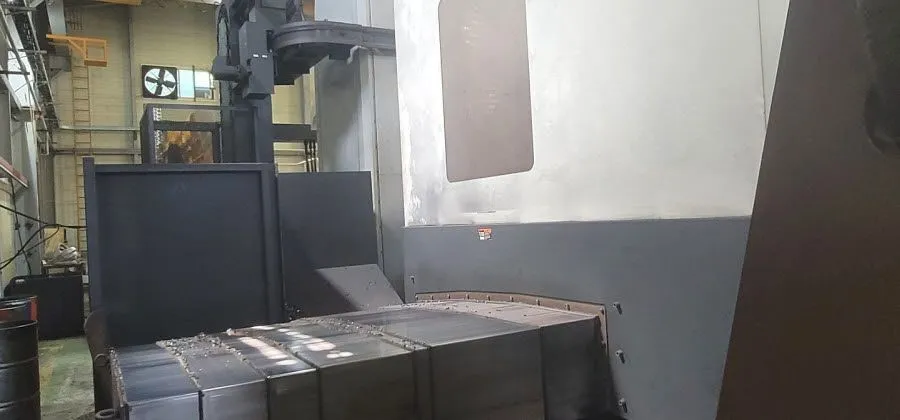

USED 2014 HYUNDAI WIA KBN135C
Overview
5", Full B Axis, 40 ATC< Fanuc 31A CNC, Single unit bed for X and Z axis for ultra-precision (KB135)
Movable column structure for high-load, heavy duty cutting needs (KB135C)
Selectable X and Y axis of up to 1,000mm (39.3″) and 500mm (19.6″) respectively
3-step gear drive main spindle for heavy duty cutting
Optimal boring capability with W-axis maximum travel of 700mm(27.5″)
Equipped with standard linear and rotary scales for ultra-precision
Specs
Hyundai Wia KBN-135C 5" CNC Table Type Horizontal Boring Mill (2014)
Table Size 78.7″×70.9″
Max. Load Capacity lbf 33,069 [44,092]
Spindle Driving Method - GEAR(3STEP)
Spindle Taper - BT50
Spindle RPM r/min 2,500
Spindle Power HP 29.5/24.8
Spindle Torque lbf.ft 2,295.2/1,930.2
Travel(X/Y/Z) inch 118.1″/78.7″/63″
Travel(A/C) deg 700(W-axis)
Rapid Feed Rate(X/Y/Z) m/min 10/10/10
Rapid Feed Rate(A/C) r/min 8(W-axis)
Slide Way Type - BOX
No. of Tools EA 40
Tool Change Time
(Chip To Chip) sec 33.2
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
Equipped With
Fanuc 31iA control
Full C axis
Chip conveyor
Scales
Full Guarding
