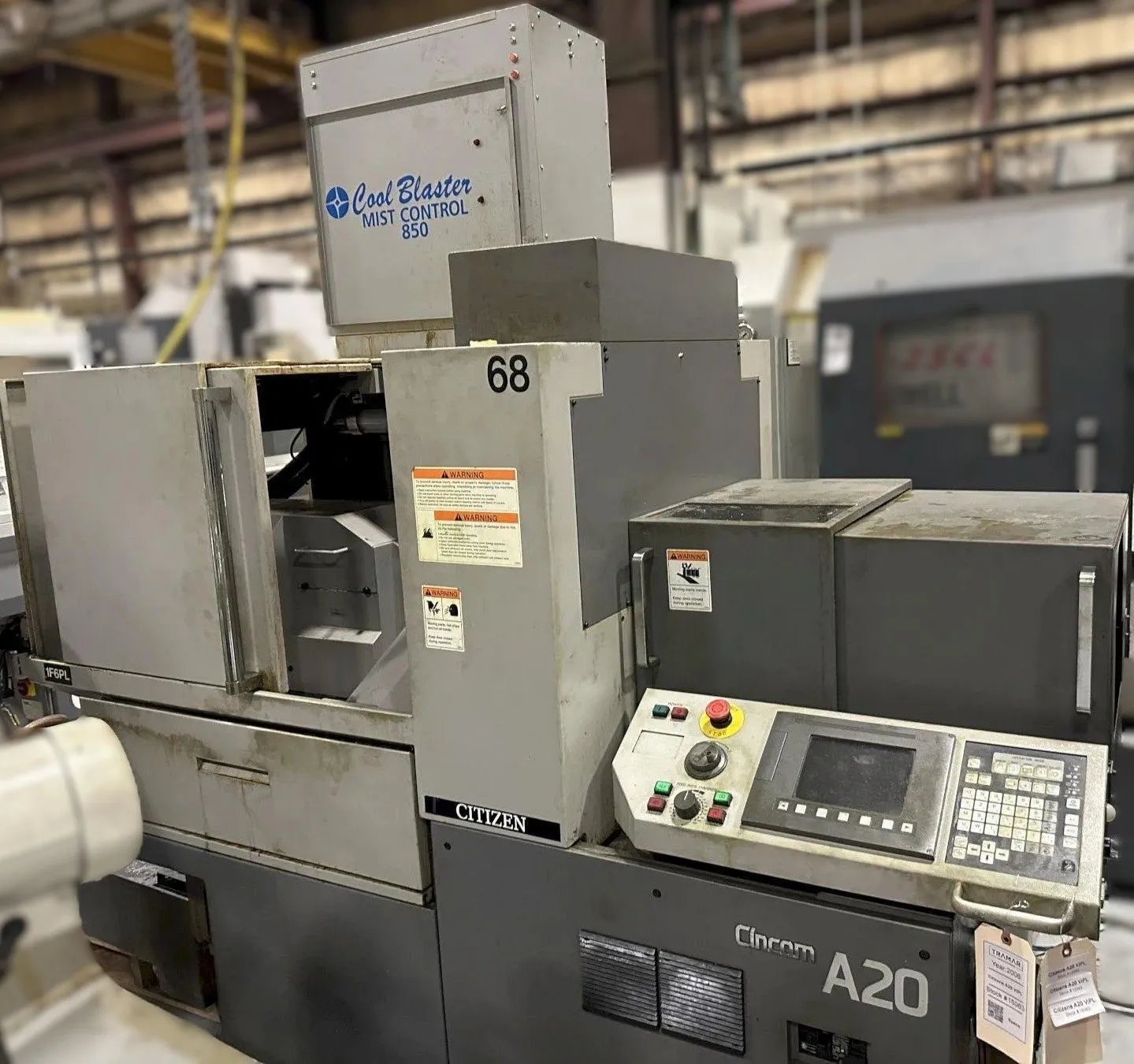

Citizen A20VIPL CNC Swiss Lathe, New in 2006. Edge Technologies C-320 12ft Bar Feeder - LNS Chip Conveyor - Coolant Tank & Pump - Mist Blaster
| Capacity | 20 mm | 0.7874" |
| Spindle Hole Diameter | 0.78" | 19.812 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # Axis | 5 | 5 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 5500lbs | 5500lbs |
CNC Control yes yes
Type of CNC Control Fanuc Fanuc
# Axis 5 5
Max Turning Length 6.49 in 164.85 mm
Turning Diameter 0.78 in 19.81 mm
Bar Capacity 1.22 in 30.99 mm
Spindle Speed 8,000 rpm 8,000 rpm
Main Motor 5 hp 5 hp
Live Tooling yes yes
Y Axis yes yes
Bar Feeder yes yes
Sub Spindle yes yes
Sub Spindle Speed 8,000 rpm 8,000 rpm
Max Frontal Drill Diameter 0.394" 0.394"
Max Drilling Diameter- Gang Rotary Tool 0.276" 0.276"
Number of Tools to be Mounted 21 21
'Turning Tools on Gang Tool Post 5 5
Cross Rotary Tools 4 4
Front Drilling Tools 4 4
Back Drilling Tools 8 8
Machine Weight 5500 lb 2,494.76 kg
- Fanuc CNC Control
- Edge Technologies C-320 12ft Bar Feeder
- LNS Chip Conveyor
- Coolant Tank & Pump
- Mist Blaster
