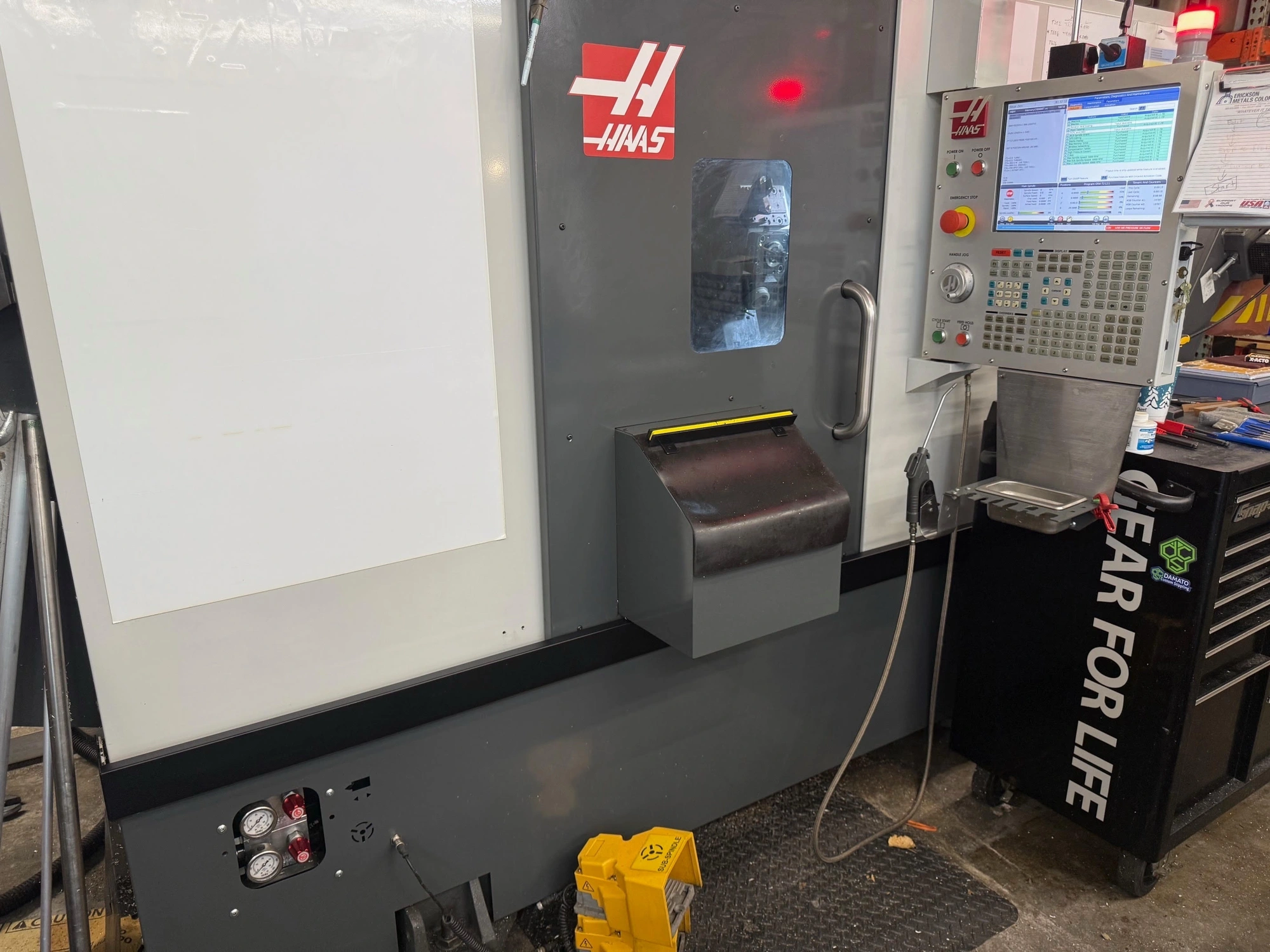

Fully Loaded 2019 Haas ST-20Y CNC Lathe – Precision, Power & Performance
Elevate your shop’s productivity with this loaded 2019 Haas ST-20Y CNC Lathe –A high-performance turning center equipped with premium upgrades, with a total package value of $195,000 when purchased new. Engineered for precision and built for versatility, this machine features Y-axis milling, live tooling, and an expansive work envelope to handle complex parts with ease. Whether you're increasing capacity or expanding capabilities, the ST-20Y delivers unmatched performance without sacrificing quality.
| Swing | 21" | 533.4 mm |
| Machining Length | 20.75" | 527.05 mm |
| # Axis | 4 | 4 |
| Chuck Size | 8.3" | 210.82 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 12" | 304.8 mm |
| Live Tooling | Yes | Yes |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 131 in x 73 in x 73 in | 131 in x 73 in x 73 in |
| Weight | 9200 lb | 9200 lb |
Swing 21"
Machining Length 21"
# Axis 5
Bar Capacity 2"
Chuck Size 8.3"
Distance Between Centers 21"
Turning Diameter 12"
Power 20 hp
Max RPM 5,000 RPM
Tailstock Yes
Live Tooling Yes
Sub Spindle NO
# of Turrets 1
NextGen Haas CNC Control
5,000rpm Main Spindle
6,000rpm Sub-Spindle
Upgraded 6,000rpm Live Tooling Spindle Speed
Belt-type Chip Conveyor
High Pressure Coolant
Auxiliary Coolant Filter
Visual Parts Programming System
32 GB Expanded Memory
Parts Catcher
Haas Barfeeder
***Royal Collet Chucks available for $5,000.00***
