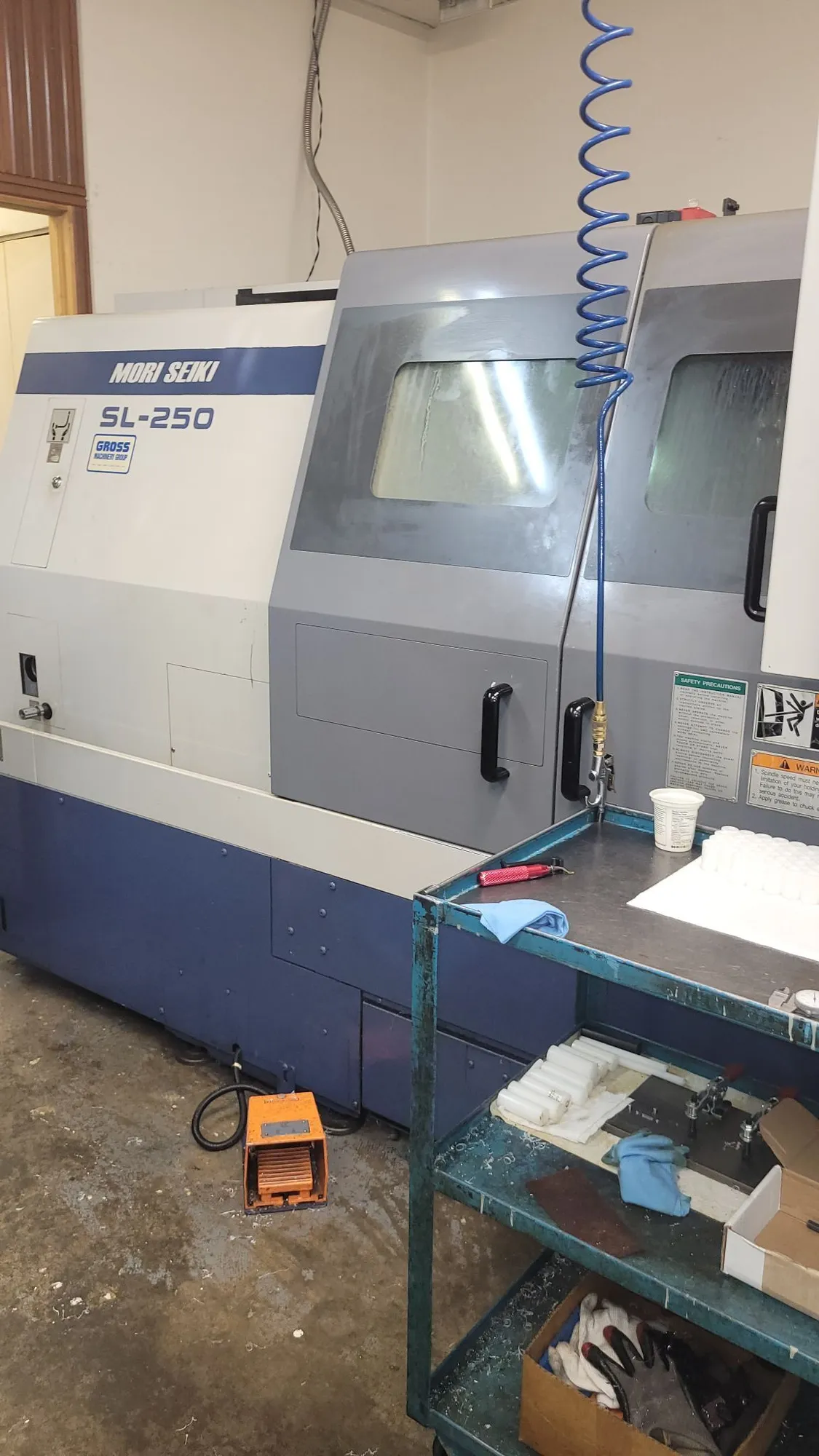

USED 1998 MORI SEIKI SL-250B/1000

Mori Seiki SL-250B/1000 CNC Lathe

Swing Over Bed 26.8"
Maximum Turning Diameter 15.3"
Distance Between Centers 43" W/This Chuck
Maximum Turning Length 40.8"
X Axis Travel 9.2"
Z Axis Travel 42"
Rapid Traverse Rate X Axis 708 Ipm
Rapid Traverse Rate Z Axis 945 Ipm
Spindle Nose A2-8
Spindle Bore 3.3"
Maximum Bar Capacity 2.9"
Spindle Speeds 35 - 3,500 Rpm
Spindle Motor 20 Hp
Turret Capacity 10 Station Turret
Tailstock Quill Taper Mt #5
Tailstock Quill Diameter 4"
Tailstock Quill Stroke 5.9"
Tailstock Body Travel 41.4"
Dimensions, Approx. 169"L X 74"W X 74"H
Weight, Approx. 13,100 Lbs
