24000 RPM, 25 Position ATC
| X | 27.6" | 701.04 mm |
| Y | 16.5" | 419.1 mm |
| Z | 15" | 381 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 24,000 RPM | 24,000 RPM |
| # ATC | 25 | 25 |
| Taper | 30 | 30 |
| Control | CNC | CNC |
| Dimensions | 65" x 112" x 113H For Shipping ( 96" Tall ) | 65" x 112" x 113H For Shipping ( 96" Tall ) |

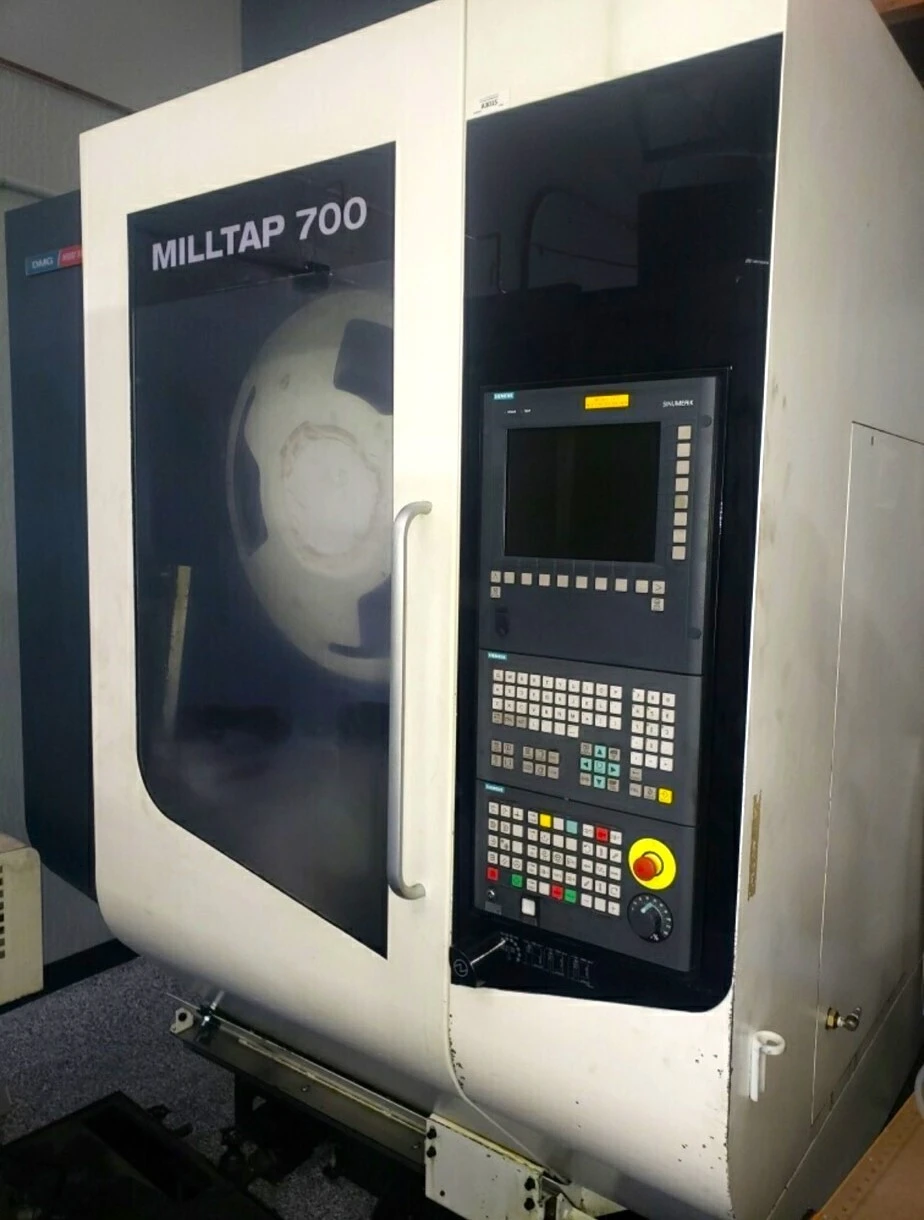

DMG Mori Seiki Milltap 700 Vertical Machining Center (2013)
X-Axis Travel 27.6″
Max Table Load 882 Lbs
Spindle Motor 15 Hp
Spindle Speed 24,000 Rpm
Spindle Taper Bt-30
Table Size 33.1″ X 16.5″
Rapid Traverse Rate (X/Y/Z) 2,362 Ipm
Z-Axis Travel 15″
Y-Axis Travel 16.5″
Tool Changer 25 Tool Atc
Current Electrical Arrangement 230/400/3/60 16kVA 23 A Jn Max, 35 A
Siemens 840S CNC, 10.4″ Tft Screen
Digital Parts Counter & Timer
Programguide Via Sinumerik Cycles & G-Code
Manual Pulse Generator - Remote Jog Handwheel
Coolant Filtration
Manuals
