In/mm Threading. 4-Way Carriage Rapid Transverse/ 4-Way Tool Post. Remote Control Spindle on Apron. Heavy Duty Tailstock. Central Lubrication. 18” 4-Jaw, 4” Thru Hole Chuck. Taper Attachment. Sony 2-Axis DRO. (2) Steady Rests. Work Light. Coolant Pump
| Swing | 35.4" | 899.16 mm |
| Centers | 157.5" | 4,000.5 mm |
| Spindle Bore | 0" | 0 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,250 RPM | 1,250 RPM |
| Swing Over Cross Slide | 22.8" | 579.12 mm |

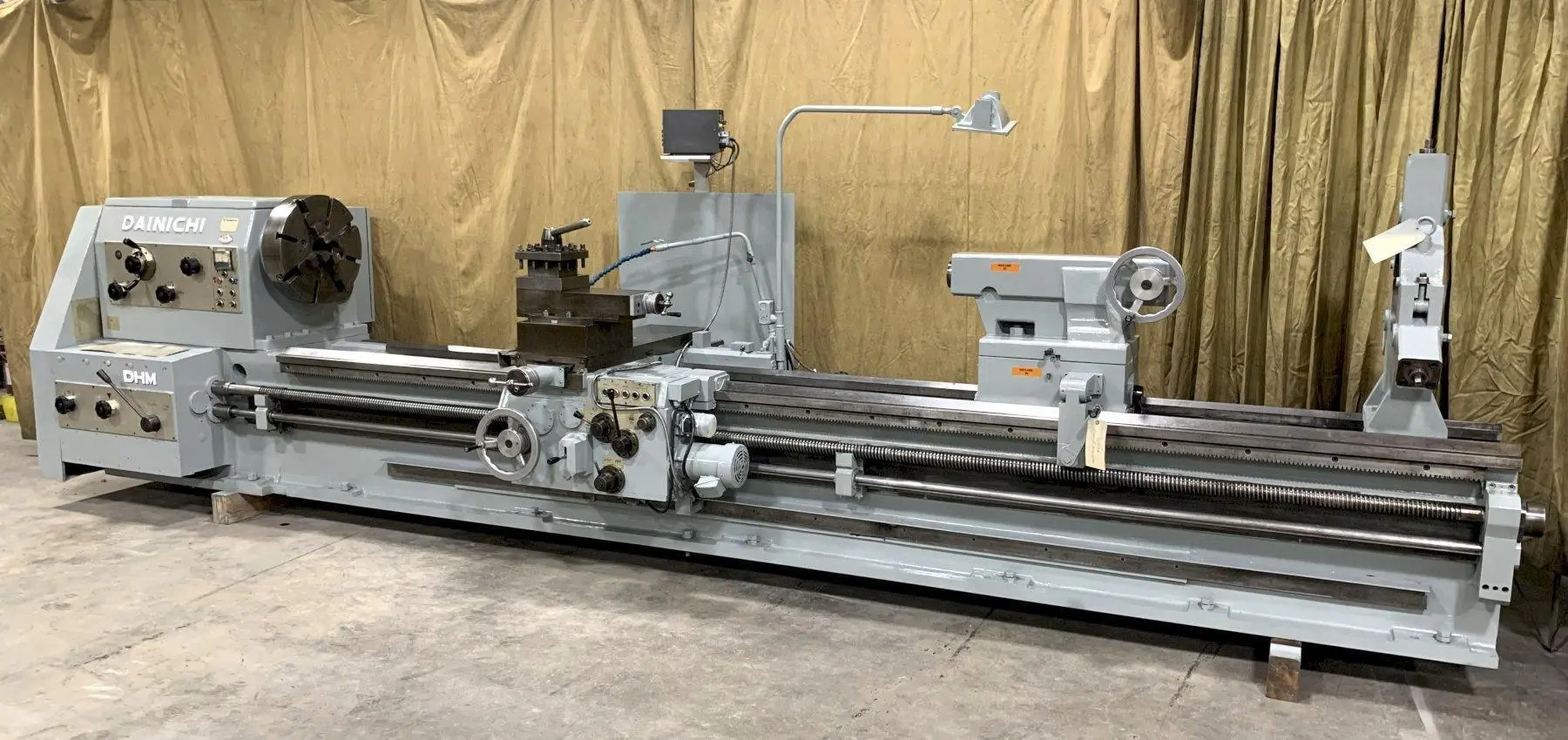

Dainichi Model DHM 90-400 35.4” x 157” Heavy Duty Lathe
Swing Over Bed: 900mm / 35.4”
Swing Over Carriage: 580mm / 22.8”
Swing Over Gap: 1,100mm / 43.3”
Distance Between Centers: 4,000mm / 157.5”
Length of Bed: 6,000mm / 236”
Machine Weight: 19,000 lbs.
Spindle Speed: 7 – 1,250 rpm
Spindle Nose: ASA-A1-11
Dia. Hole Through Spindle: 104mm / 4-3/16”
Feed: Longitudinal: 0.062 – 56 mm/rev. / 0.0024 – 2.2”/ rev.
Feed: Cross: 0.031 – 28 mm/rev. / 0.0012 – 1.1”/ rev.
Thread: Metric: 56 Changes / 1 – 224 mm pitch
Thread: Inch: 36 Changes / 28 – 1/8 Threads/25.4
Max. Weight Between Centers: 2,000 kg / 4,400 lbs.
Travel of Upper Slide: 250 mm / 9.5”
Travel of Cross Slide: 480mm / 18-7/8”
Travel of Spindle: 200mm / 7-7/8””
Diameter of Tailstock Spindle: 100mm / 3-15/16”
Main Motor: 11kW / 15 HP
In/mm Threading. 4-Way Carriage Rapid Transverse/ 4-Way Tool Post. Remote Control Spindle on Apron. Heavy Duty Tailstock. Central Lubrication. 18” 4-Jaw, 4” Thru Hole Chuck. Taper Attachment. Sony 2-Axis DRO. (2) Steady Rests. Work Light. Coolant Pump.
