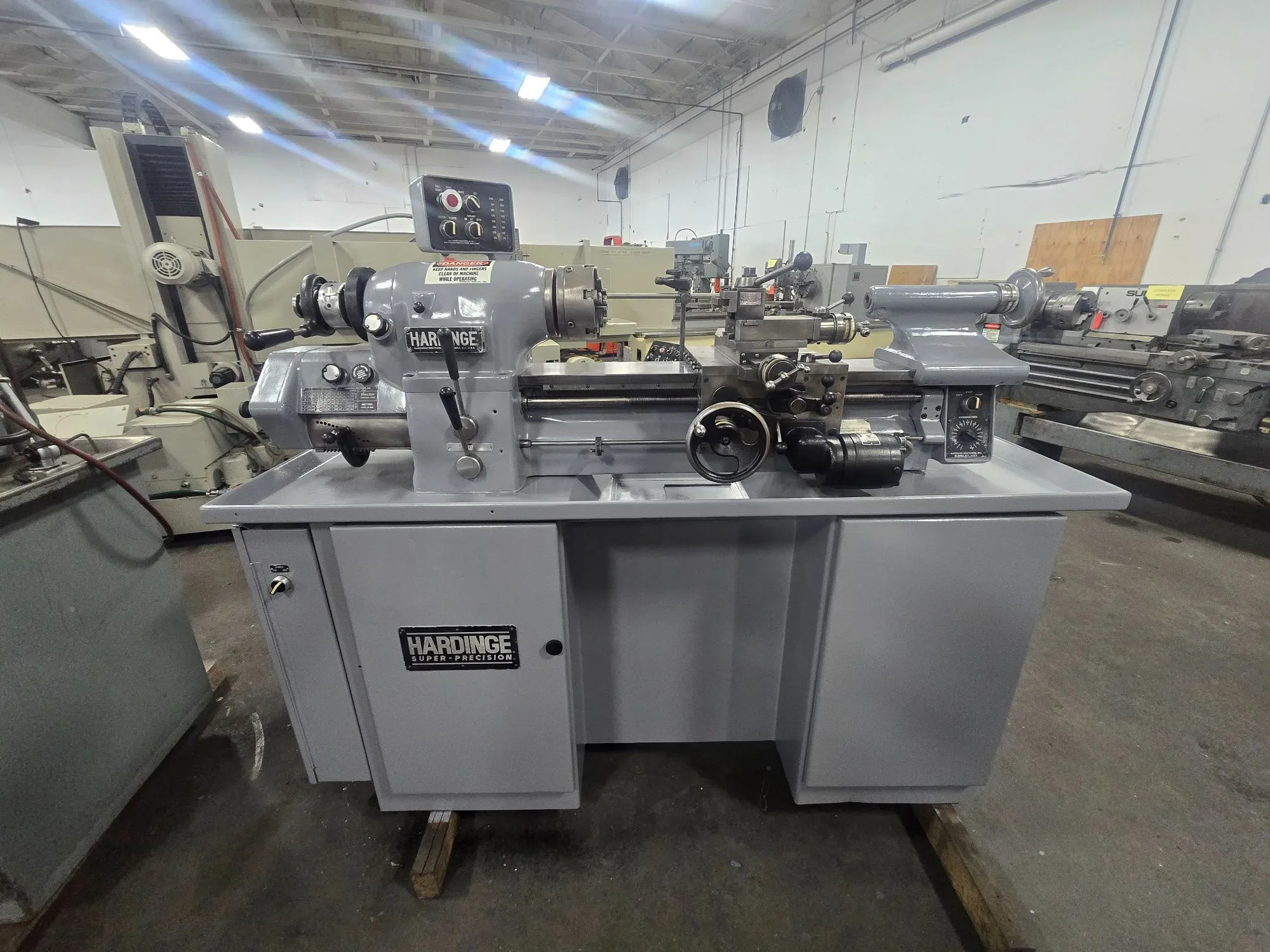

USED HARDINGE HLV-H-EM

11” x 18” Hardinge HLV-H-EM Tool Room Lathe

SPECIFICATIONS:
Spindle construction- HARDINGE ball bearing
Spindle nose- Hardinge Tapered
Spindle capacity with round type 5C collets- 1-1/16"
Spindle capacity with step chucks- 1-1/16" to 6"
Spindle capacity with jaw chucks- 5”
Spindle capacity with expanding collets- 3”
Variable spindle speeds- 125 - 3,000 R.P.M.
Hole through spindle- 1-1/4”
Swing over bed- 11”
Swing over carriage- 9”
Swing over cross slide- 6”
Distance between centers- 18”
Compound slide travel- 3”
Carriage power feed range- 5/16 – 7 I.P.M.
Cross slide power feed range- 3/16 - 4 I.P.M.
Tailstock spindle diameter- 1-3/8"
Tailstock spindle taper- #2 MT
Inch threading range in gearbox (36)- 11 - 108 T.P.I.
Metric threading range in gearbox (36)- 0.275 - 2.7 mm

EQUIPPED WITH:
Dual gearbox for precision English or Metric thread cutting
Dual reading inch/metric dial for compound and tailstock
Collet Closer
6 Jaw Chuck
Aloris Tool Holder
5c Collets
Self contained coolant system
.5 - 1 H.P. 3/60/230 volt two-speed main drive motor and electrical controls
Machine weight- 1750 Lbs.
Machine dimensions- 70’’ L x 30’’ W x 60’’ H
230 volt
