USED 2007 JOHNFORD SL-500
Overview
Specifications
| Swing | 22.8" | 579.12 mm |
|---|---|---|
| Machining Length | 31" | 787.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 17.7" | 449.58 mm |
| Tailstock | Yes | Yes |
Johnford SL500 2 Axis CNC Lathe (2004)
Spindle Power/Maximum Spindle Speed:
25 hp/3,500 RPM
Spindle Nose & Bore:
A2-8/3.4 inch
Turret - Number of Tools:
12 Stations
X-Axis Travel & Rapid Traverse:
9.80 inch/590 inches per minute
Z-Axis Travel & Feedrate:
25.6 inch/393 inches per minute
Chuck Size:
12 inches
Swing Over Bed:
22.8 inches
Swing Over Cross Slide:
17.7 inches
Programmable Tailstock & Quill:
Yes
Coolant Capacity:
30 Gallon
Overall Dimensions (L x D x H):
167.9 x 91.3 x 81.1 inches
Machine Weight:
13,640 pounds
Equipped With

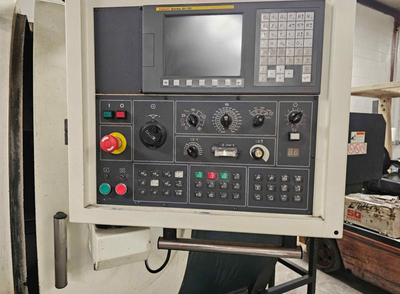

Fanuc 0itC CNC
12" 3 Jaw Hyd Chuck,
Chip Conveyor
Tailstock
Tool Presetter
Manuals
