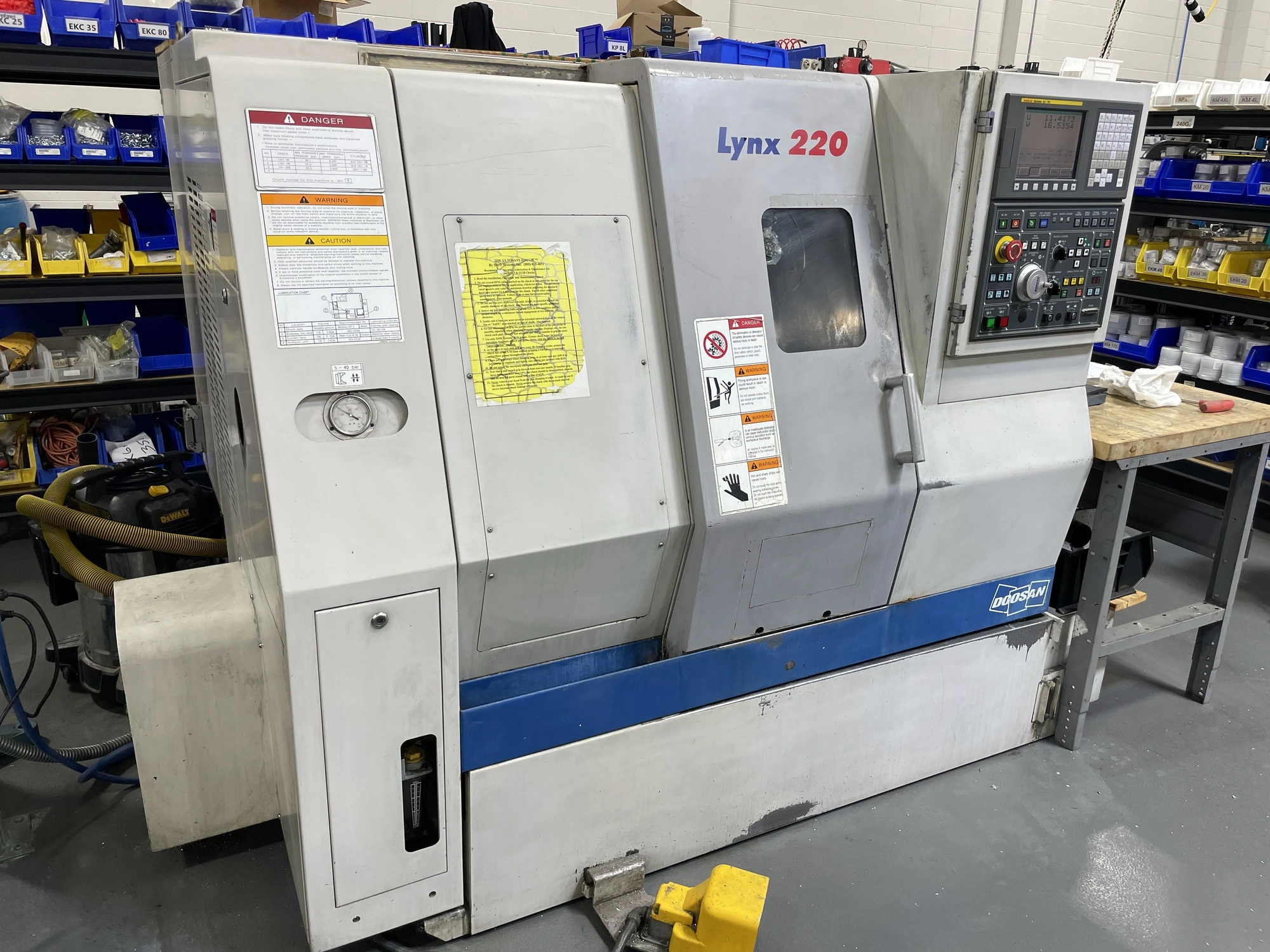

USED 2007 DOOSAN LYNX 220A CNC TURNING CENTER
Overview
Description
8" chuck, Tool Presetter, Fanuc 0iTC CNC
Specifications
| size | 8" | 8" |
|---|---|---|
| Swing | 20" | 508 mm |
| Machining Length | 12.6" | 320.04 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.09" | 53.086 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 12.6" | 320.04 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
Doosan Model Lynx 220A 2-Axis CNC Turning Center
Max Swing Over Bed: 20.08"
Max Swing Over Saddle: 11.42"
Max Turning Diameter: 12.6"
Max Turning Length: 12.68"
Spindle Speeds: 6,000 Max RPM
Spindle Drive: 20 HP
Spindle Nose: A2-5
Hole Thru Spindle: 2.09"
Hole Thru Draw Tube: 1.8" Bar Capacity
Turret Capacity: 12 Stations
Turret Travels (X,Z): 6.9" x 12.99"
Rapid Traverse Rate (X/Z): 1,181 IPM
Electrics: 208/3/60
Equipped With
Fanuc 0iTC CNC Control
Tool Eye
Spindle Orientation
8" 3 Jaw Chuck
