4 Axis, Fanuc 31
| size | 40" x 40" Pallet (2) | 40" x 40" Pallet (2) |
| X | 82.6" | 2,098 mm |
| Y | 53.15" | 1,350 mm |
| Z | 55.12" | 1,400 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 90 | 90 |
| Taper | CAT50 | CAT50 |
| Pallet-W | 1,000 mm | 39.37" |
| Pallet-L | 1,000 mm | 39.37" |
| # Axis | 4 | 4 |

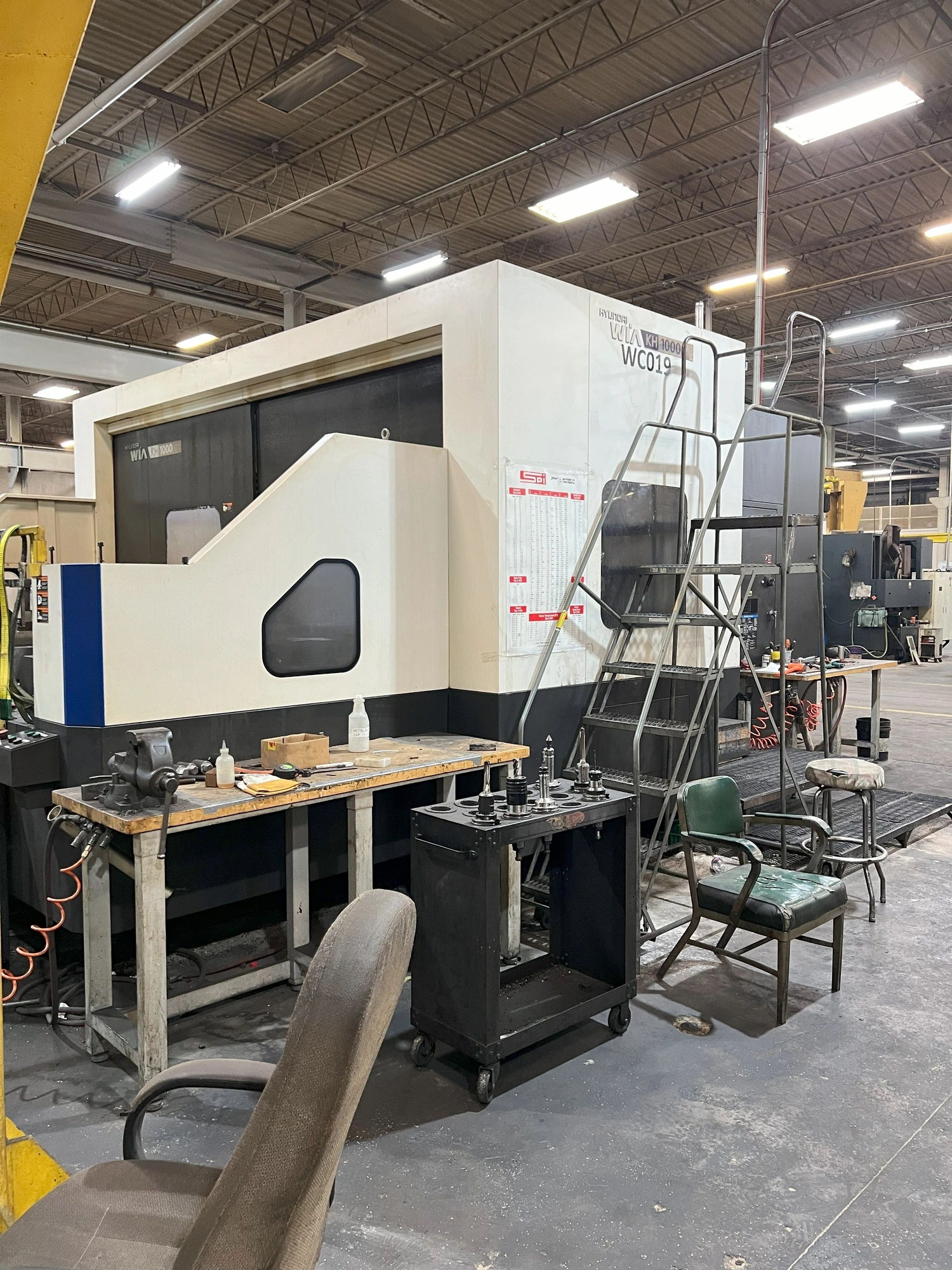

Hyundai Wia KH1000 4 Axis Horizontal Machining Center (2011)
Pallet Size
1,000 x 1,000 MM
Pallet Load
3,000 KGS
Pallet Indexing
Full B
Axis Travels - X / Y / Z
2,100 / 1,350 / 1,400 MM
Spindle Taper
CAT50
Pull stud design 45
Maximum tool length and weight: 23.6” 77lbs
Spindle Speeds
8,000 RPM
Spindle Power
26.0 / 22.0 KW
Rapid Traverse Rates - X / Y / Z
20 / 20 / 20 M/MIN
Number of ATC Stations
90
Maximum size of part through the pallet changer door: 59” tall 74.8mm dia
Fanuc 31iB CNC
High Pressure Through Spindle Coolant 1000psi
Macro B
