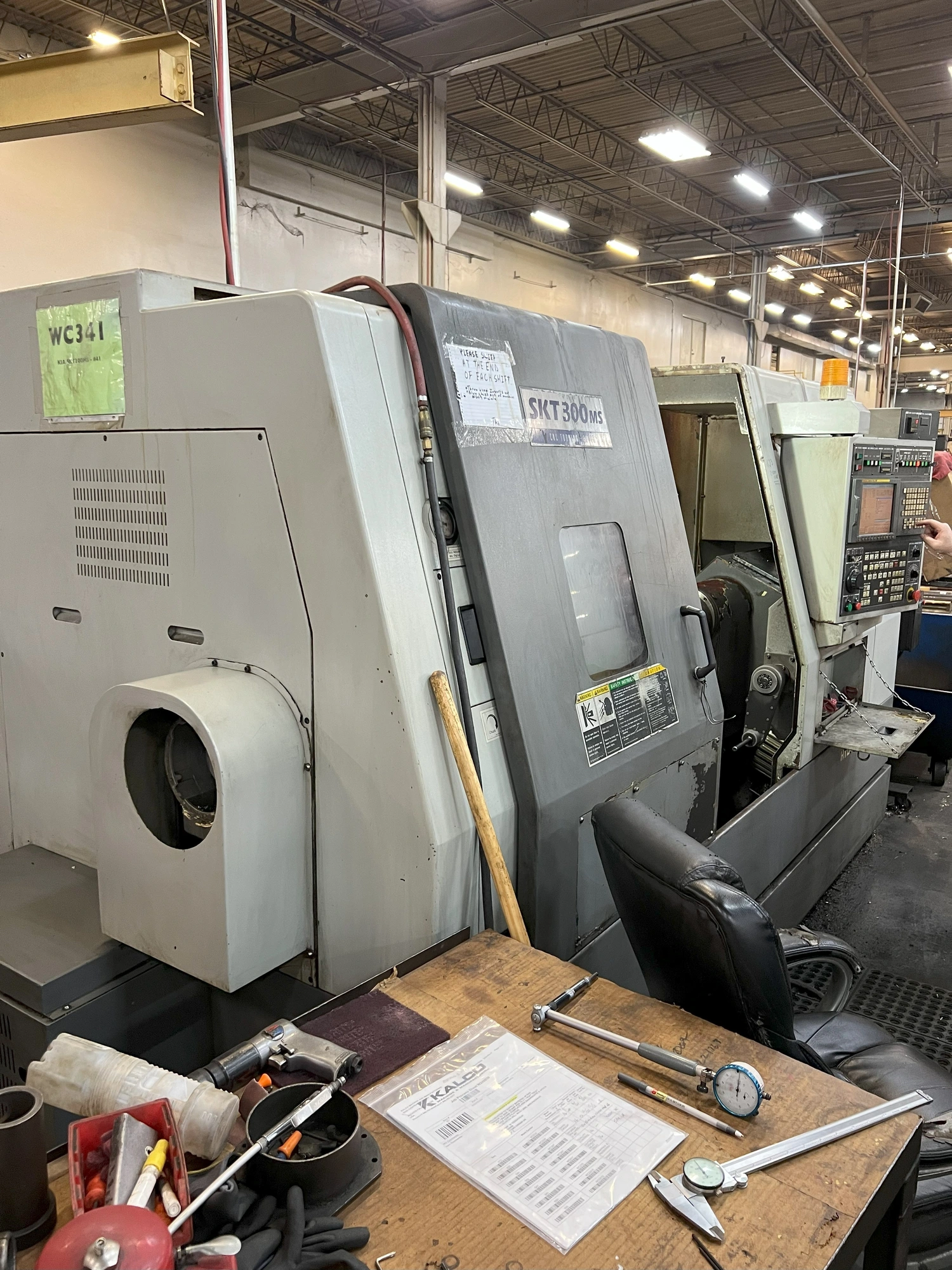

USED 2010 HYUNDAI KIA SKT-300-MS
Overview
Description
Live Tool, Sub Spindle
Specifications
| size | 12" Chuck | 12" Chuck |
|---|---|---|
| Swing | 29.52" | 749.81 mm |
| Machining Length | 26.8" | 680.72 mm |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3.54" | 89.916 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 19.7" | 500.38 mm |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Weight | 14300 | 14300 |
Hyundai Kia SKT-300MS Live Tool CNC Lathe with Subspindle (2010)
Specifications
# Axis:
5
Type of CNC Control:
Fanuc 18iT
Main Motor:
30 Horsepower
Sub Spindle Speed (RPM):
4000
Swing:
29.5 inches
Turning Diameter:
19.7 inches
Center Distance:
26.8 inches
Chuck Size:
12 inches
Sub Spindle Chuck Size:
8 inches
Spindle Speed (RPM):
3000
Live Milling Speed (RPM):
4000
Sub Spindle Speed (RPM):
4000
Spindle Nose:
A2-8
Z Axis Rapid Feedrate:
945 inches-per-minute
X Axis Rapid Feedrate:
787 ipm
Live Milling Motor:
7 HP
Live Milling (Yes / No):
yes
Bar Capacity:
3.5 inches
Sub Spindle Bar Capacity:
2.5″
C-Axis:
yes
Equipped With
Live Tool, Subspindle, installed on 11/02/2010 / running and cutting parts / 12/6 chuck package / 12 station BMT-65 live tooling/
