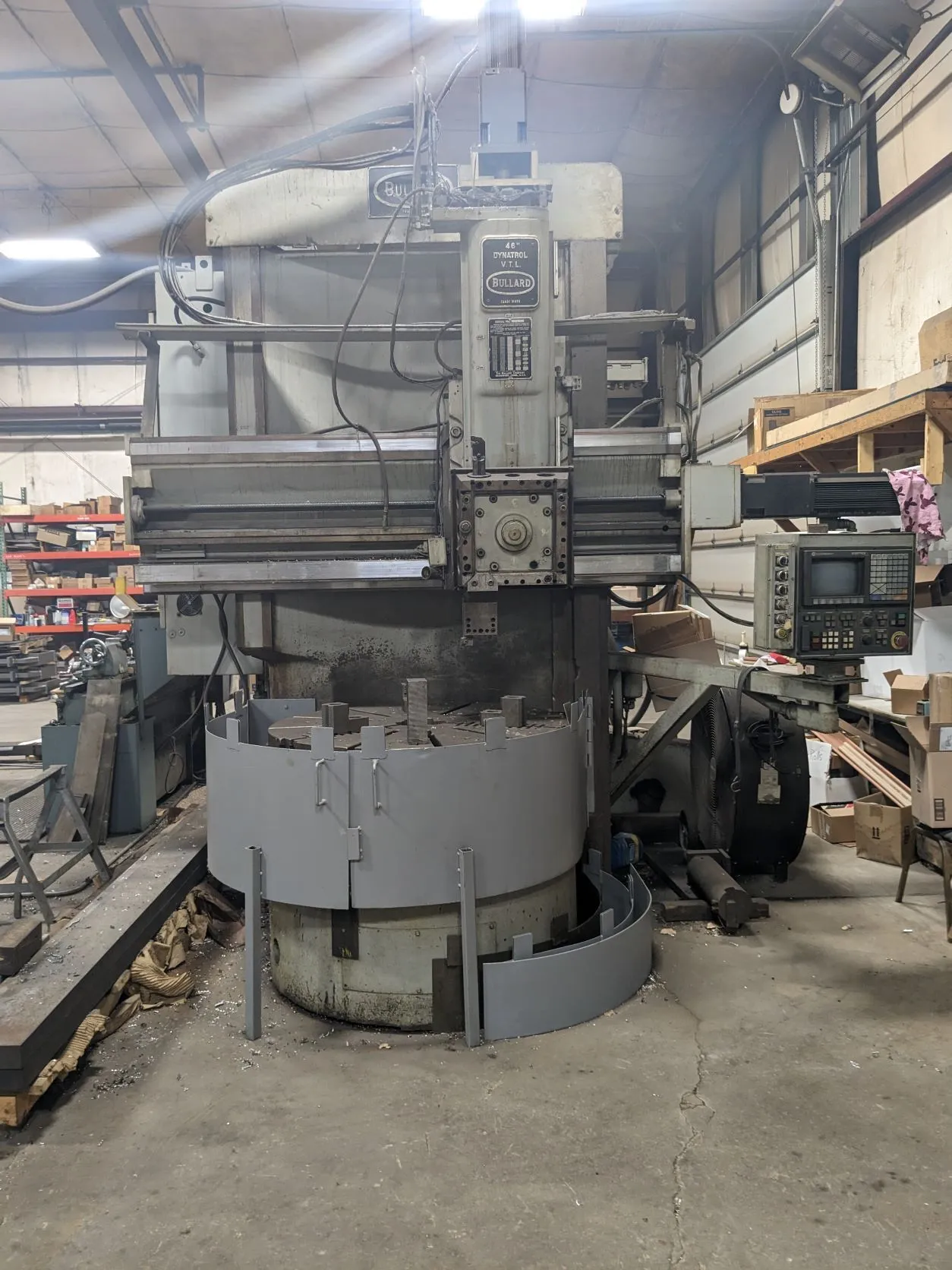

USED 1971 BULLARD 46" DYNATROL
Overview
Description
46" 4 Jaw Table, 58" Swing, 48" Under Rail
Specifications
| size | 46" | 46" |
|---|---|---|
| Table Dia | 46" | 1,168.4 mm |
| Swing | 58" | 1,473.2 mm |
| Work Ht-U/R | 40" | 1,016 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 250 RPM | 250 RPM |
| Dimensions | 136″ x 114″ x 13' 1" | 136″ x 114″ x 13' 1" |
| Weight | 46000 | 46000 |
46" Bullard Dynatrol Adjustable Rail Vertical Turret Lathe
Model ............................ 46 Dynatrol
Year ............................. 1971
Table Diameter ................... 46” 4-Jaw Chuck
Maximum Swing .................... 49”
Maximum Swing .................... 58”
Height Under Rail ................ 40”
Rail Adjustment .................. 30”
Table Speeds ..................... (20) 6.83 To 250 Rpm
Feeds............................. .001; To .250; Per/Rev
Vertical Travel Of Turret ........ 26”; Vertical
Turret Travel On Rail ............ Right 31”; ; Left 34-1/2”
Turret Swivel .................... 30 Degrees, Right Or Left
Side Head Travels ................ 38-3/4” Vertical ; 23-3/4” Horizontal
5-Position Turret Head On Rail ... Yes
Equipped With Tda (Thread Cutting, Drum Scoring, Angle Turning)
4-Position Tool Post On Side Head. Yes
Rapid Traverse All Directions .... Yes
Automatic Lubrication ............ Yes
Motor ............................ 50 Horsepower
Current Electrical Arrangement 444/3/60
Equipped With
Allen Bradley Series 9 Control
