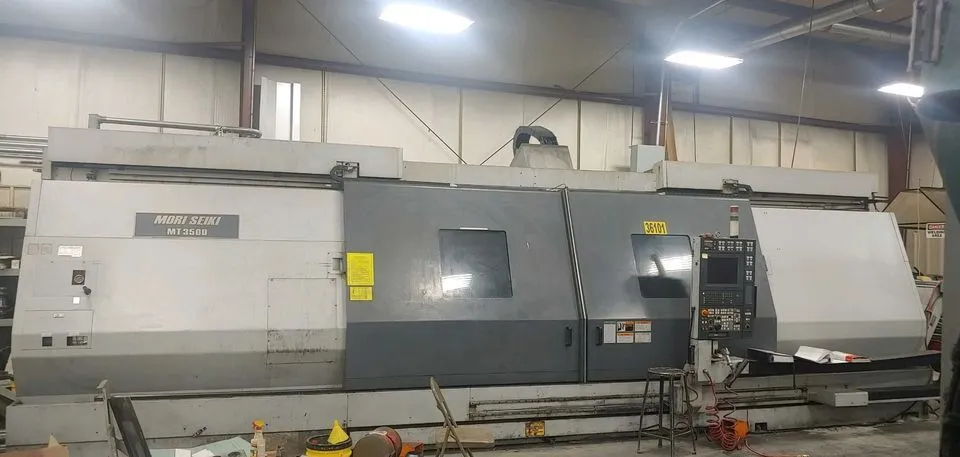

USED 2005 MORI SEIKI MT-3500S/3500

Mori Seiki MT3500S/3500 8-Axis CNC Turning Center (2005)
C-Axis: Yes
Spindle Nose: A2-8
Y-Axis: Yes
Live Milling Max RPM: 8000 RPM
B-Axis: Yes
Tool Positions: 120
Live Tooling / Milling: Yes
Single Turret: Yes
Bar Capacity: 3.75 inches
Single Turret Live Tooling: Yes
Distance Between Centers: 125 inches
Sub-Spindle: Yes
Max Swing Over Bed: 31.5 inches
Turret Options: Capto C6
X-Travel: 25 inches
2nd Chuck Description: 3-Jaw Chuck
Z-Travel: 125 inches
Second Chuck Size: 12 inches
B-Axis Travel: +/- 4.3" inches
Second Spindle Speed: 4000 RPM
Rapid Traverse: 944/1181 IPM
Second Spindle Motor: 20 HP
Chuck Description: 3-Jaw Chuck
Second Spindle Bore: 4.1 inches
Chuck Type: Hydraulic
Second Spindle Nose: A2-8
Chuck Size: 12 inches
Max Cutting/Turning Diameter: 22.4 inches
Total Spindles: 2
Max Turning/Cutting Length: 125 inches
Spindle Speed: 3,000 RPM
Steadyrest Type: Pneumatic
Spindle Motor: 40 HP
Additional Machine Specs: Y-Axis Travel: +/- 4.3"
Universal Head
(2) 12" Programmable Turn Through Steady Rest
C-Axis Synchronize Function
120° B-Axis Travel
Cool Jet High Pressure Coolant System (1000 PSI)
Hydraulic Unit
B-Axis Universal Head Swivel: 120°
Universal Head Rotary Tool Horsepower : 15 HP
Universal Head Rotary Tool Spindle Speeds: 8,000 RPM
C-Axis on Both Spindles: .001°
Spindle Bore: 4.1 inches
Control Make/Model: Mori Seiki MSX-501 (Fanuc 18iTB)
Additional Control Options: MAPPS Software
High Pressure Coolant PSI: 1,000 PSI
Machine Options: Auto Door
Chip Removal: Chip Conveyor
Coolant Type(s): Thru-Spindle Coolant; High Pressure Coolant
Electrical: 480/3/60
