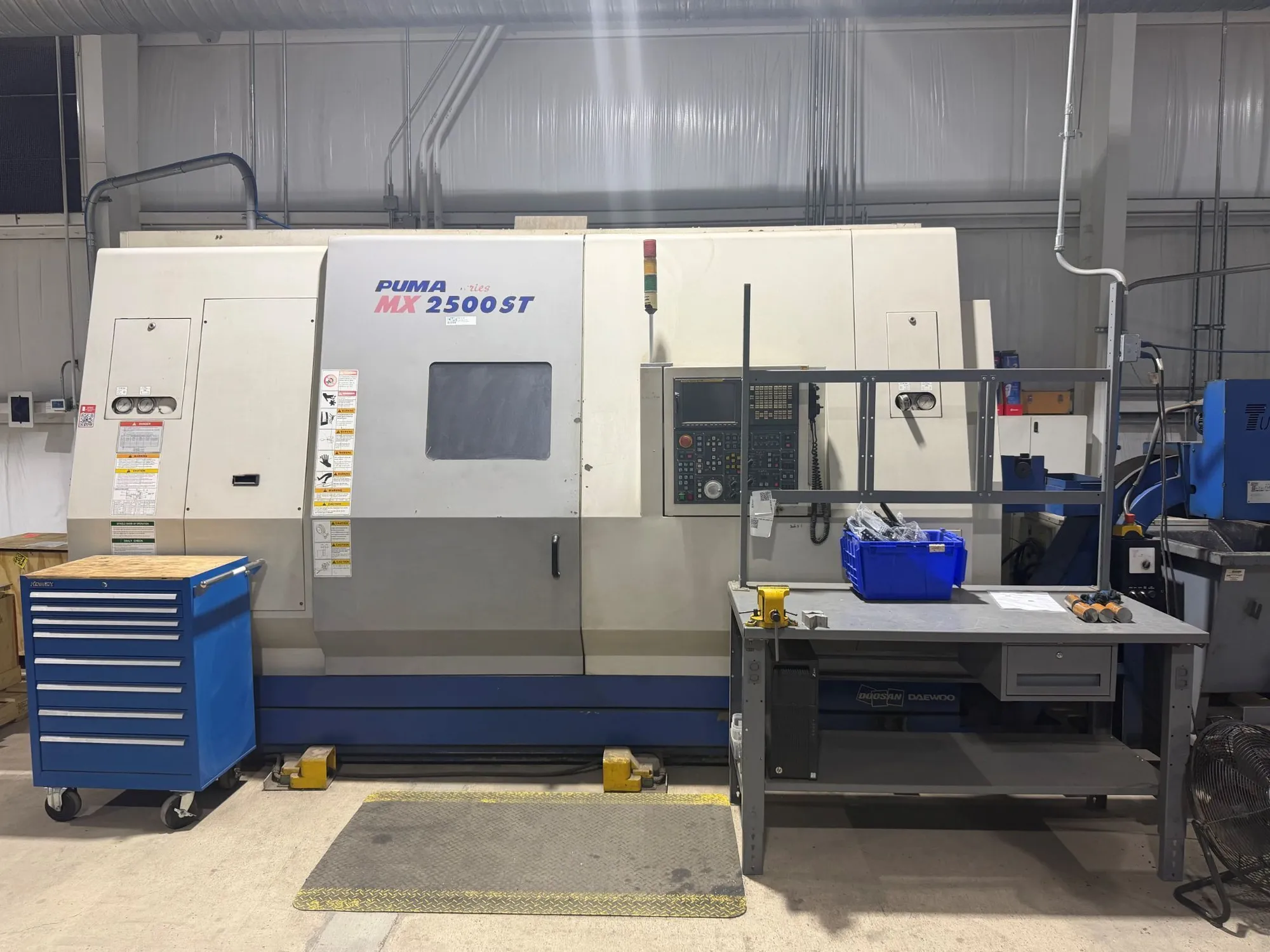

Daewoo Doosan Puma MX2500ST Twin Spindle Multi Tasking Live Tool CNC Lathe (2005) Dual Spindle, Universal Articulating Work Head, Lower Turret , Chip Conveyor
| # Axis | 8 | 8 |
| Swing | 29.52" | 749.81 mm |
| Machining Length | 40.15" | 1,019.8 mm |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3" | 76.2 mm |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 21.65" | 549.91 mm |
| Dimensions | 180" length, 91" width, 100" " height 28,500 lbs | 180" length, 91" width, 100" " height 28,500 lbs |
| Weight | 28500 | 28500 |
Doosan Model Puma MX2500ST Multi Tasking CNC Lathe
Max. Turning Diameter-Upper Turret: 23.6"
Max. Turning Length: 59.9"
Spindle Bore: 3.89" Both Spindles A2-8
Bar Capacity: 3.4"
Spindle Speed: 5,000 RPM
Milling Spindle: 10000 RPM (B Axis Index .001)
Tool Changer Positions: 40
Lower Turret Capacity: 12 Position
Rapid traverse(X/Z/Y/A-axis): 24 / 24 / 16 / 24 m/min
Main drive motor: 15 HP
Spindle Speed: 5,000 RPM
Milling Spindle: 10000 RPM
Tool Capacity: 12 TRT
Rapid Traverse Rates: 787 X/1,574 Z IPM
180" length, 91" width, 100" " height 28,500 lbs
Fanuc 18iTB CNC Control
Live Tool
12" 3-Jaw Chucks on Each Spindle
Rigid Tapping
Lower Turret
40 Position ATC
