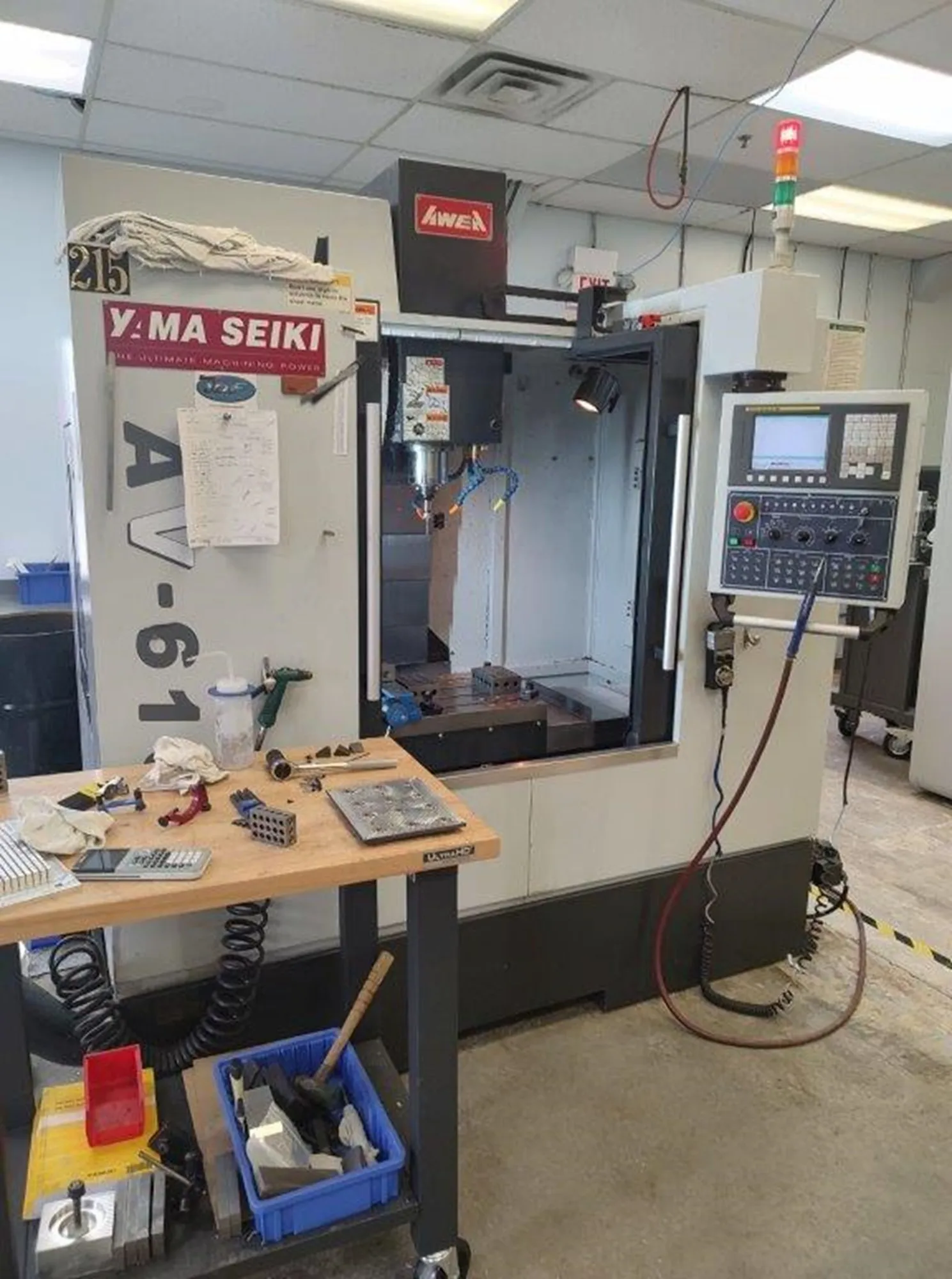

23" x 17" x 17", Fanuc 0iMD CNC
| size | 23" x 17" x 17" | 23" x 17" x 17" |
| X Travel | 23.9" | 607.06 mm |
| Y Travel | 17.7" | 449.58 mm |
| Z Travel | 17.7" | 449.58 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | 15 | 15 |
| Table-W | 17" | 431.8 mm |
| Table-L | 27" | 685.8 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc 0iMD) | CNC (Fanuc 0iMD) |
Table Working Surface 27.5" X 17.7"
Longitudinal Travel (X-Axis) 24"
Cross Travel (Y-Axis) 17.7"
Vertical Travel (Z-Axis) 17.7"
Rapid Traverse Rate, All Axes 1717 Ipm
Spindle Nose To Table 5.9" - 23.6"
Tool Changer Arm Style 24
Spindle Horsepower 15hp (30 Min Rating)
Spindle Speeds Range 10,000 Rpm
Spindle Taper Cat-40 / Bt Is Optional
Way System Linear Guideway
Table Load Capacity 1,100 Lbs
Power 220v / 3 Phase
Approximate Weight - Net 7,700 Lbs
• Fanuc 0iMD CNC Control
• 15hp Spindle Motor (30 Min Rating) • 24 Station Side Mount Tool Changer
• Rigid Tapping
• Chip Wash Down & Chip Auger
• Coolant Nozzle Around Spindle & Coolant Pump
• Full Enclosure With Roof Guarding
• Remote Mpg, Oil Skimmer, Spindle Chiller
• Heavy Duty Linear Roller Guide Ways
