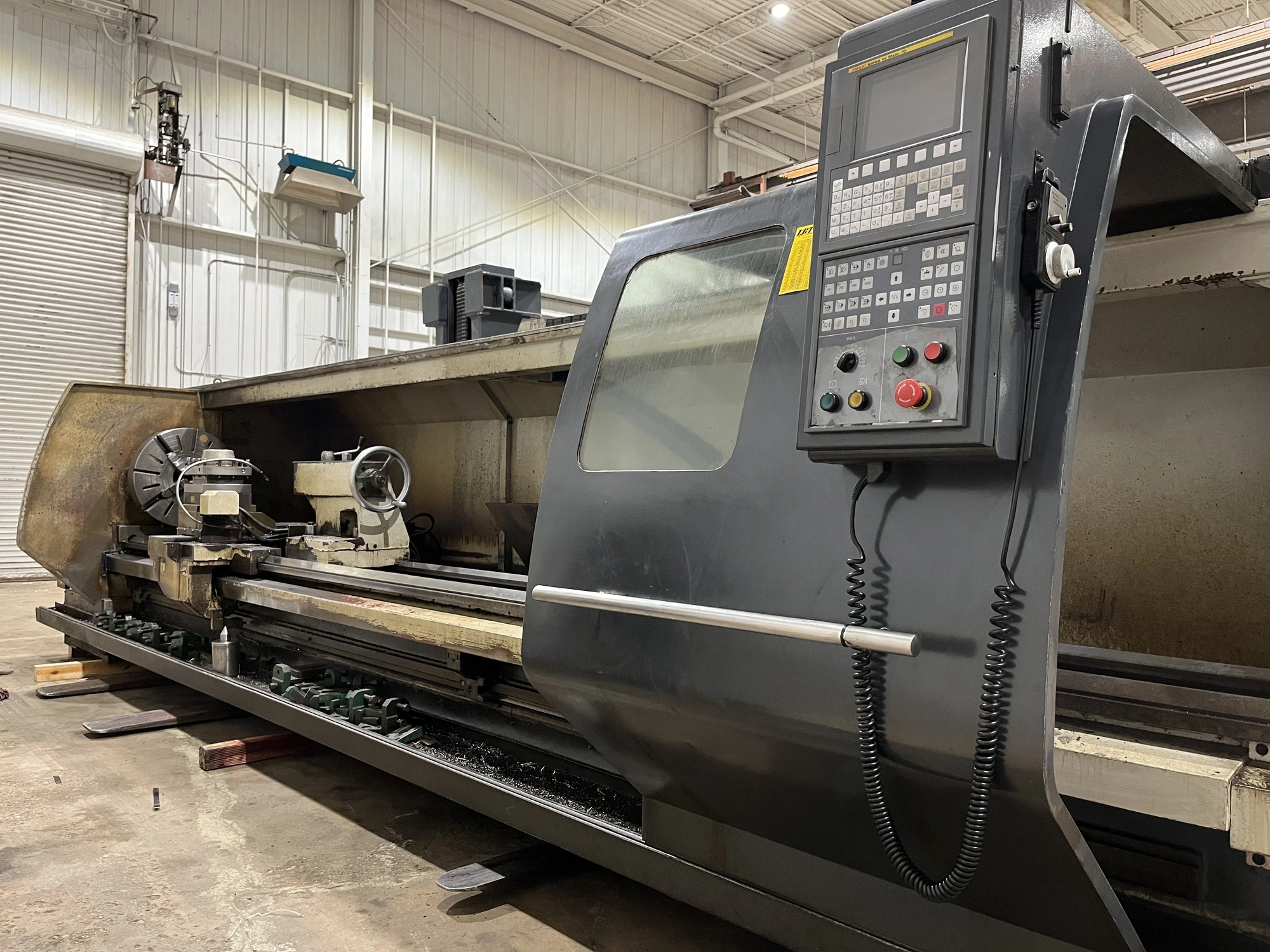

USED 2007 VANGUARD CAK80485D
Overview
Fanuc 0i Mate-TC CNC Control, 25" 4 Jaw Chuck, 32" x 191" Centers, (2) Steady Rest(s), (2) Follow Rest(s)
Specs
Vanguard CAK80485D 33” x 204" 2 Axis Flat Bed CNC Lathe (2007)
Swing over bed 33" (838mm)
Swing Over Cross Slide 20.00" ( 508mm )
Swing over carriage 18.9" (480mm)
Maximum cutting length 204" (4850mm)
Spindle bore 4.13" (104mm)
Spindle speed 17-1000 rpm (auto 4 gear range)
Turret Positions (4) SMTC Model SLD170-44 way Powered Indexable Turret
Main motor : 20HP (15 kw)
Weight 17/636 Lbs (8000kg)
Equipped With
Fanuc 0i Mate-TC CNC Control, 25" 4 Jaw Chuck, 32" x 191" Centers, 4 Position Turret SMTCL Model SLD170-4, (2) 20” 3 Point Roller Bearing Steady Rest(s), (2) Follow Rest(s), Manual Pulse Generator, Remote Jog Hand Wheel, Live Center, RS232 Communication Port, Bijur Versa 3 Automatic Lubricant System
