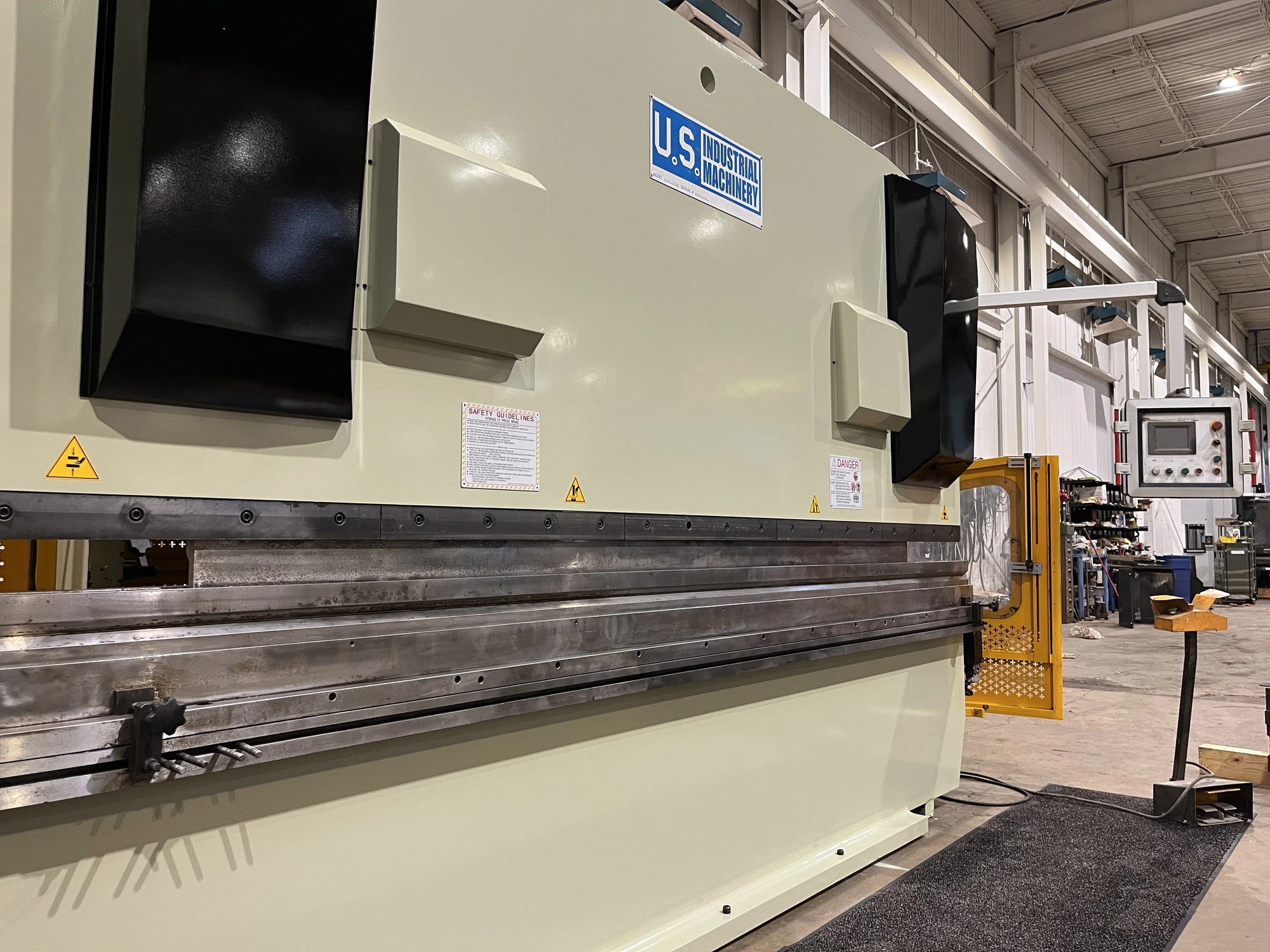

USED 2015 US INDUSTRIAL US 250 13 ACR
Overview
250 Ton x 13', 4 Axis Auto Crowning
Specs
U.S. Industrial US 250 13 ACR 250 Ton X 13’ Hydraulic Press Brake (2015)
Working Pressure: 250 Tons
Length of Working Table: 157.4"
Distance Between Housings: 124"
Throat Depth: 15.7"
Stroke Adjustment of Ram: 3.14"
Ram Travel: 7.8"
Open Height: 22"
Rapid Ram Travel Speed: 2.4" / Sec.
Rapid Ram Retreat Speed: 2.0" / Sec.
Backgauge Travel: 24"
Pressing Speed: Dependent on Tool Load
Hydraulic Oil Capacity: 108 Gal.
Motor Horsepower: 25 HP
Net Weight: 39,683 lbs.
Length: 179"
Width: 75"
Height: 108" (111")
Flush Floor No Pit Required
Required Oil: AW46 Hydraulic Oil is required
Control password 3502117
Electrics 230/3/60
Equipped With
4 Axis CNC Controlled, Auto Crowning
Controls BOTH Bend Angle and Backgauge Position. Comes with 6” LCD touch screen. Code and Graphic programming included. Graphic allows 10 bends per program/cross-section. Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup.
Sick Model 4000 Light Curtain System
CNC Controlled Third Axis (Back Gauge Height)
CNC Controlled Mechanical Auto Crown
Flush Floor No Pit Required
