| Table-W | 15" | 381 mm |
| Table-L | 62" | 1,574.8 mm |
| Travel-Long | 34" | 863.6 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,300 RPM | 1,300 RPM |

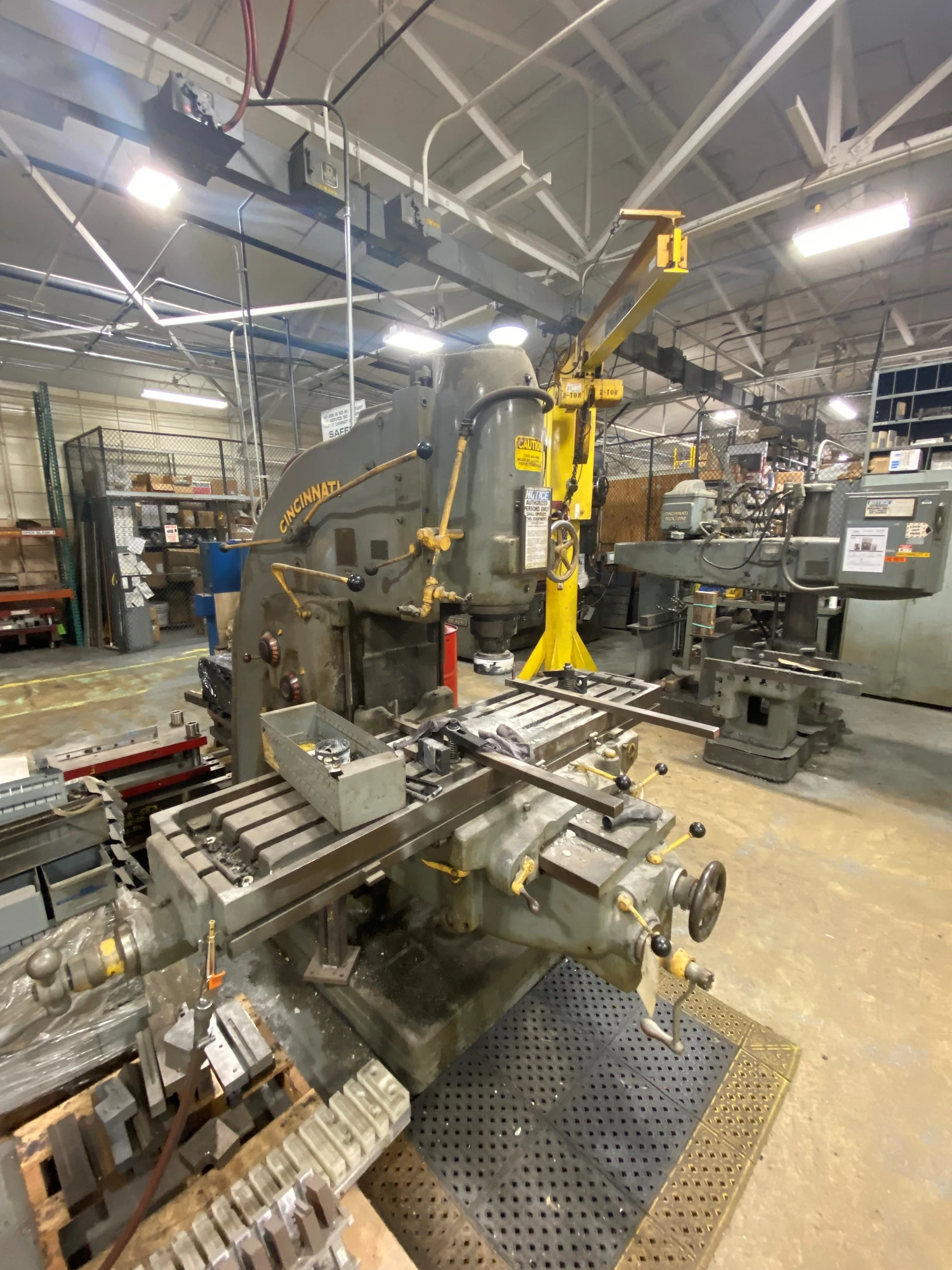

Cincinnati no. 3 Vertical Mill
Table Size: 62.5″ x 15.25″
T-Slots (Number and Size): Three – 13/16″ (.8125″)
Distance between T-Slots: 3.75″
Range
Longitudinal: 34″
Cross: 12″
Vertical: 20″
Pulley Speed: 600 rpm
HP: 7.5-10
Max Spindle Speed: 1300 rpm
Floor Space: 114″ x 114″
Aprox Weight: 8,480 lbs
