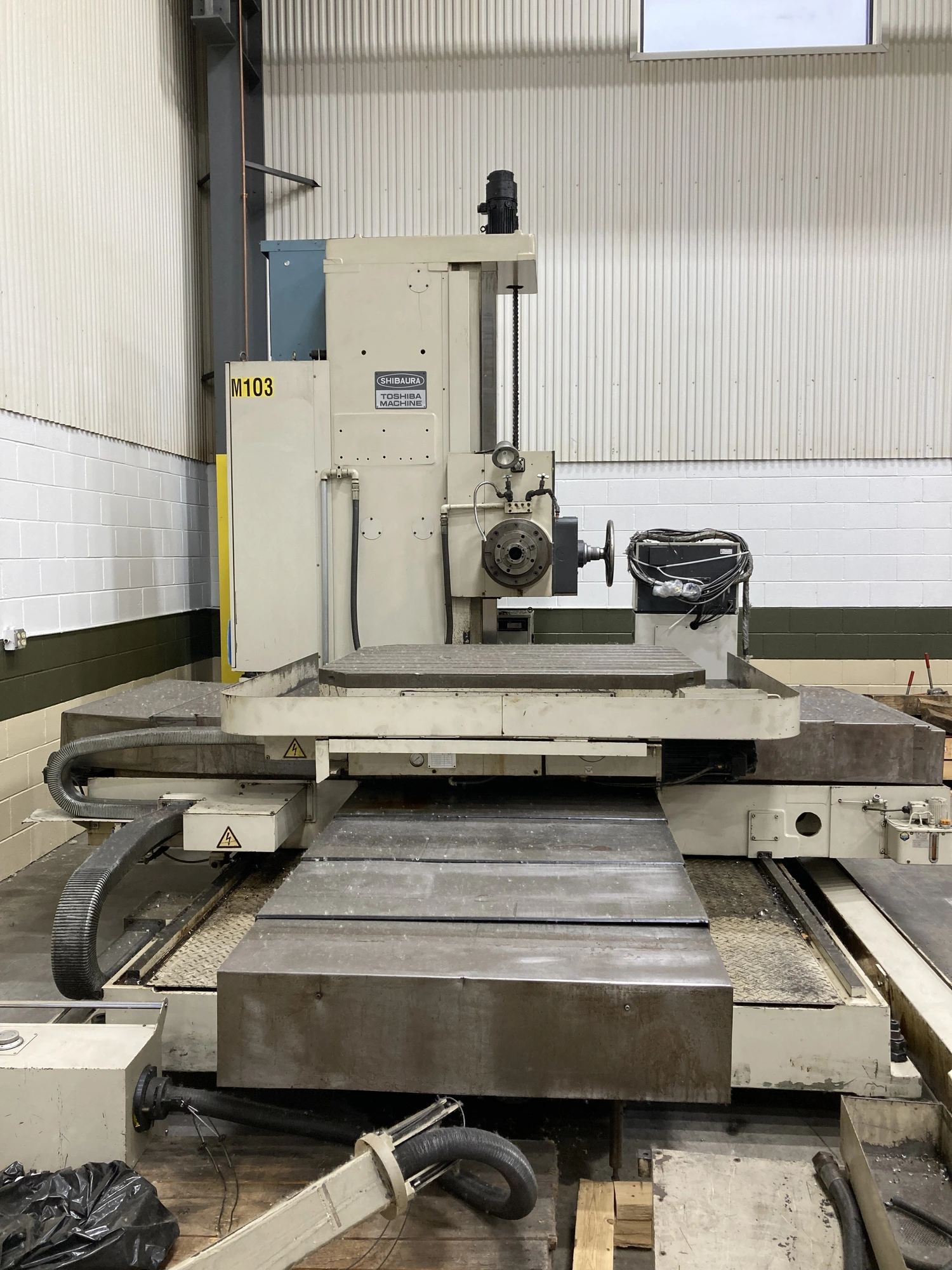

4.33", 78" Cross, 59" Y Travel, Tosnuc 3 Control
| size | 4.33 | 4.33 |
| Spindle Size | 4.33" | 109.98 mm |
| X-Horiz Tvl of Table | 78" | 1,981.2 mm |
| Y-Vert Tvl of Head | 59" | 1,498.6 mm |
| Table-W | 55" | 1,397 mm |
| Table-L | 63" | 1,600.2 mm |
X Axis 78” Cross
Y Axis 59” Vertical
Z Axis 51” In/Out
W Axis 25” Spindle Travel
4th Axis
2 Axis Positioning
13,890 Lb. Table Capacity
55” X 63” Rotary Table T-Slotted
Shot Pin Each 90 Degrees
1600 Rpm Spindle Variable
4.33” Spindle
Spindle: Cat 50 (No Tools)
55” X 63” Rotary Table T-Slotted
Shot Pin Each 90 Degrees
1600 Rpm Spindle Variable
4.33” Spindle
Spindle: Cat 50 (No Tools)
Coolant Guard Around Table.
Coolant Tank And Pump
Auger Chip Conveyor Under Table.
Lift Up Chip Conveyor
Voltage: 200/220 Volts 3 Phase
Tosnuc 3 Control
