| size | 15" chuck | 15" chuck |
| Swing | 30.3" | 769.62 mm |
| Machining Length | 44.7" | 1,135.4 mm |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 6.5" | 165.1 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Turning Dia | 21.7" | 551.18 mm |
| Tailstock | Yes | Yes |

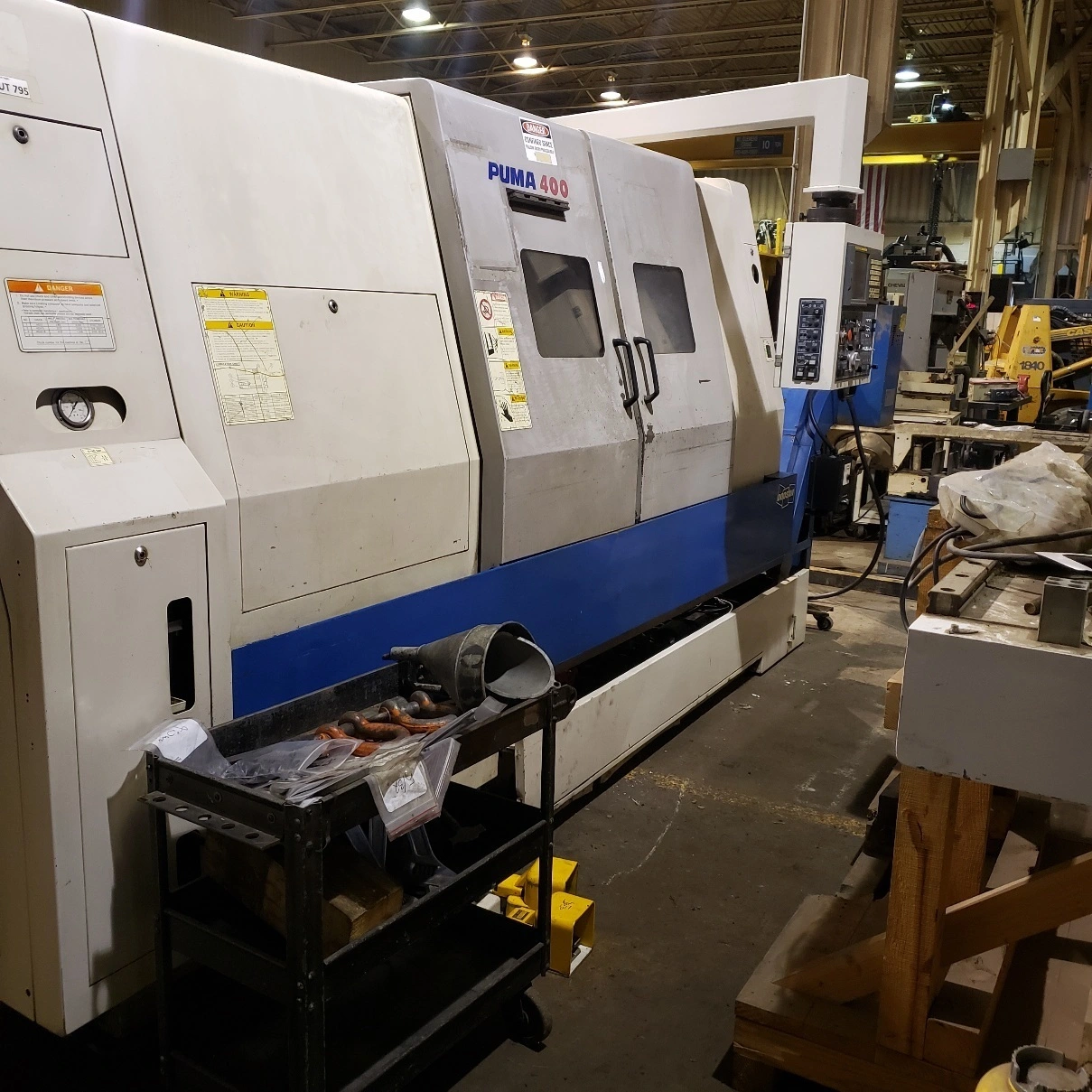

Doosan Puma 400C CNC Lathe (2007)
Swing Over Bed: 27.5″
Swing Over Saddle: 23.2″
Max Machining Length: 40.3″
Max Machining Diameter: 21.6″
Distance Between Centers: 44.7″
X-Axis Travels: 14.3″
Z-Axis Travels: 43.5″
Spindle Speed: 15 – 1,500 Rpm
Spindle Bore / Bar Capacity: 7.12″ / 6.55″
Spindle Motor: 50 Hp
Turret Stations: 12
Machine Length - 13 FT
Width - 6 FT 6 IN
Height - 7 FT 8 IN (On 4”)
Chip conveyor & pan -
Length - 12 FT 6 IN
Width - 4 FT 8 IN
Height - 5 FT 7 IN
Turbo Systems Chip Conveyor Model
15" Schunk Hyd .Chuck
Tailstock
Fanuc 21itb Cnc Control
