| size | 20" x 30" | 20" x 30" |
| Swing | 20" | 508 mm |
| Centers | 30" | 762 mm |
| Workhead Speed | 95 RPM | 95 RPM |
| Grinding Wheel Dia. | 14" | 355.6 mm |

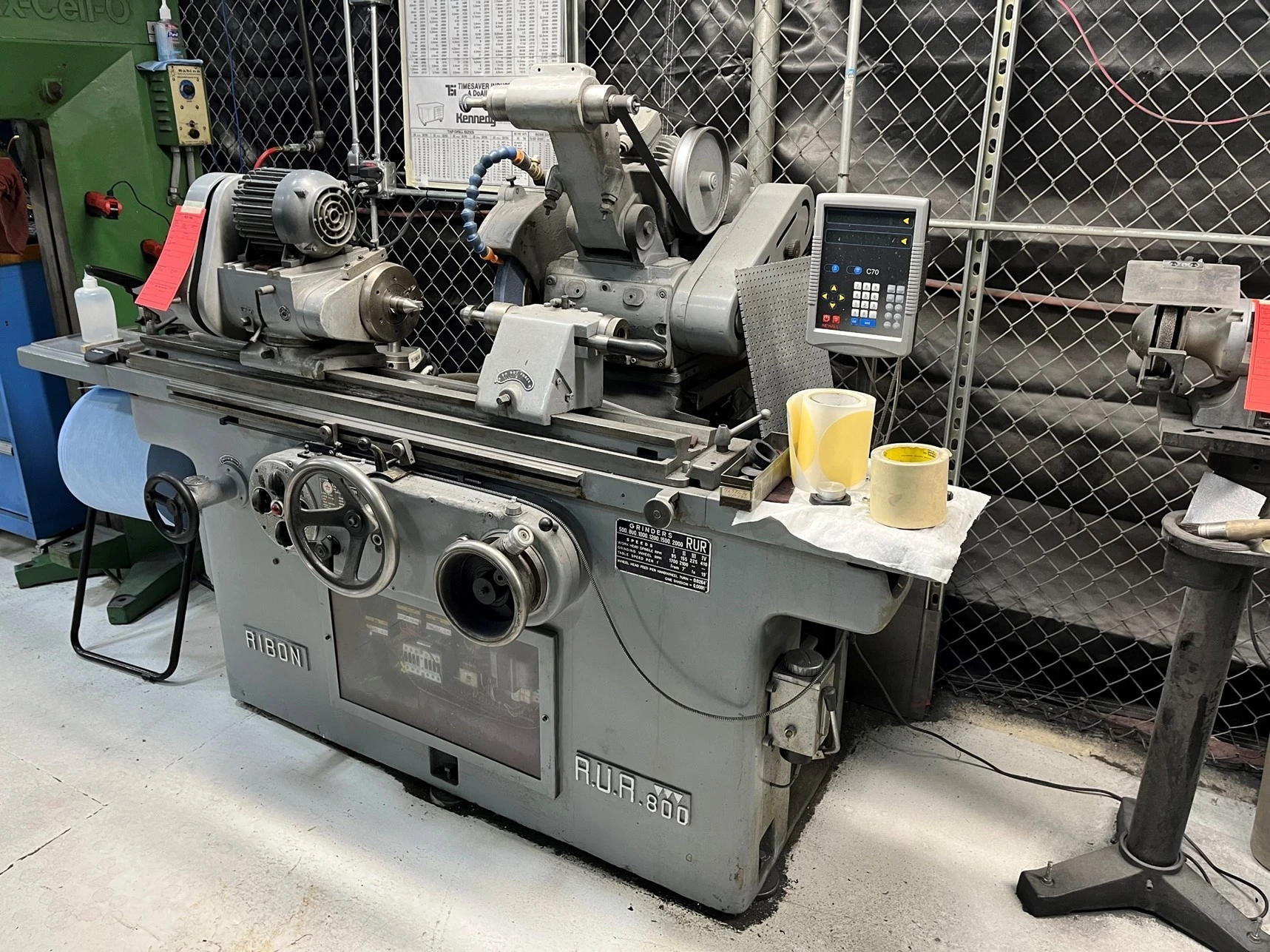

Ribon RUR.800 Universal Cylindrical Internal Grinder (1994)
Grinding diameter : 320 mm.
Grinding length : 800 mm.
Centre height : 160 mm.
Grinding wheel size : 35 x 360 mm.
Speeds of grinding spindle : 1700 U/min.
Power capacity – grinding motor : 4,0 kW.
Turning speed range – workpiece spindle : 35 – 310 U/min.
Grinding spindle head – swiveling : + – 90 °.
Grinding head swiveling : -30 / +90 °.
Workpiece weight max. : 70 kg.
Voltage : 380 V.
Total power requirement : 5,5 kW.
Weight of the machine ca. : 2000 Kg.
Dimensions of the machine ca. : 2,40 x 1,30 x 1,50 m
