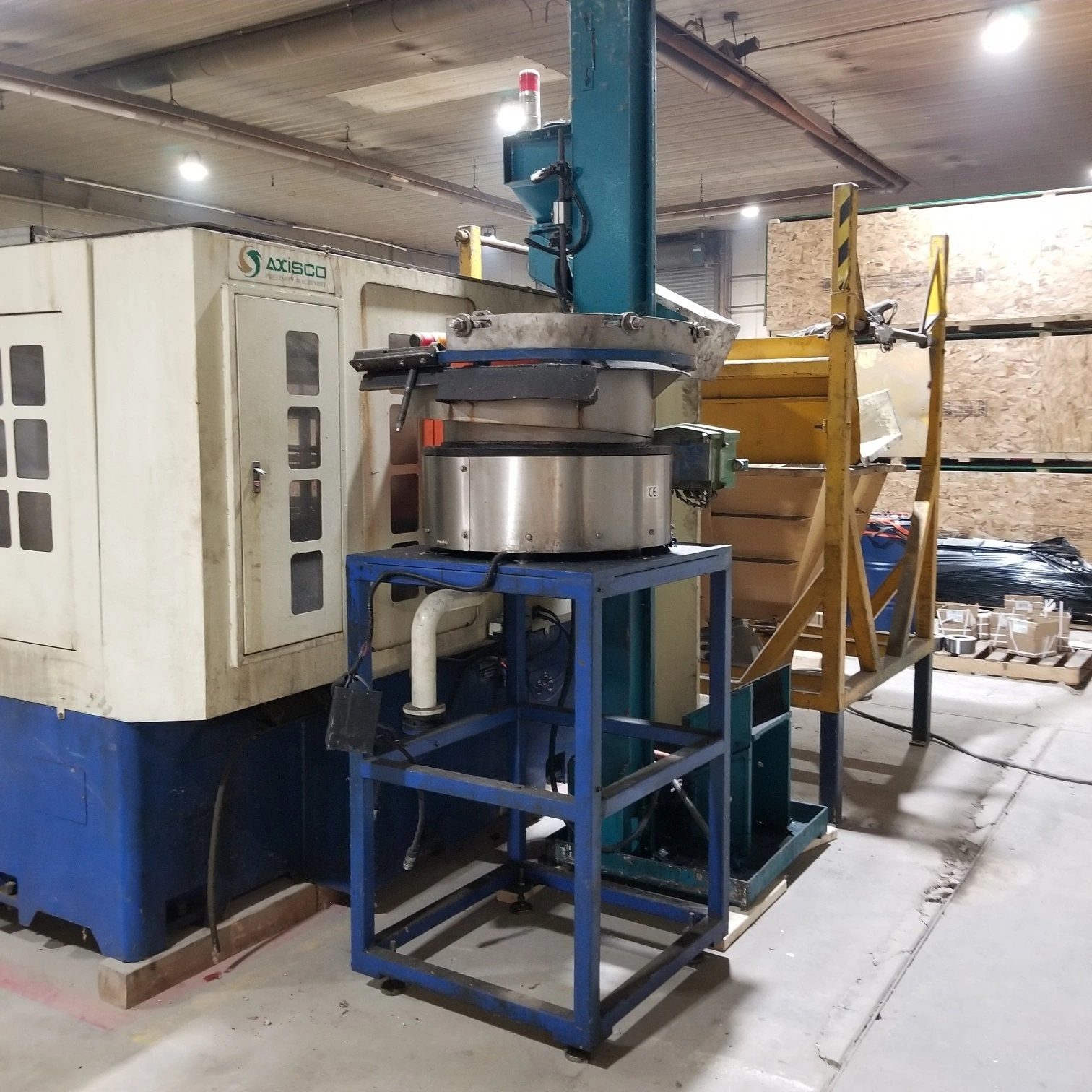

USED 2013 AXISCO BA-GRV-200

8 Ways 5 Station, Hydraulic Auto Rotary Table SPM. Many kinds of machining requirements can be fulfilled and integrated such as drilling, boring, tapping, milling, slide-facing, turning, grooving, chamfering, polishing, burnishing, etc.
For different requirements, the machines can be designed in numerical, hydraulic, or pneumatic systems with proper tooling and fixtures.
Most kind of material, whether it is soft or hard, metal or non-metal, can be effectively machined on our SPM. Auto loading & unloading is also possible when the shape of components is simple.

Machine Function

Multi-directional facing, drilling, boring, shift-facing can be done at the same time on this rotary machine.
Components can be machined in a fast, precise, and low cost way. One time clamping ensure good accuracy. For different component sizes, the fixtures are easy to change, spindle positions are also adjustable.
Cycle time is 20~35 second per piece (depends on components). The production is stable and efficient with accurate dimensions and great surface roughness.

Axisco Ball Valve Ball Turning, Grooving, Chamfering Machine (2013)

Model Hydraulic Auto rotary Table SPM
Concentricity mm 0.05mm
Flatness mm 0.02mm
Circularity mm 0.05mm
Machining accuracy mm Ha-H9

Oil pressure dial
Indexing accuracy sec 4”
Repetitive accuracy sec 1”
Index number division 8
Surface roughness mm Ra 0.4
Coolant tank L 150L
Power supply-
Power consumption Kw 16
Machine weight kg 5263
Floor space ( LxWxH) mm L 3100x W 2100 x H 2100
Machine dimensions ( LxWxH) mm L 5700 x W 2600 x H 3250
Optional equipment or function
-vibratory feeder
-Automatic elevator conveyor
