7 Axis, CAD Man CNC Control, Dual Encoder Servo Valve Hydraulics, Y1, Y2, ( Ram Control ), Z1, Z2 (L/R Back Gauge Fingers), X ( Back Gauge In/Out ), R ( Vertical Back Gauge ), V (CNC Bed Crowning), Operator T-Stand, Electric Foot Switch, Flush Floor
| Tonnage | 190 T | 172.365 t |
| Overall Length | 14' | 4.3 m |
| Between Housings | 12' | 3.7 m |
| Stroke | 7.87" | 199.9 mm |
| # Axis | 7 | 7 |
| Weight | 32000 | 32000 |

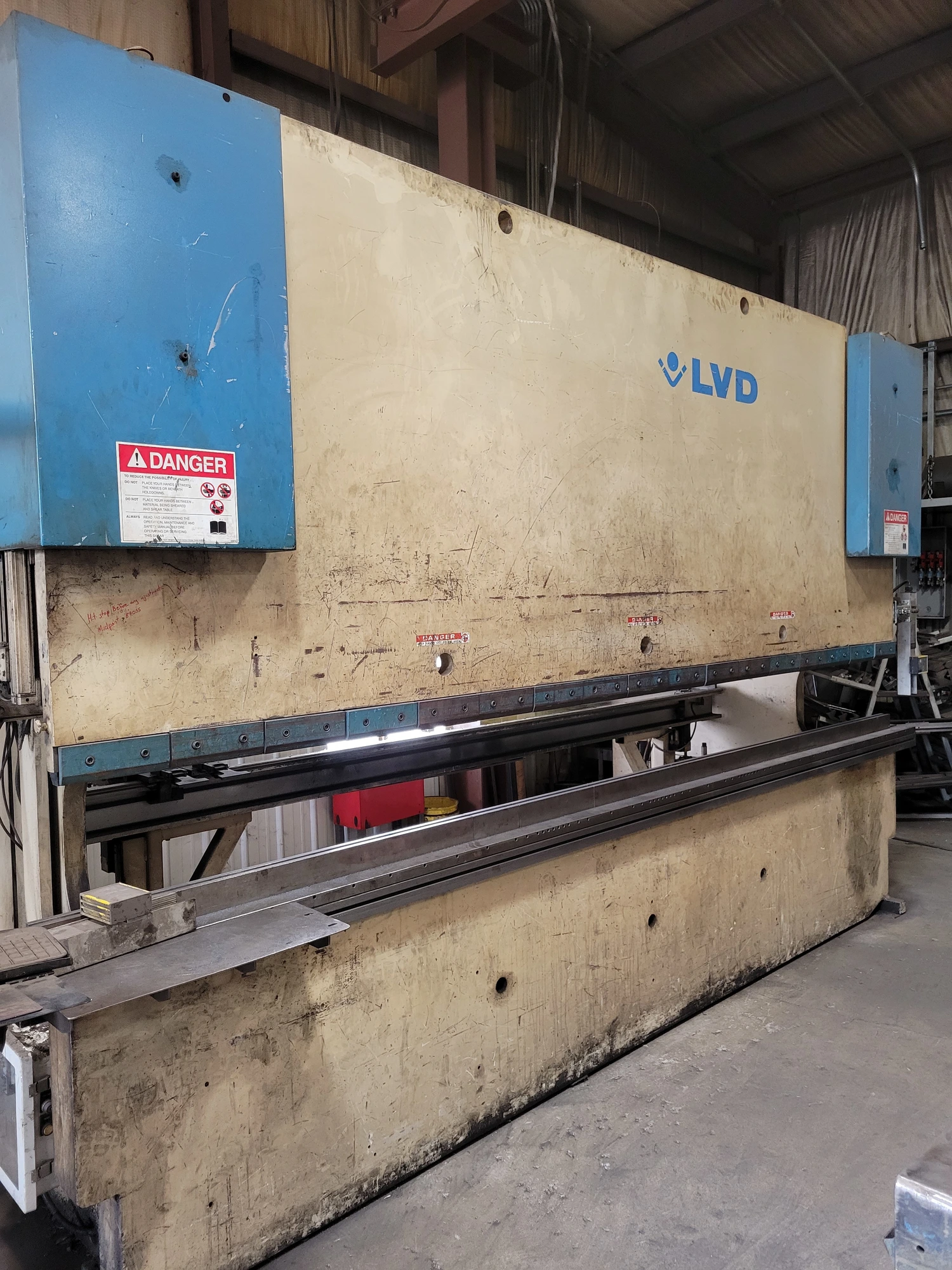

LVD PPEB190-14 190 Ton CNC Hydraulic Press Brake
Tonnage Capacity: 190 ton
Overall Bending Length 165”
Distance Between Housing 150”
Number Of CNC Controlled Axis 7
Direction Of Ram Stroke Down
Stroke Length 7.87”
Open Height 15.7”
Closed Height 7”
Throat Depth 15.9”
Main Motor Horse Power 25 HP
Approx. Weight 32,000 Lbs
7 Axis, CAD Man CNC Control, Dual Encoder Servo Valve Hydraulics, Y1, Y2, ( Ram Control ), Z1, Z2 (L/R Back Gauge Fingers), X ( Back Gauge In/Out ), R ( Vertical Back Gauge ), V (CNC Bed Crowning), Operator T-Stand, Electric Foot Switch, Flush Floor
