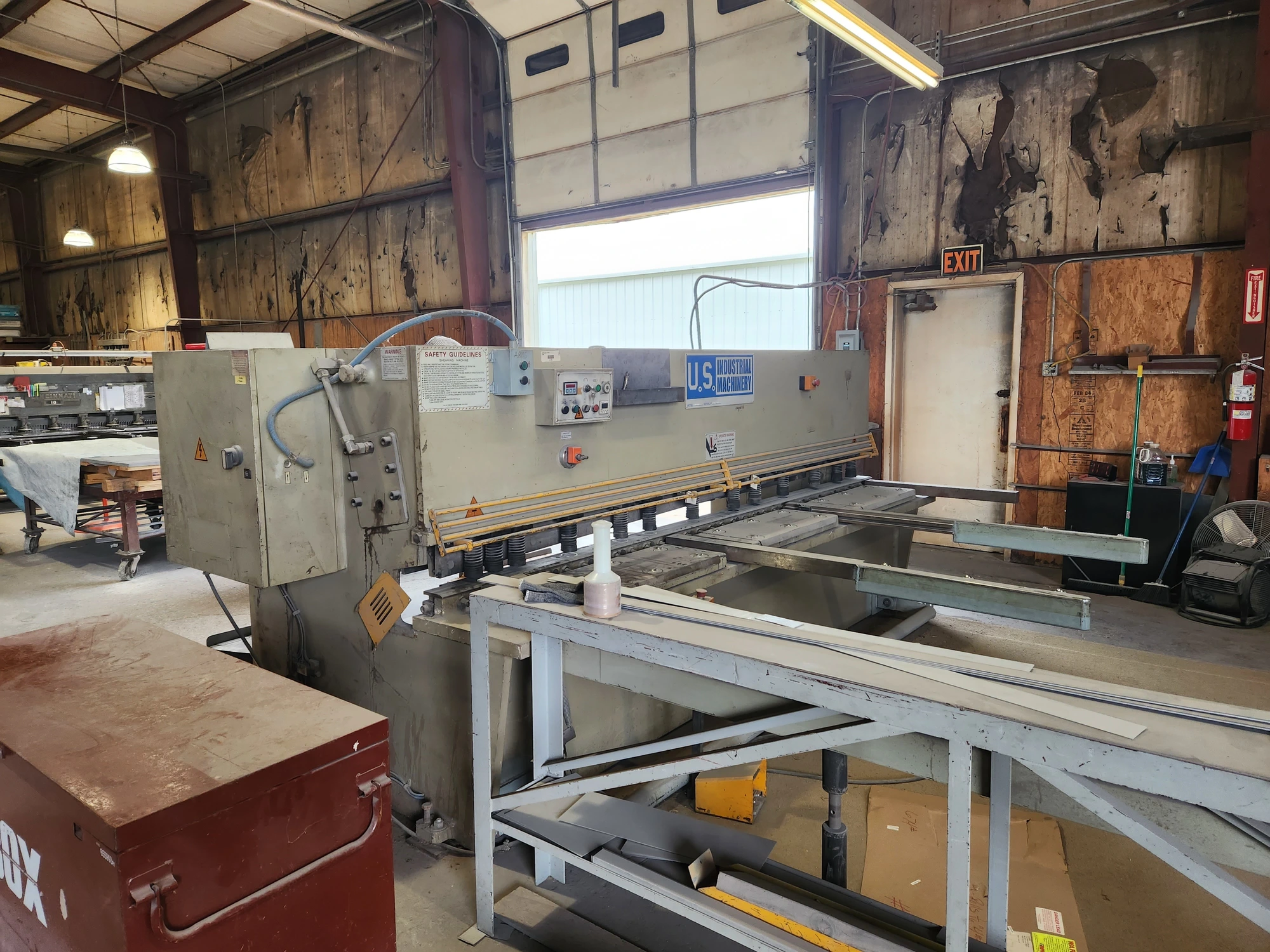

USED US INDUSTRIAL US1025PMS 1/4 X 10 SHEAR
Overview
Description
1/4 x 10, 36" Back Front Operated Power Gauge, Front Supports, Squaring Arm
Specifications
| size | 1/4" x 10' | 1/4" x 10' |
|---|---|---|
| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 10' | 3 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 36" | 914.4 mm |
| Power | 15 hp | 11.2 kW |
• Sheet Size: 126”
• Shearing Capacity: 1/4” Mild Steel @ 65,000 PSI UTS
1/8” Stainless Steel @ 95,000 PSI UTS
(Must consider option for Cr12MoV blades.)
• Shear Angle: 1 Degree 30’
• No Load Strokes: 14
• Throat Depth: 4.7”
• Adjustment Range of Back Gauge: 0.75” - 36”
• Hydraulic Oil Capacity: 71 Gal.
• Main Motor: 15 HP, 220 or 440 Volts, 3 phase, 45/22.5 amps
(Please specify your voltage requirement.)
• Net Weight: 15,550 lbs.
• Dimensions (L x W x H): 157” x 63” x 63”
Equipped With
Motorized front-operated power back-gauge with digital Readouts
Front Supports, Squaring Arm
Fine adjustment handwheel
Back-gauge adjustment range from ½” to 36”
A swing-up mechanism for cut depths larger than 36″
