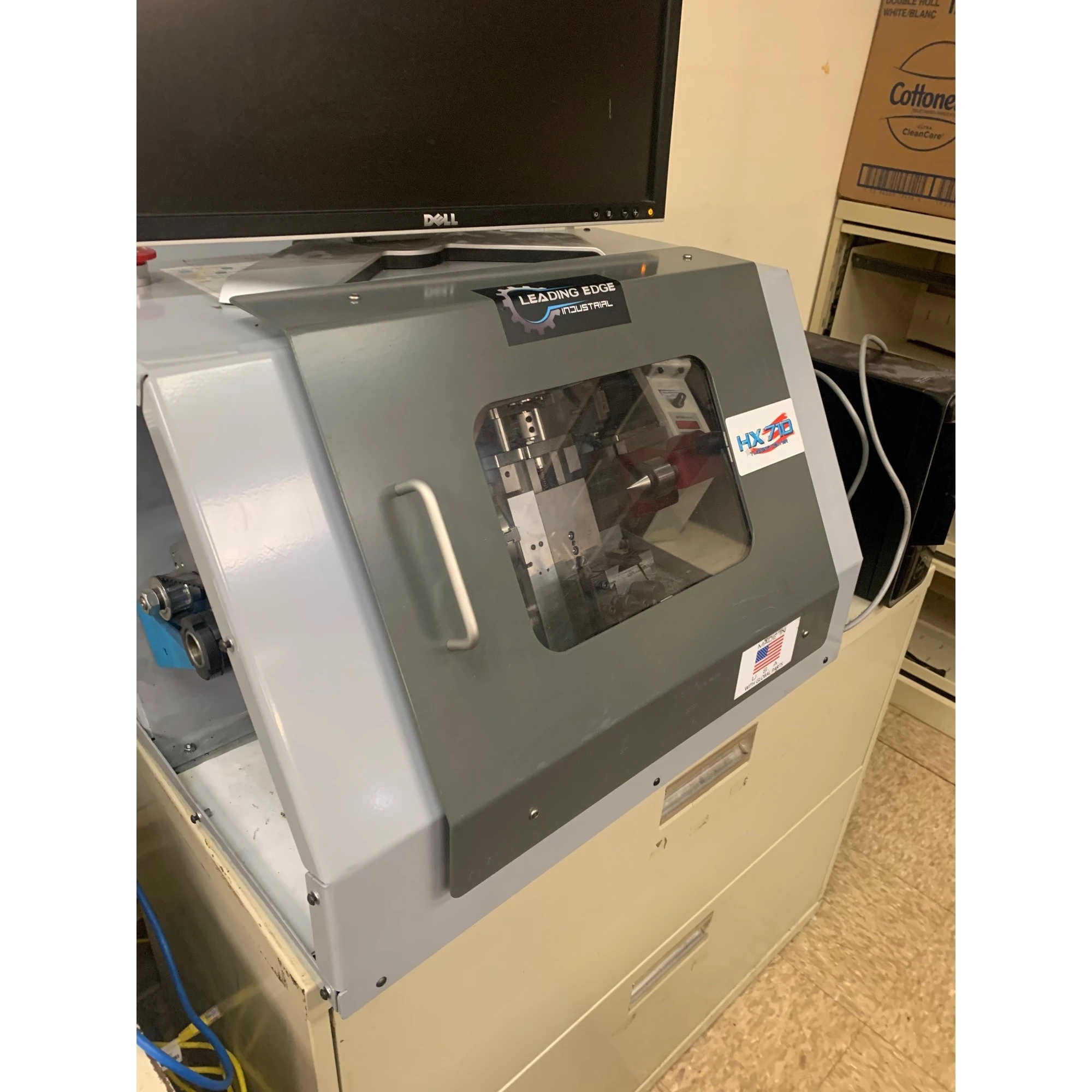

USED 2022 Leading Edge Industrial HX710
Overview
Description
The HX710 Turning Center (TC) is a compact, yet incredibly versatile, totally enclosed, Benchtop CNC lathe, suitable for all skill levels. The small footprint of the HX710 TC allows it to comfortably fit in a classroom, garage, or office environment, without sacrificing performance. This machine has been designed to operate on standard 120v power; therefore, phase converters or room modifications are not needed. The combination of a small footprint, full CNC capabilities, and affordable price make the HX710 Turning Center an excellent solution for turning a range of materials such as plastics, woods, and metals for applications in education, prototyping, and light-to-medium production.
The HX710 TC features a powerful variable speed spindle motor with two-speed ranges (0 – 1,100; 0 – 2,500 RPM) to accommodate for low-speed torque. This turning center also comes equipped with 2-axis NEMA stepper motors, precision ACME lead screws with bronze nuts, USB-based motion control, vivid LED work lighting, and an MT2 taper tailstock with a live center.
Specifications
| size | 5" chuck | 5" chuck |
|---|---|---|
| Swing | 7" | 177.8 mm |
| Machining Length | 10" | 254 mm |
| # Axis | 2 | 2 |
| Chuck Size | 5" | 127 mm |
| Bar Capacity | 0.625" | 15.875 mm |
| Power | 0.8 hp | 0.6 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
