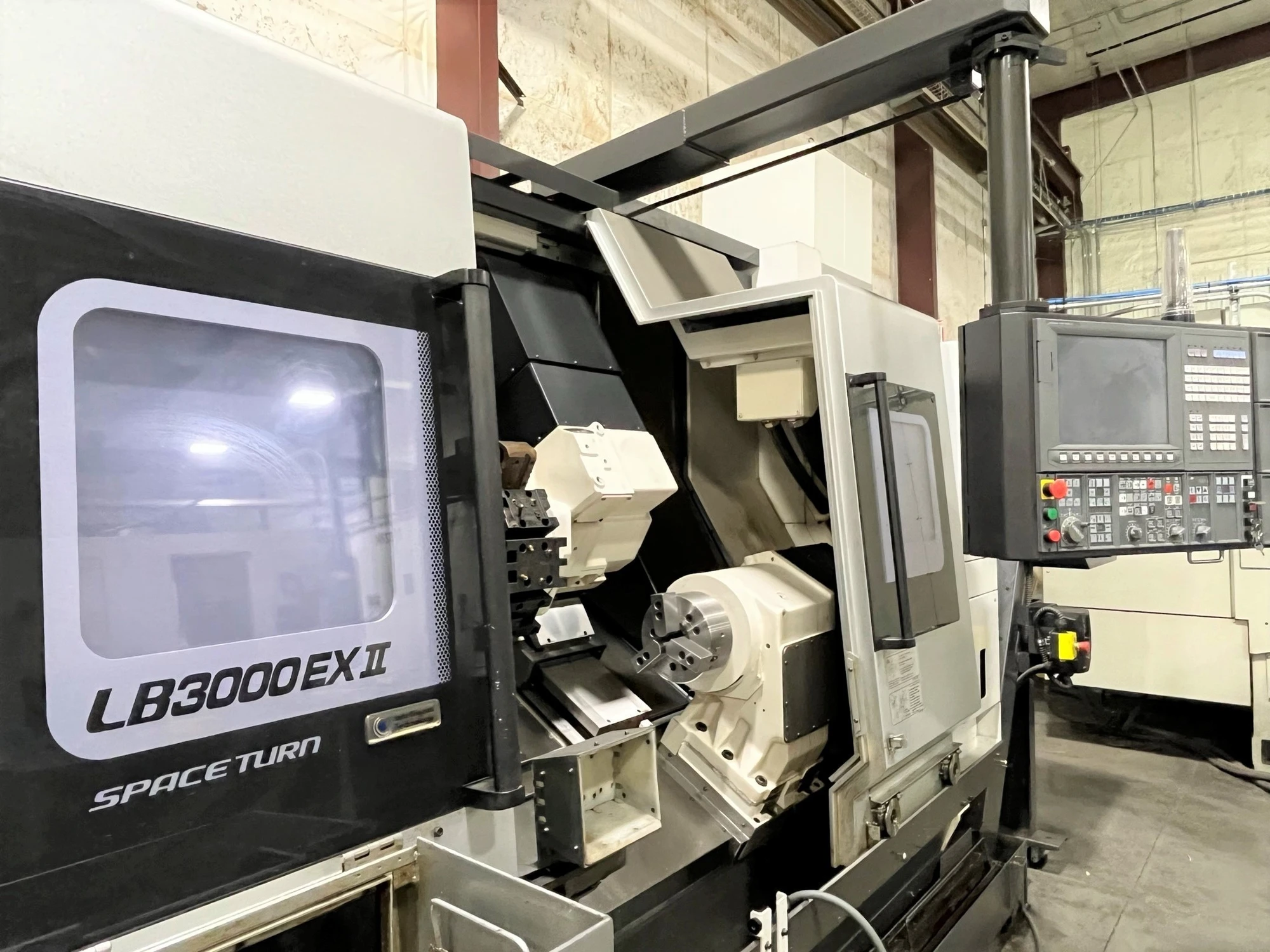

Live Tool, 800M Centers, OSP-P300LA CNC Control, SubSpindle, 3 Jaw Chuck, Tool Presetter, LNS Chip Conveyor
| size | 10" Chuck | 10" Chuck |
| Swing | 22.83" | 579.88 mm |
| Machining Length | 42.72" | 1,085.1 mm |
| # Axis | 4 | 4 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.15" | 80.01 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,200 RPM | 4,200 RPM |
| Turning Dia | 13.39" | 340.11 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
Max Swing Over Bed: 22.8"
Swing Over Saddle/Carriage: 18.5"
Max. Turning Dia.: 16.14"
Max. Work Length: 19.69"
Distance Between Centers: 20.47"
Tailstock Travel: 20.28"
X-Axis Travel: 10.24"
Z-Axis Travel: 22.24"
C-Axis Index: 0.001
Y-Axis: 4.53 +2.76/-1.77"
Spindle Speed: 42-4200 RPM
Milling Speed: 45 to 6,000
Spindle Nose: A2-6
Spindle Bore: 3.15"
Turret Capacity: V12 M-V12 NC turret
Turret Speed: 45 to 6,000
Rapid Traverse: X-984, Z-1181 IPM
Spindle Motor: 30 HP
Live Tool, 800M Centers, OSP-P300LA CNC Control, SubSpindle, 3 Jaw Hydraulic Chuck, Tool Presetter, LNS Chip Conveyor
