| size | 110 ton x 10' | 110 ton x 10' |
| Tonnage | 110 T | 99.79 t |
| Type | HYD | HYD |
| Overall Length | 122" | 3.1 m |
| Between Housings | 8' | 2.4 m |
| Stroke | 3.93" | 99.822 mm |
| # Axis | 3 | 3 |

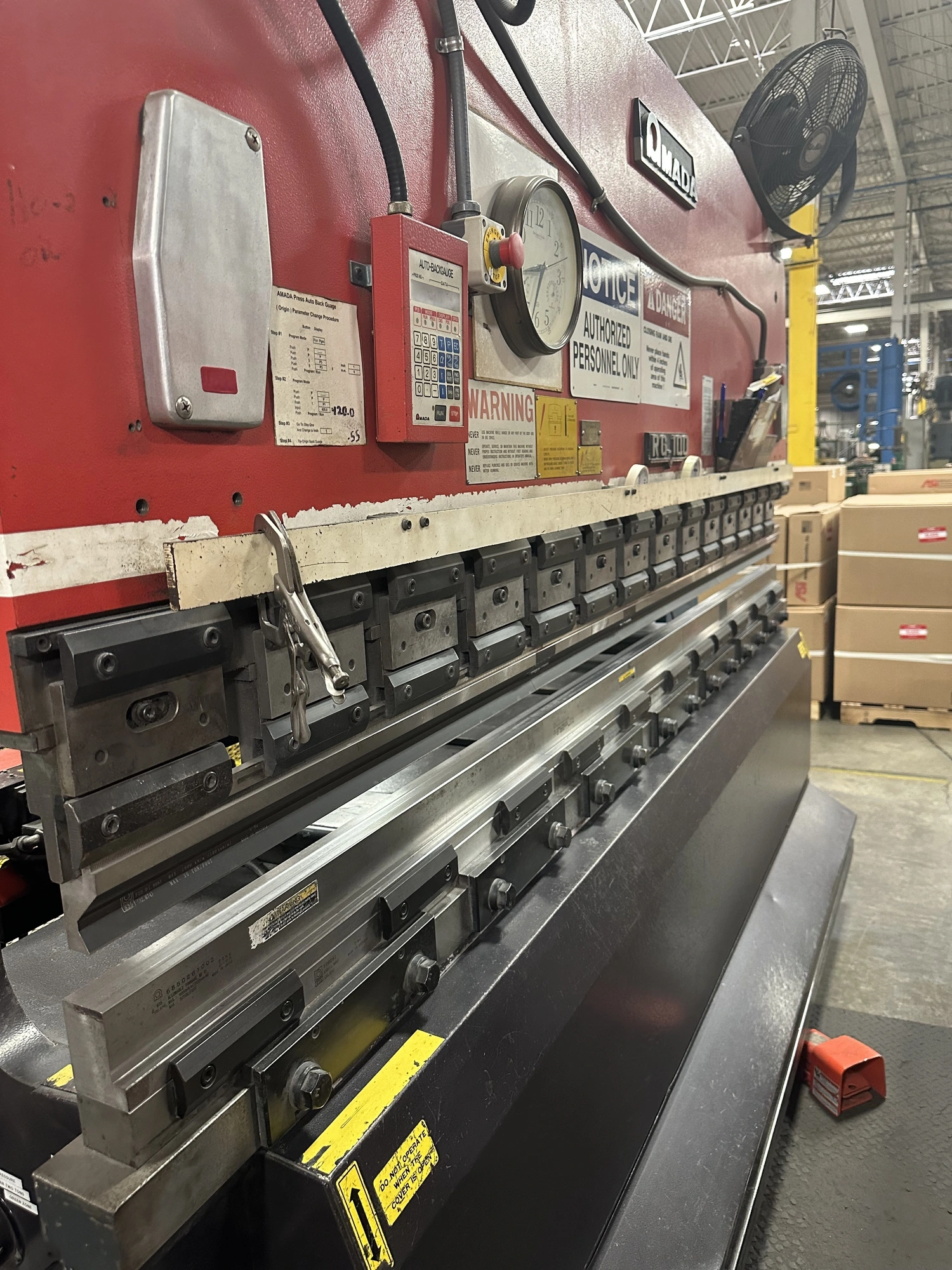

Amada Model RG-100 Up-Acting Hydraulic Press Brake
Nominal Rated Capacity: 100 Tons
Overall length of bed and ram: 118.2"
Max Bending Length: 122.1"
Distance between Housings: 100.5"
Depth of throat: 15.7"
Open height: 14.5"
Length of stroke: 0" to 3.94" (adjustable)
Rising Speed: 139 IPM
Bending: 123 IPM
Lowering: 122 IPM
Main Motor Drive: 10 HP
Max Pressure: 4800 PSI
Current Electrical Arrangement: 460/3/60
