USED 2021 SUPERTEC G25P-50CNC

Fanuc Oi-TF CNC Control

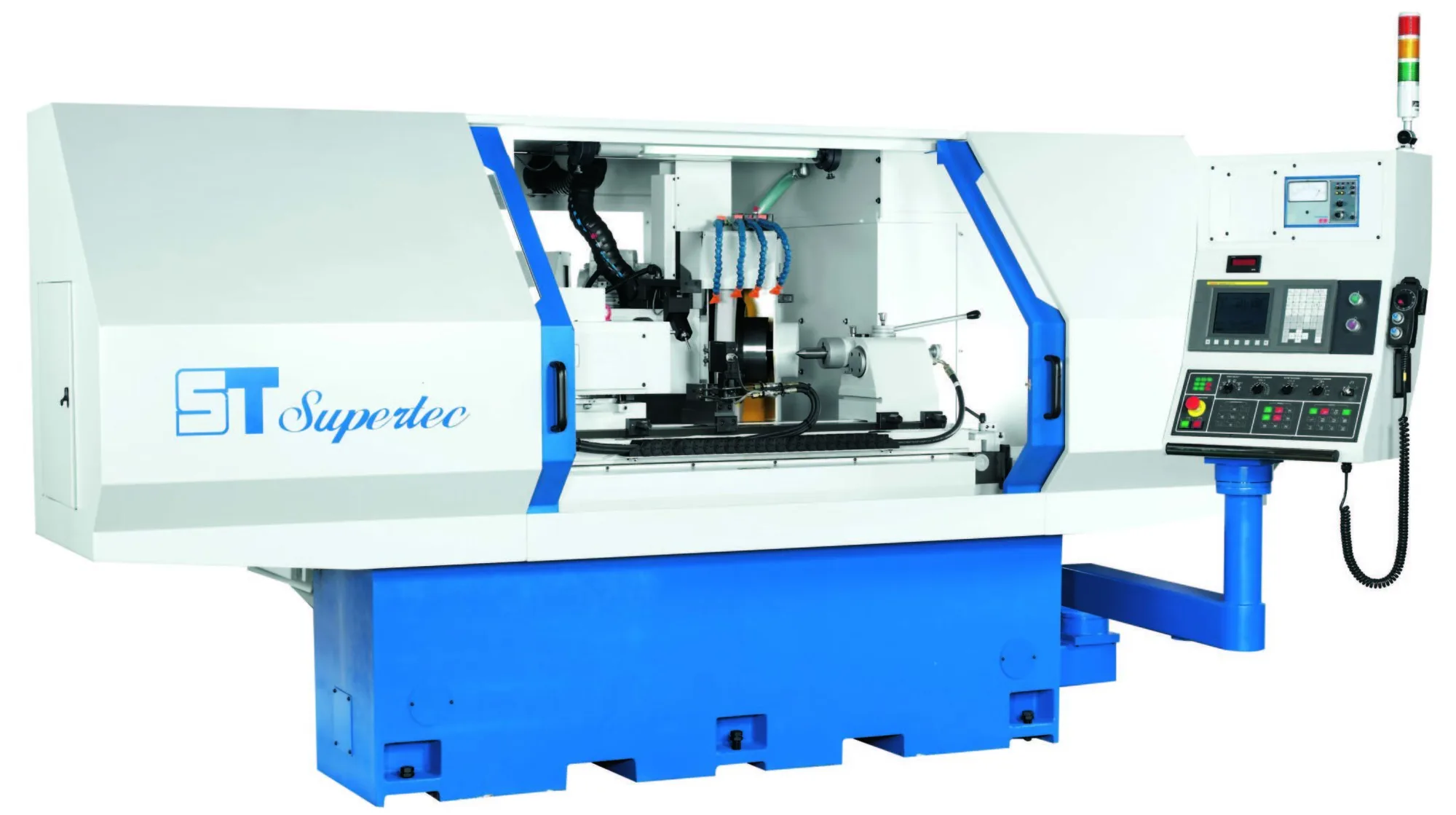

Supertec G25P-50 CNC Cylindrical Grinder (2021)

CATALOG SPECIFICATIONS:

Swing Over Table: 10"
Distance Between Centers: 20"
Max Grinding Diameter: 9"
Max Load Between Centers: 176lbs
Diameter x width x bore: 16" x 2" x 5"
Wheel Speed: 1650 RPM
Max Peripheral Speed: 118 ft/sec
Sliding Angle: 90 degrees
Automatic Rapid Traverse: 236 IPM
Infeed Travel: 6.3"
Least Input Increment: 0.000040"
Tailstock Quill Travel: 1" Tailstock Taper: MT#3
Spindle Speed: 500 RPM
Swiveling Angle (C.C.W.): 7 degrees
Rapid Feederate: 0-315 IPM
Lead Input Increment: 0.000040"
Wheel Spindle Motor: 5 HP
Workhead Motor: 1/2 HP
Hydraulic Pump: 1 HP
Lubrication Pump: 1/4 HP
Coolant Pump: 1/8 HP
Wheelhead Motor: 1.2 KW
Table Motor: 1.2 KW

Fanuc Oi-TF CNC Control
Full Enclosure
Lateral Locater (Shoulder) Gauge
Chiller
Mist Collector
Coolant System w/Mag. Sep & Paper Filter
HOURS
POWER ON: 3,662
RUN: 672
CUT: 1,055
