20" 3 Jaw Chuck, Taper Attachment, Steady Rests
| Swing | 15" | 381 mm |
| Centers | 40" | 1,016 mm |
| Power | 2 hp | 1.5 kW |

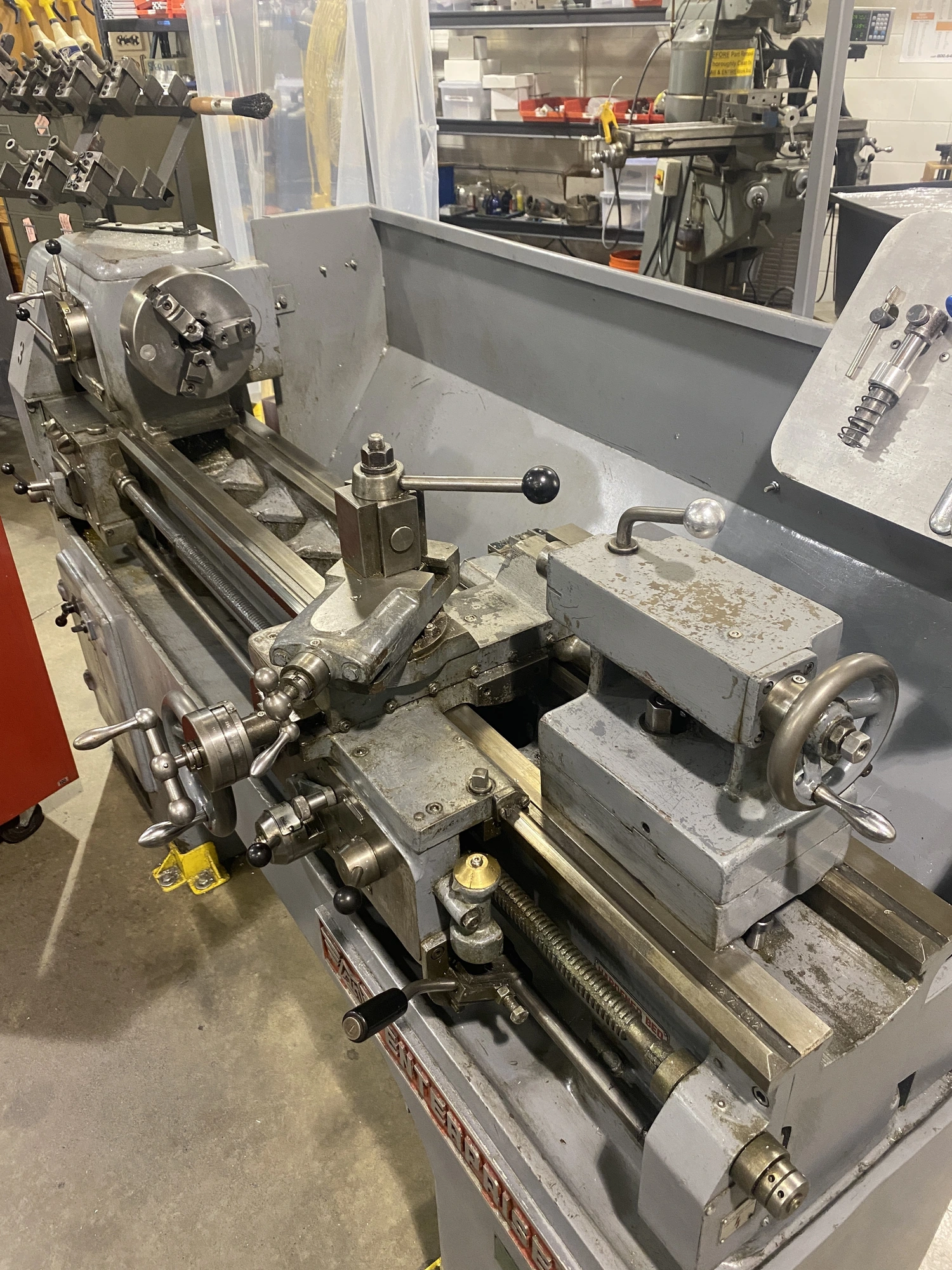

Enterprise Model EL-2 15" X 40" Engine Lathe
Swing: 15"
Centers: 40"
1-1/2" Spindle Bore
#3MT Tailstock
8" Rohm 3 Jaw Chuck
9-3/4" Rohm 4 Jaw Chuck
D1-4 Camlock Spindle Nose
Steady Rest
Aloris Quick Change Toolpost
16 Spindle Speeds 45-1250
Micrometer Carriage Stop
In/mm Threading
(11) .5 - 6 TP mm
(34) 4-60 TPI
Thread Dial
Overall size 28" front to back x79" long x 50" tall
Approx. 3000 lb
20" 3 Jaw Chuck, Taper Attachment, Steady Rests, In/mm Threading, In/mm Threading
