| size | 16" X 12" X 10" | 16" X 12" X 10" |
| X Travel | 16" | 406.4 mm |
| Y Travel | 12" | 304.8 mm |
| Z Travel | 10" | 254 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 10 | 10 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 12" | 304.8 mm |
| Table-L | 36" | 914.4 mm |

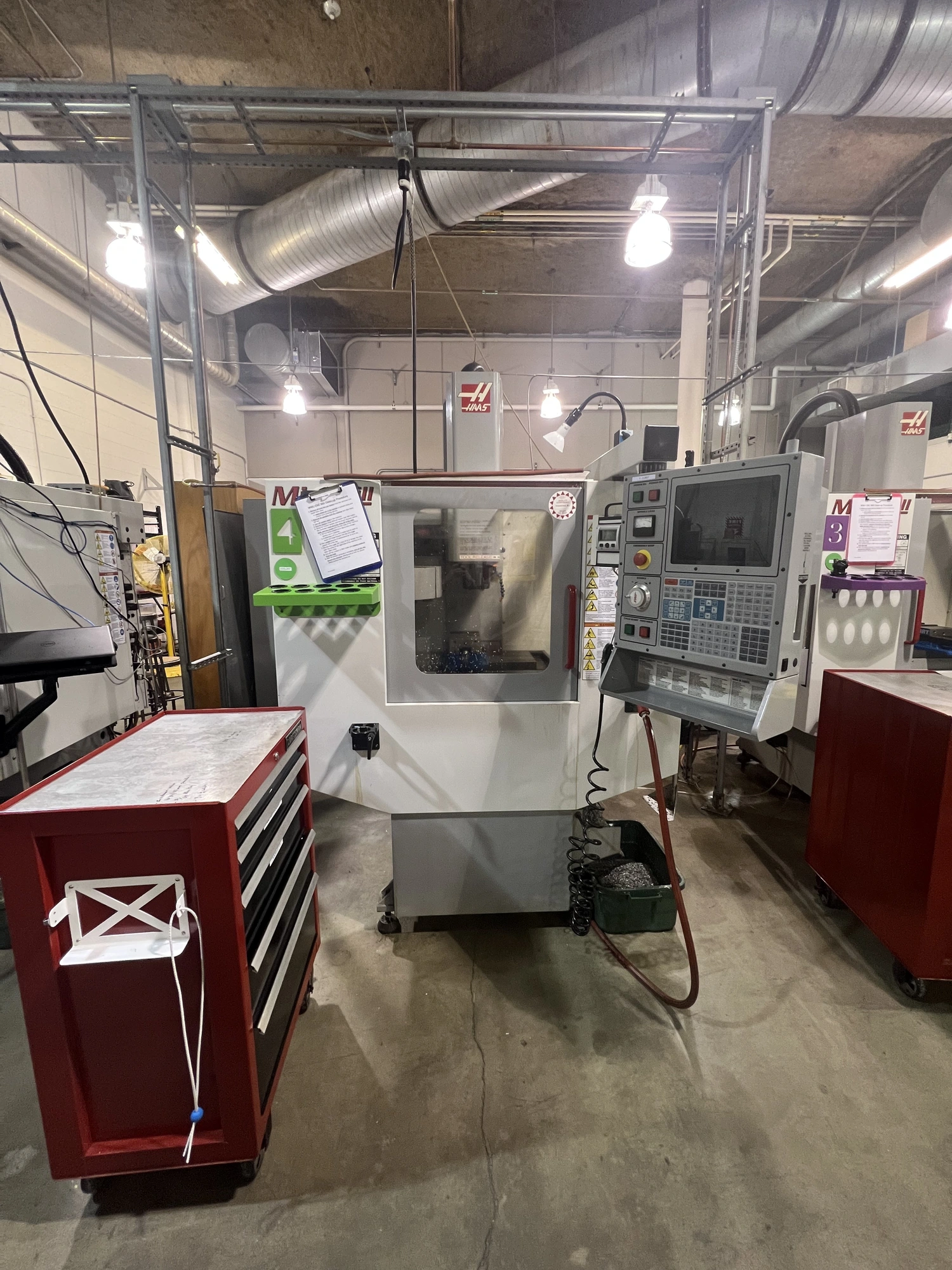

16" X 12" X 10" Haas Mini-Mill Vertical Machining Center (2001)
Table area: 28.75" X 12"
Maximum weight on table: 500 Pounds
X-Axis travel: 16"
Y-Axis travel: 12"
Z-Axis travel: 10"
Rapid traverse to all axes: 600 IPM
Distance, spindle nose to table: 4.0" (min.) to 14.0" (max.)
Taper in spindle: No.40 CAT
