| X Travel | 16" | 406.4 mm |
| Y Travel | 12" | 304.8 mm |
| Z Travel | 10" | 254 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 10 | 10 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 12" | 304.8 mm |
| Table-L | 36" | 914.4 mm |
size 16" x 12"
X Travel 16"
Y Travel 12"
Z Travel 10"
Power 7.5 hp
RPM 6,000 RPM
# ATC 10
Taper 40
Table-W 12"
Table-L 36"
# Axis 3
Control CNC (Haas)
Weight 4500

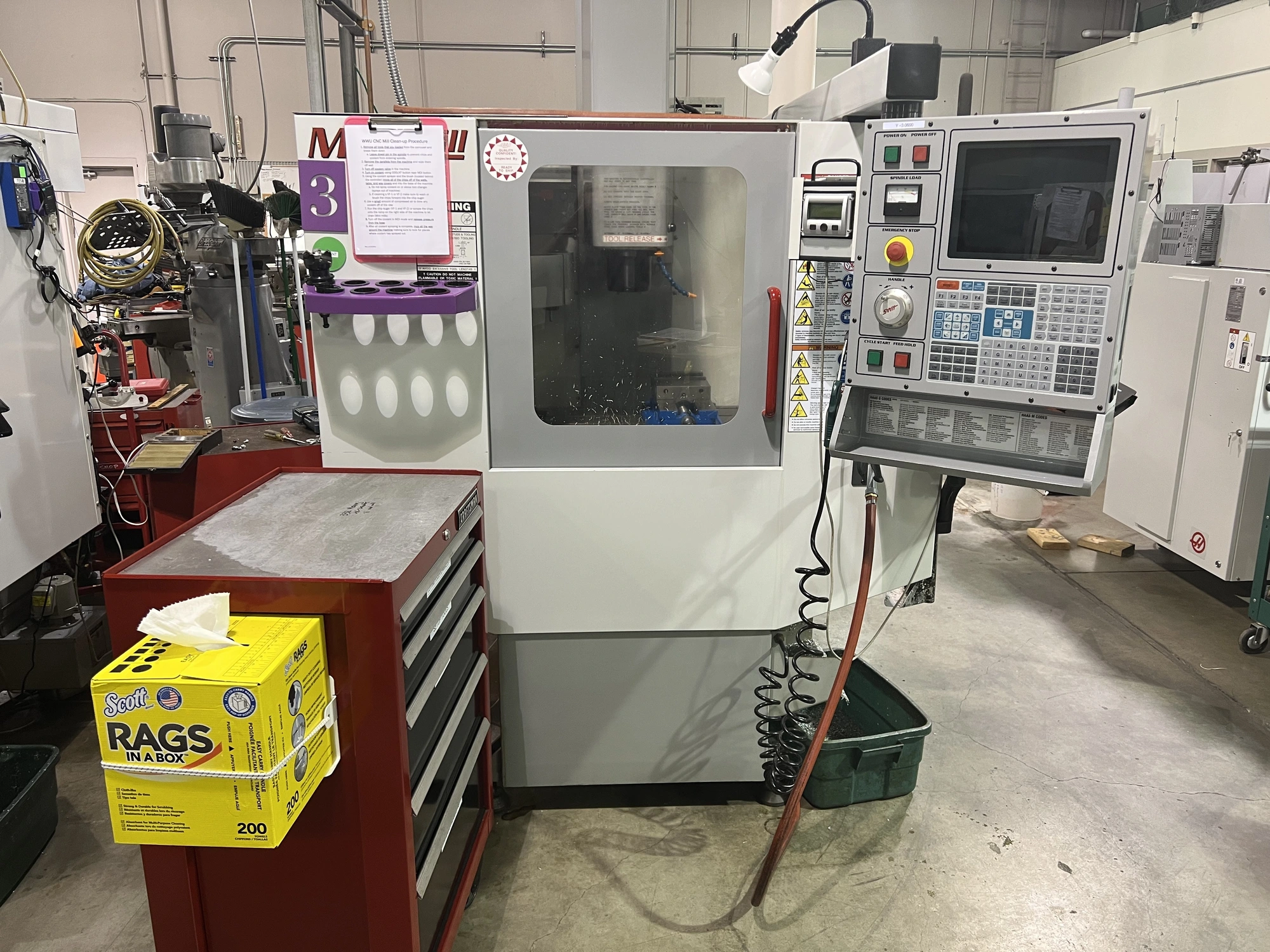

Haas Mini Mill CNC Vertical Machining Center
Specifications:
Table Size 12" x 36"
Travels: X-Axis 16"
Y-Axis 12"
Z-Axis 10"
Spindle Nose to Table Top 4" to 14"
Spindle Speeds Up to 6,000 Rpm
Spindle Taper Cat #40
Main Motor 7.5 Hp
Tool Changer 10 Atc
Rapid Traverse Rates 600 Ipm
Weight, Approx. 4,500 Lbs.
