New Bodor T3 Tube Laser Cutting Machine, maximum tube length options: 255" or 362", laser power options: 6kW/3kW, round and square tube size range: .098"-14.01", rectangular tube side length 14.01≥side length≥0.98, 5 Year Warranty
| Wattage | 3kW or 6kW | 6,000 W |
| Capacity 1st Dim | max. tube length 255"(362") | max. tube length 255"(362") |
| Capacity 2nd Dim | .98-14.01 round & square tube size | .98-14.01 round & square tube size |

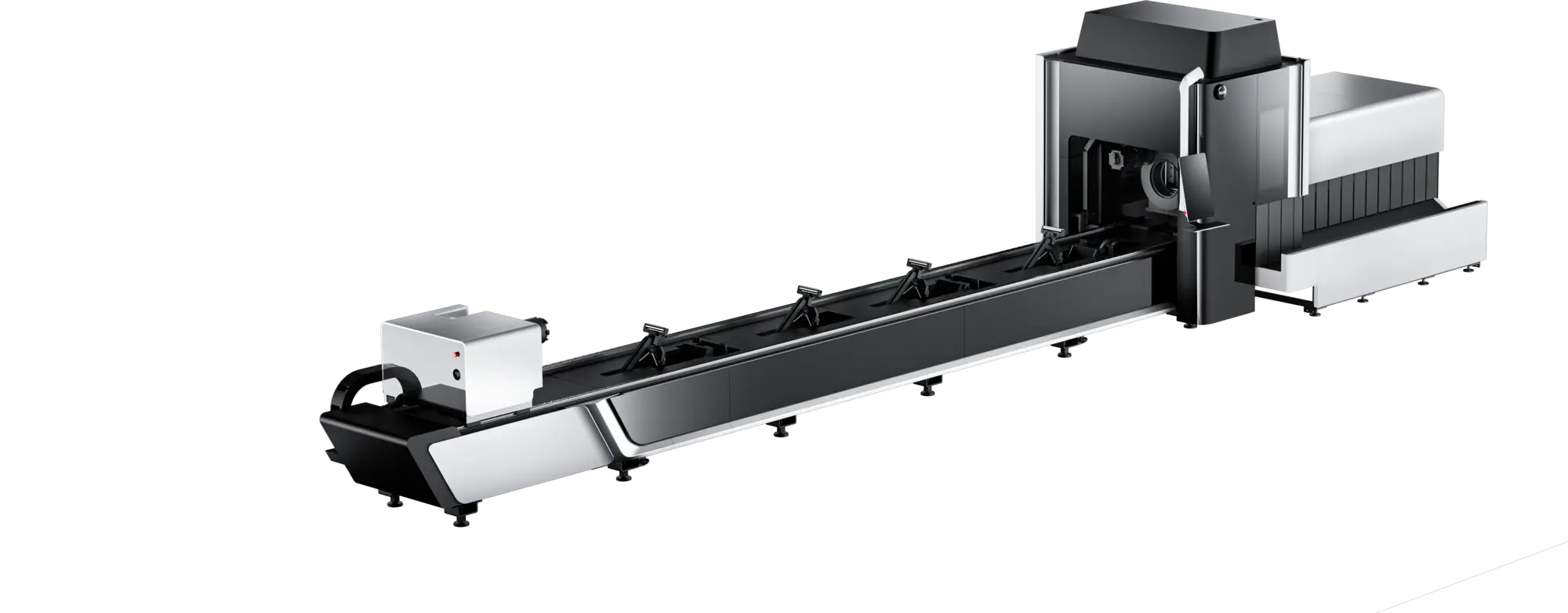

NEW BODOR T3 TUBE LASER CUTTING MACHINE
All-around fiber laser metal tube cutting machine
Multiple function options help the laser tube cutting machine be used
in numerous tube cutting processes.
Effective Tube Cutting Length Options: 255" or 362" (6500mm/9200mm)
Laser Output Power: 3kW / 6kW
Effective Round Tube Cutting Diameter: 25-356mm
Effective Square Tube Cutting Diameter: 25*25 - 356*356mm
Rectangular Tube Edge Length: 25-356mm
X/Y-axis positioning accuracy: 0.05mm/m
X/Y-axis repositioning accuracy: 0.03mm
X axis maximum speed: 100m/min
Y axis maximum speed: 90m/min
5 Year Warranty
Installation, Delivery, and Training Included with Price
Expert High Speed Cutting Database
Gas-saving Nozzle with Steady Flow
Bodor Lightning
Angle Steel and Channel Steel Cutting
Four-side Edge Searching, Higher Precision
Specialized Laser Head BodorGenius T
Pneumatic Chuck
BodorThinker Software
BodorMES
BodorNest Tube
