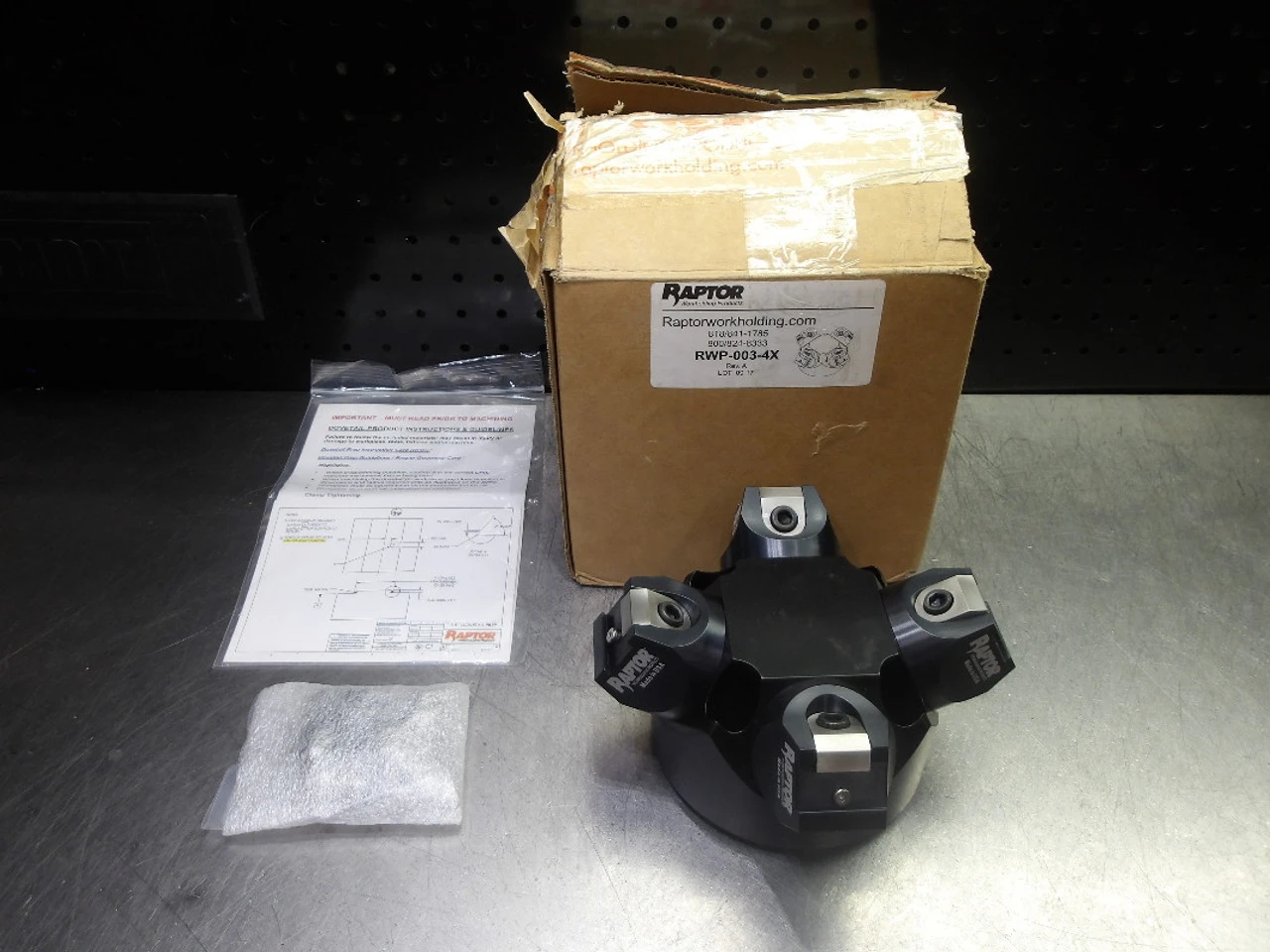

Raptor 3.8" (.75") 4 Work Piece Aluminum Dovetail Fixture RWP-003-4X (LOC2237)
Overview
3.8" 4 Work Piece Aluminum Dove Tail Machine
Min Workpiece Size (L x W x H in.) 1.30 x 1.30 x 0.50
Max Workpiece Size (L x W x H in.) 3.00 x 3.00 x 3.00
Max Workpiece Weight lb. 3.00
Compatible With RWP-003
Dovetail Width in. 0.750
Fixture Swing Diameter 7.135
Fixture Height in. 3.327
Fixture Diameter in. 4.970
Bolt Circle Diameter in. 3.800
Recommended Cutter RWP-DC403U, RWP-DC404C, RWP-DC407C, RWP-DC408C
Boss in. 1.250 Dia x 0.25 Boss
7075-T6511 Aluminum 0.75â³ Dovetail Multi-Fixture

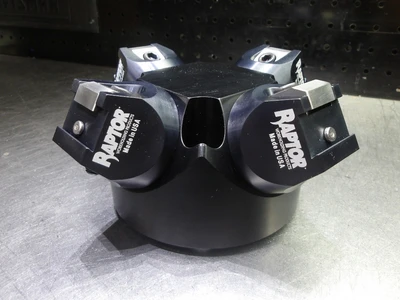

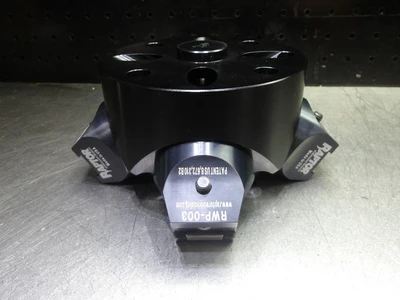

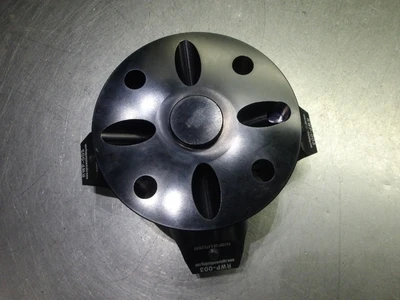

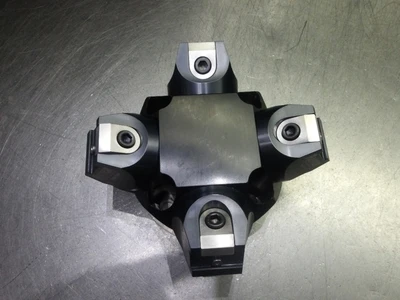

The Pyramid body utilizes four RWP-003 dovetail fixtures. This fixture is designed specifically for five-axis machining applications and allows you to hold four workpieces at the same time. This fixture mounts to Raptor risers with Raptor Interface mounting.
The Pyramid Body is manufactured from 7075-T6511 aluminum.
Specs
Radius: 818/841-1785 / 800/824-8333
Material: Aluminum
Shank Capacity: 3/4"
MPN: RWP-003-4X
