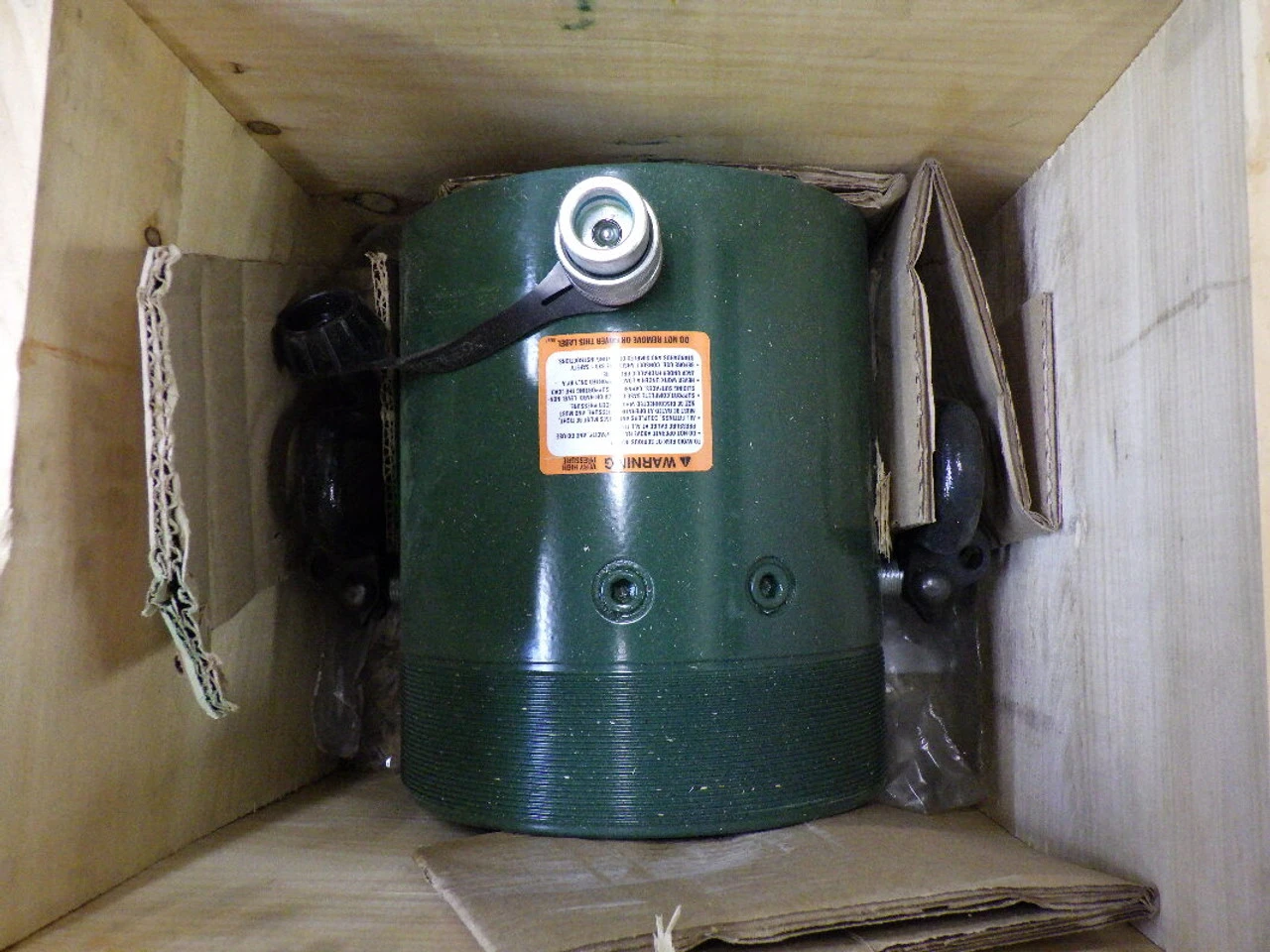

Simplex 100 Ton 3" Single-Acting Center Hole Hydraulic Cylinder RC1003A (STK)

100 Ton 3" Single-Acting Center Hole Hydraulic Cylinder
Maximum Operating Pressure (psi)
10,000
Capacity Class (tonnage)
100
Capacity (imperial tons)
100
Stroke (in)
3.00
Collapsed Height A (in)
10
Extended Height B (in)
13
Return Type
Single-Acting, Spring Return
Plunger Type
Center Hole
Material
Steel
Cylinder Effective Area (in2)
20.60
Oil Capacity Required (in3)
62.00
Pressure at Capacity (psi)
9694
Bolt Circle (in)
7.00
Thread (in)
5/8 - 11 UNC
Thread Depth (in)
0.75
Weight (lbs)
132.0

Material: Steel
MPN: RC1003A
