6 Station Pallet, Fanuc 18iM
| size | 15.7" x 15.7" | 15.7" x 15.7" |
| X | 23.6" | 599.44 mm |
| Y | 24" | 609.6 mm |
| Z | 26.2" | 665.48 mm |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 120 | 120 |
| Taper | BT-40 | BT-40 |
| Pallet-W | 500" | 12,700 mm |
| Pallet-L | 500" | 12,700 mm |
| Control | CNC (Fanuc 18i-M) | CNC (Fanuc 18i-M) |

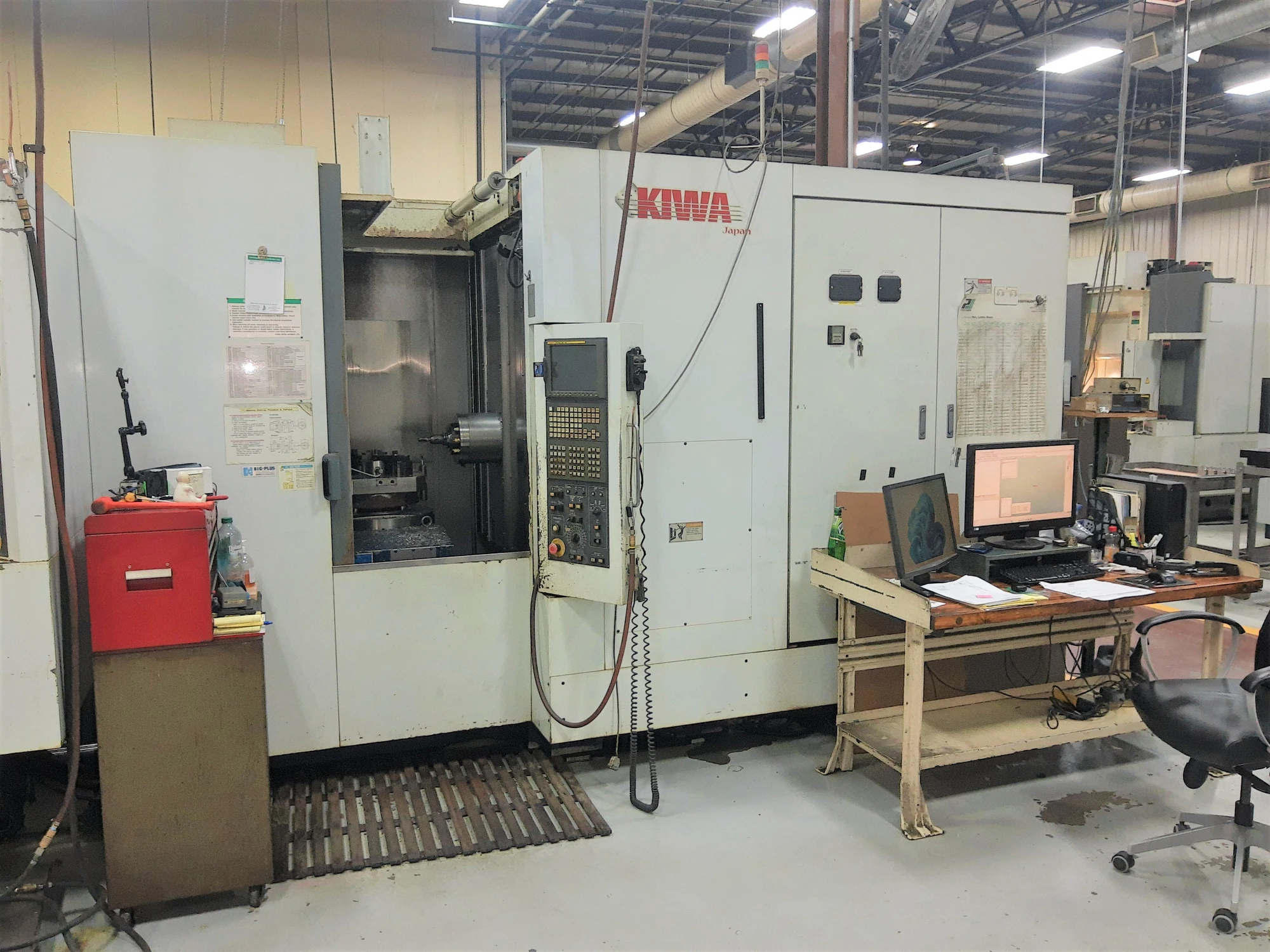

Kiwa KNH-426X with 6 Station Pallet Changer Horizontal Machining Center
Pallet Size 19.68″ x 19.68″
Number of Pallets 6
Maximum Weight 881 lbs.
Workpiece Diameter 24.02″
Workpiece Height 32.0″
Spindle to Pallet Center 5.9″ – 32.09″
Spindle to Pallet Surface 3.15″ – 27.27″
X Axis Travel 23.62″ (600 mm)
Y Axis Travel 24.02″ (610 mm)
Z Axis Travel 26.18″ (665 mm)
B-Axis (.001⁰Increment) Full Rotary (Standard)
Rapid Traverse 2,362 IPM
Spindlel Speed 12,000 RPM
Spindle Motor 35 HP
Spindle Taper 40 Taper
Magazine Capacity 120
Tool Change Time 1.2 Seconds
Chip to Chip Time 4.0 Seconds 3.6 Seconds
Maximum Tool Weight 18 lbs.
Maximum Tool Diameter (Adj Empty) 7.87″
Maximum Tool Length 14.17″
Fanuc Series 18iMB CNC Control
120 ATC
6 Pallet
High Pressure Coolant
